Liftgate Lock Fails to Lock/Unlock

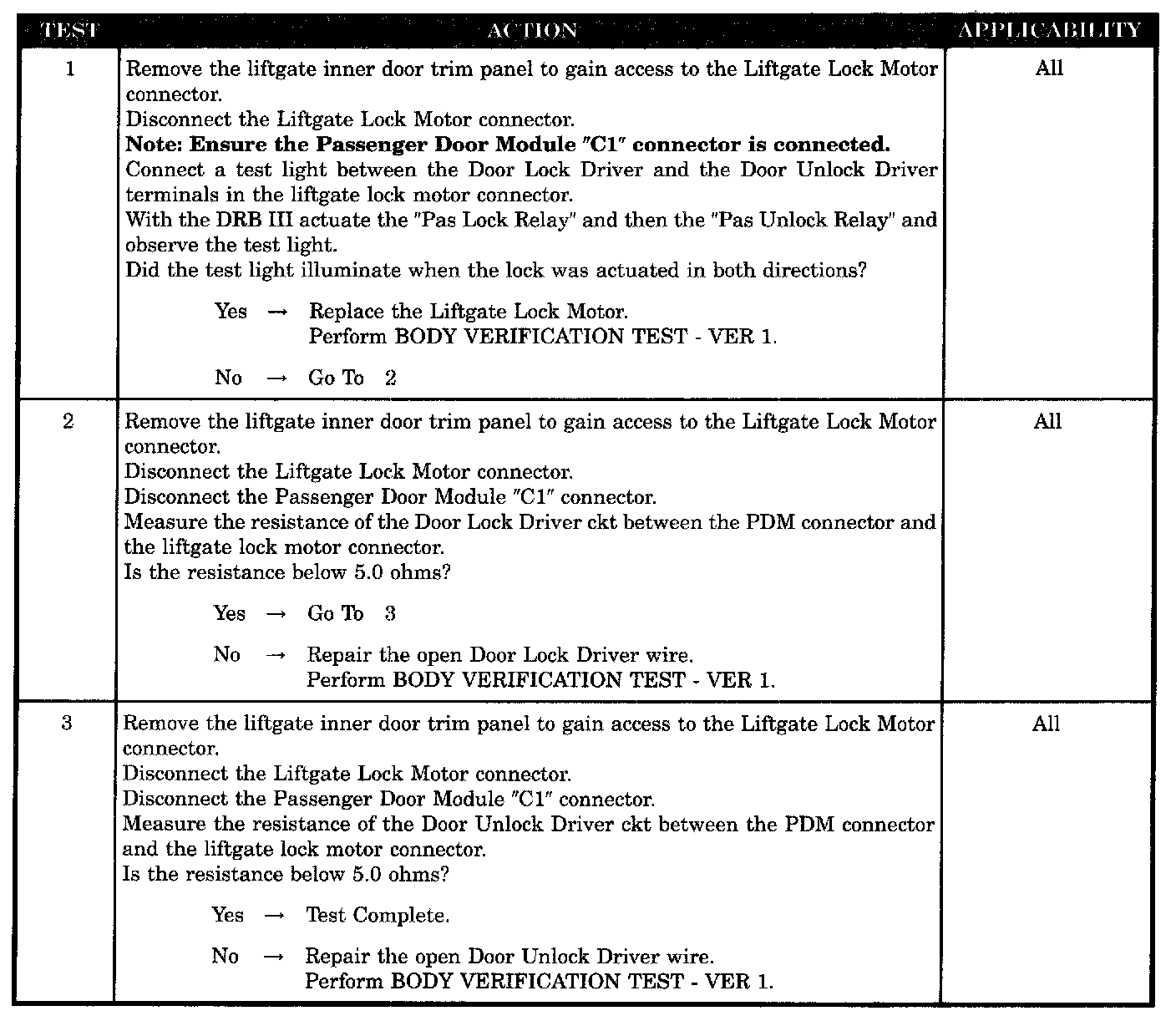

Test 1 - 3:
SYMPTOM
LIFTGATE LOCK FAILS TO LOCK/UNLOCK
POSSIBLE CAUSES
-
Open liftgate lock motor
-
Open door lock driver wire
-
Open door unlock driver wire
