Reading & Vanity Lamps Inoperative

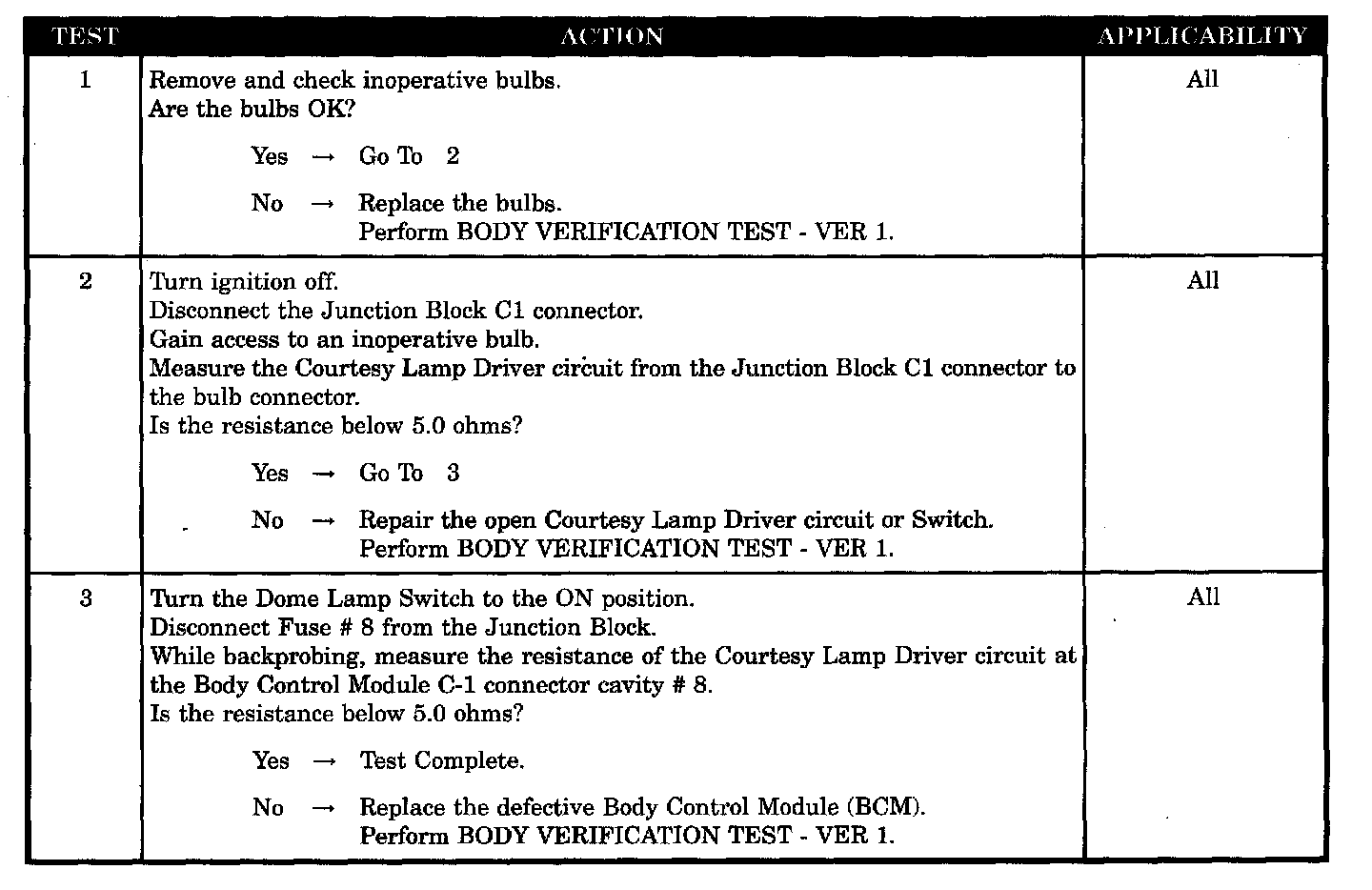

Test 1 - 3:






SYMPTOM
READING & VANITY LAMPS INOPERATIVE

POSSIBLE CAUSES
- Bulbs
- Courtesy lamp driver circuit open
- BCM, courtesy lamp driver
