HVAC Control Illumination Lamps Inoperative

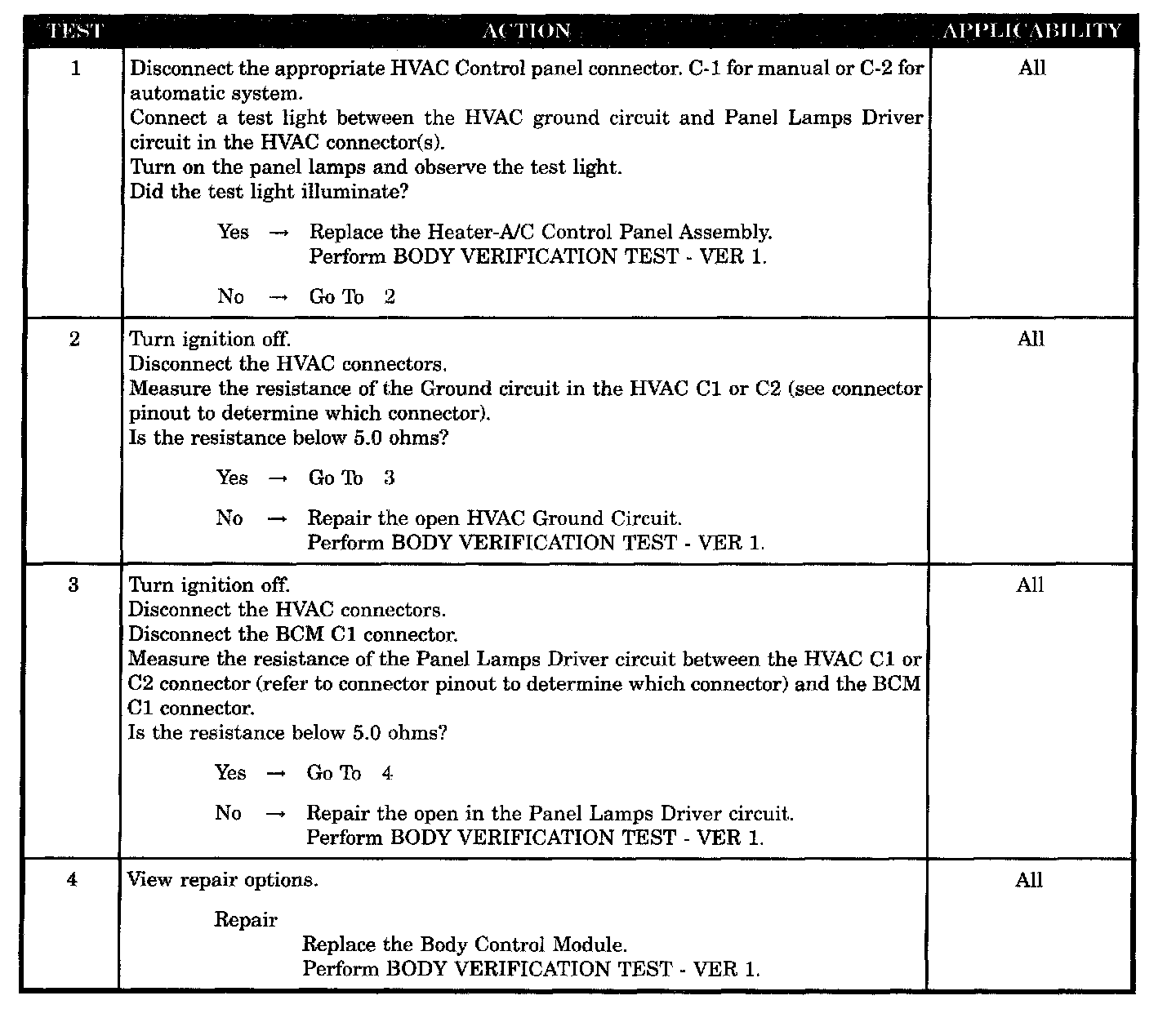

Test 1 - 4:






SYMPTOM
HVAC CONTROL ILLUMINATION LAMPS INOPERATIVE

POSSIBLE CAUSES
- HVAC control illumination inoperative
- Control head open ground circuit
- Panel lamps driver circuit open
- BCM (HVAC illumination)
