Fuse Block

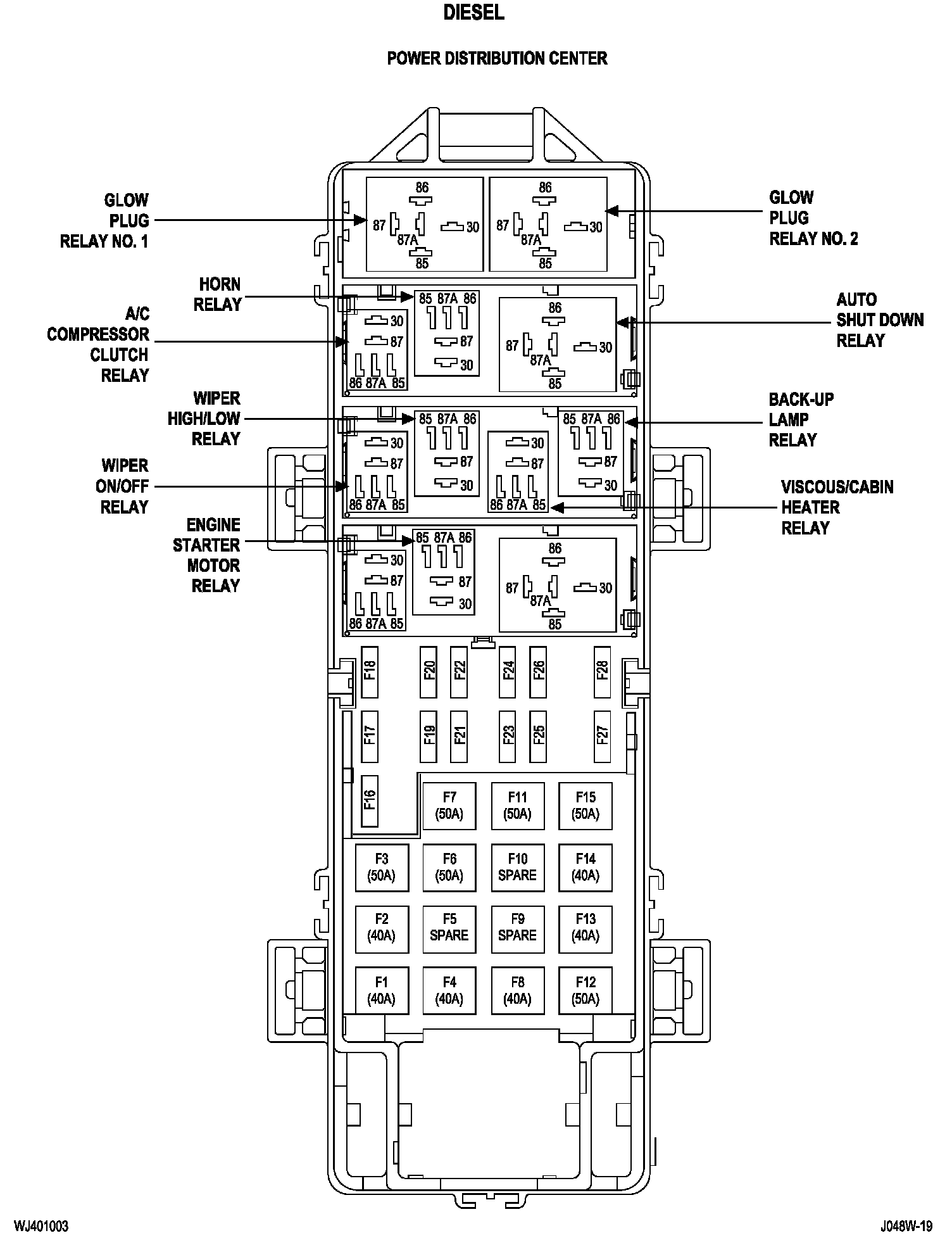

Power Distribution Center:






Junction Block C1:






Junction Block C1:

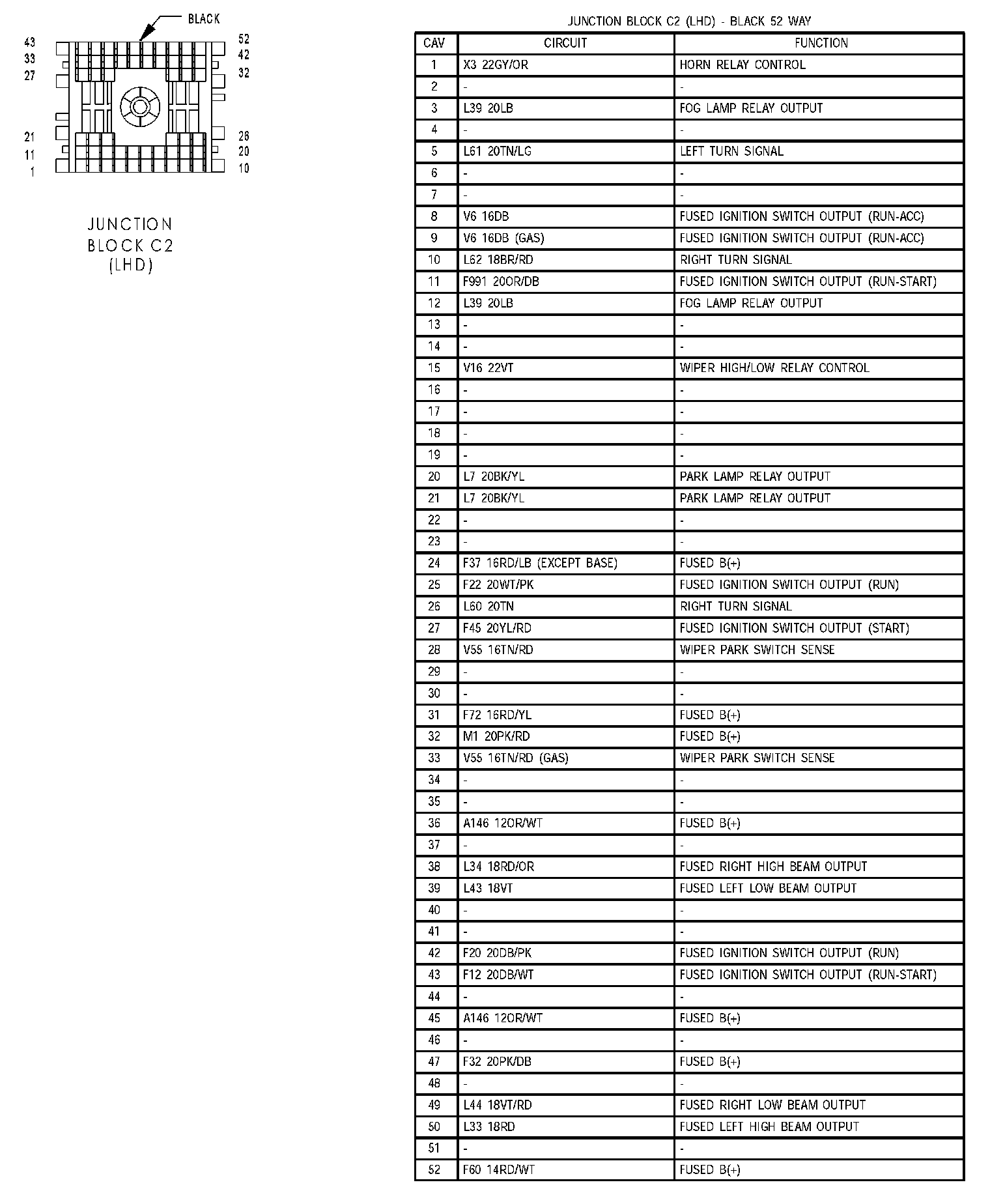

Junction Block C2 (LHD):

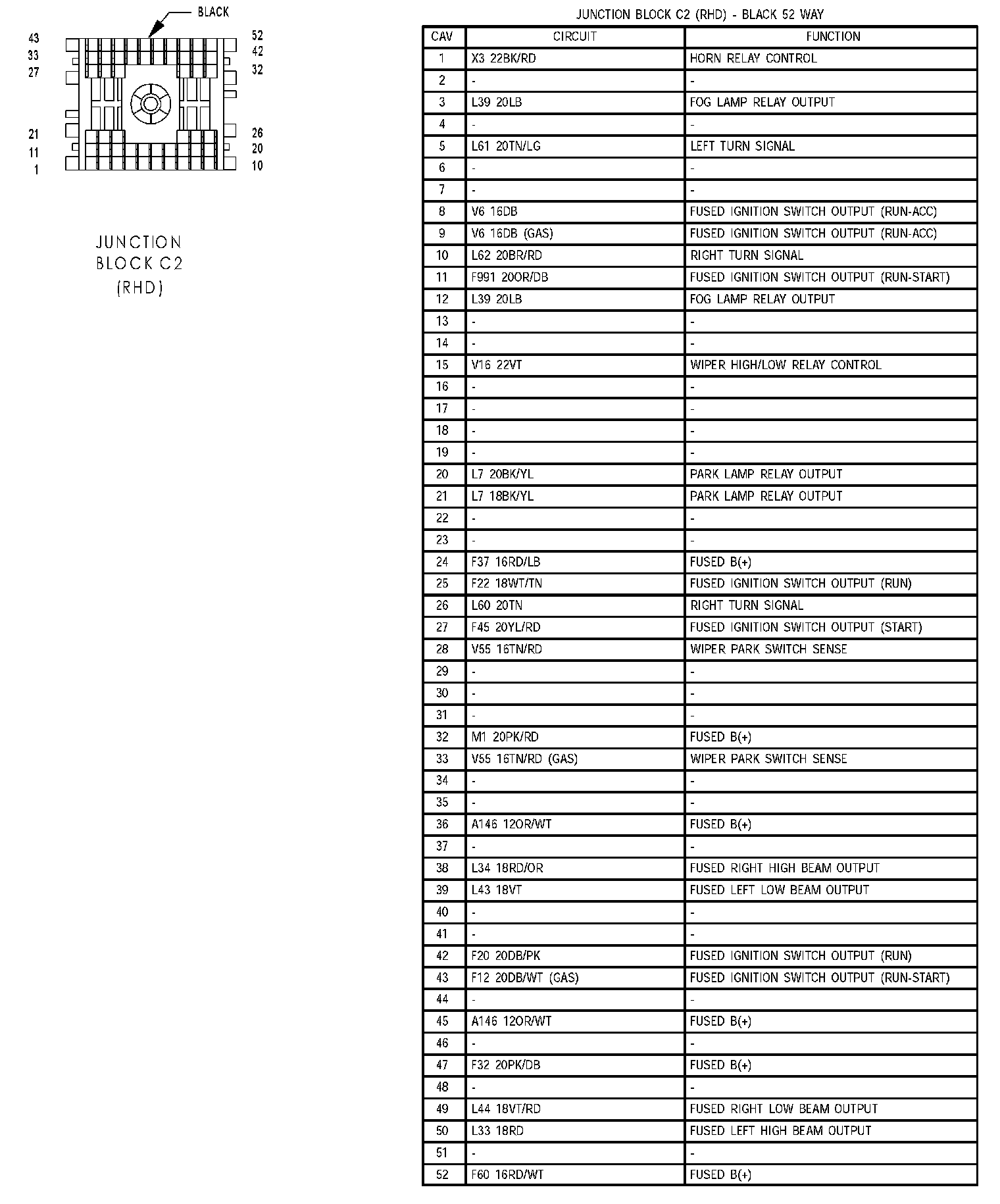

Junction Block C2 (RHD):

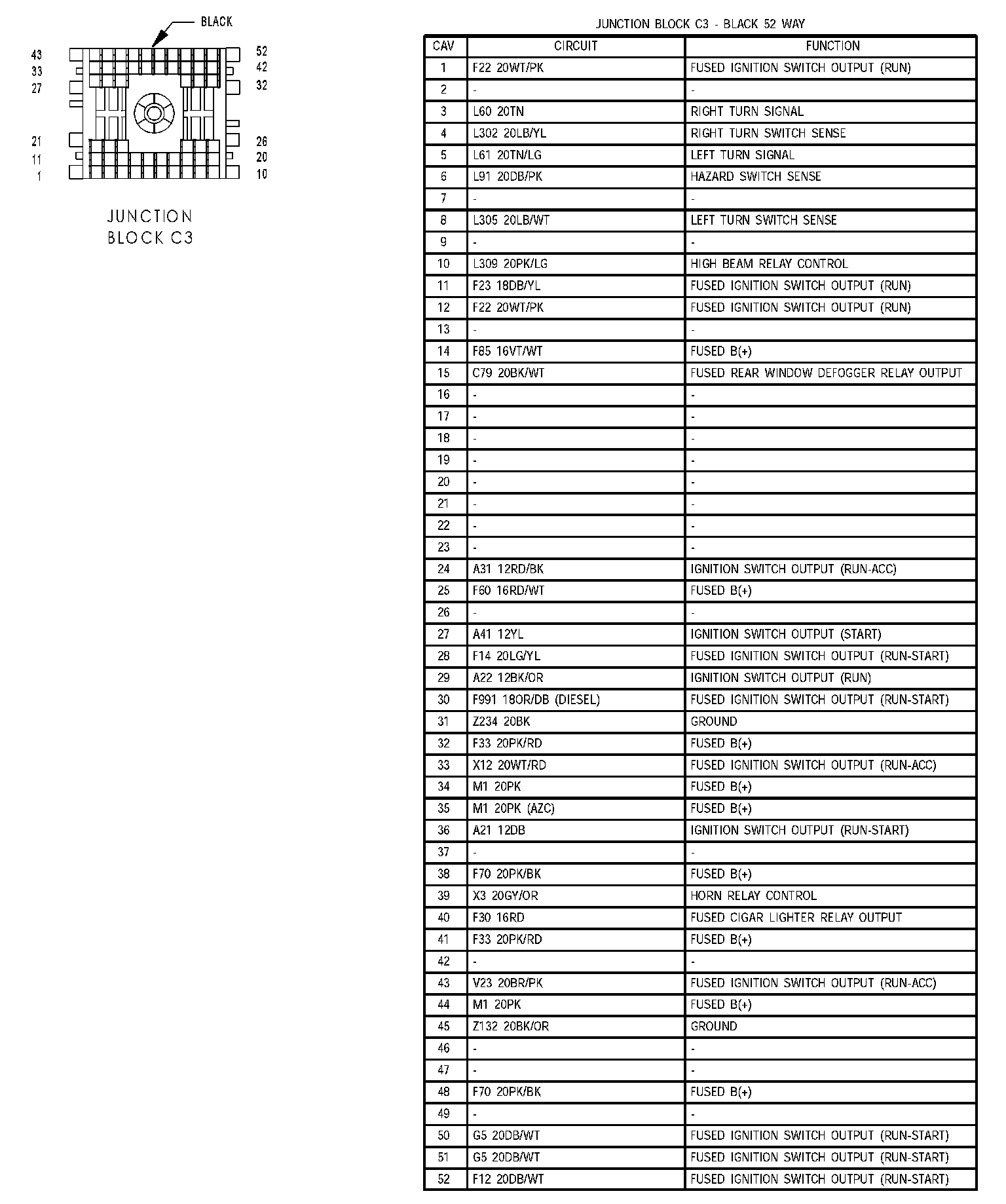

Junction Block C3:






Junction Block C4:






Junction Block C5:
