Multifunction Switch Connector End View (C1)

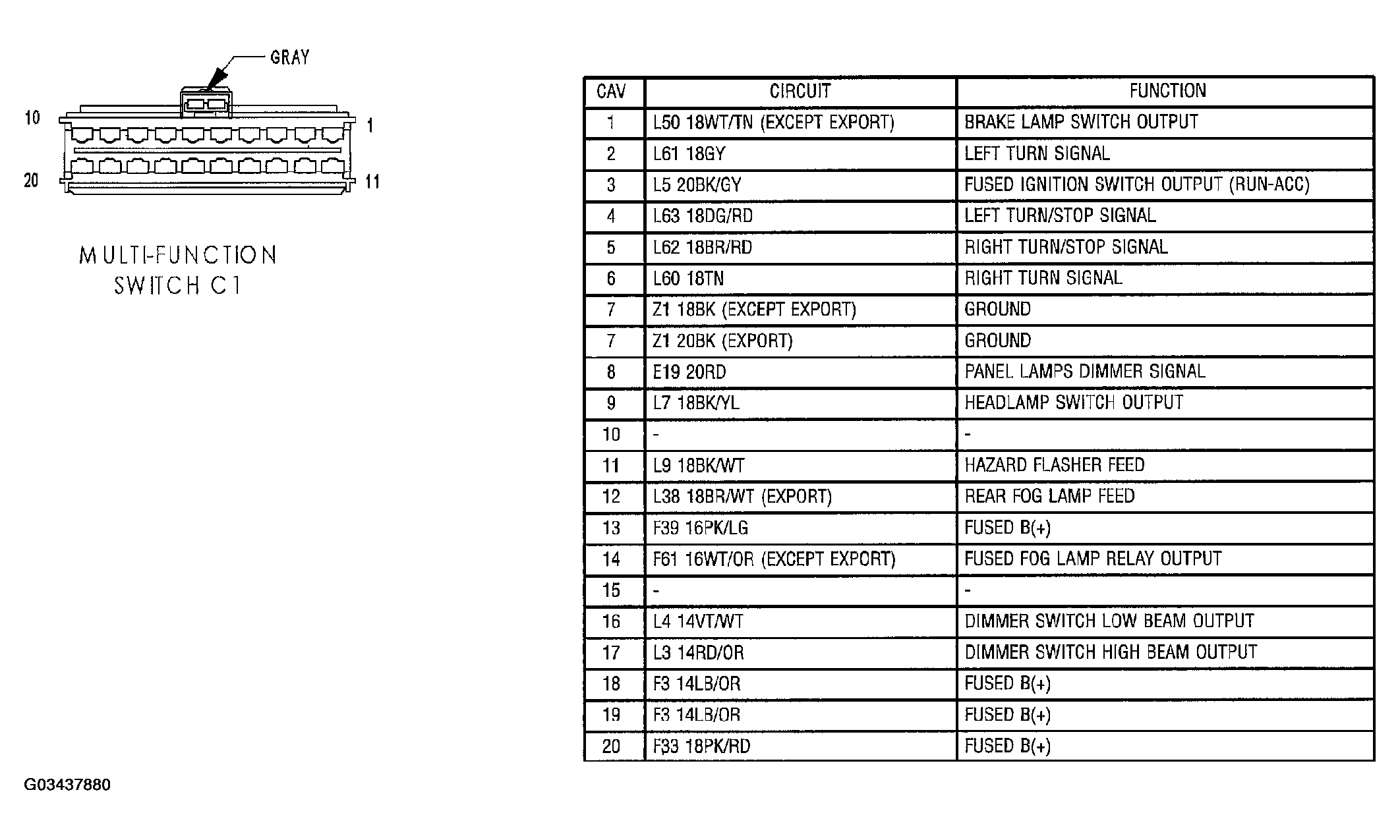

Fig 1: Multifunction Switch Connector End View (C1)
G03437880Courtesy of DAIMLERCHRYSLER CORP.
