Antilock Brake Controller Connector End View

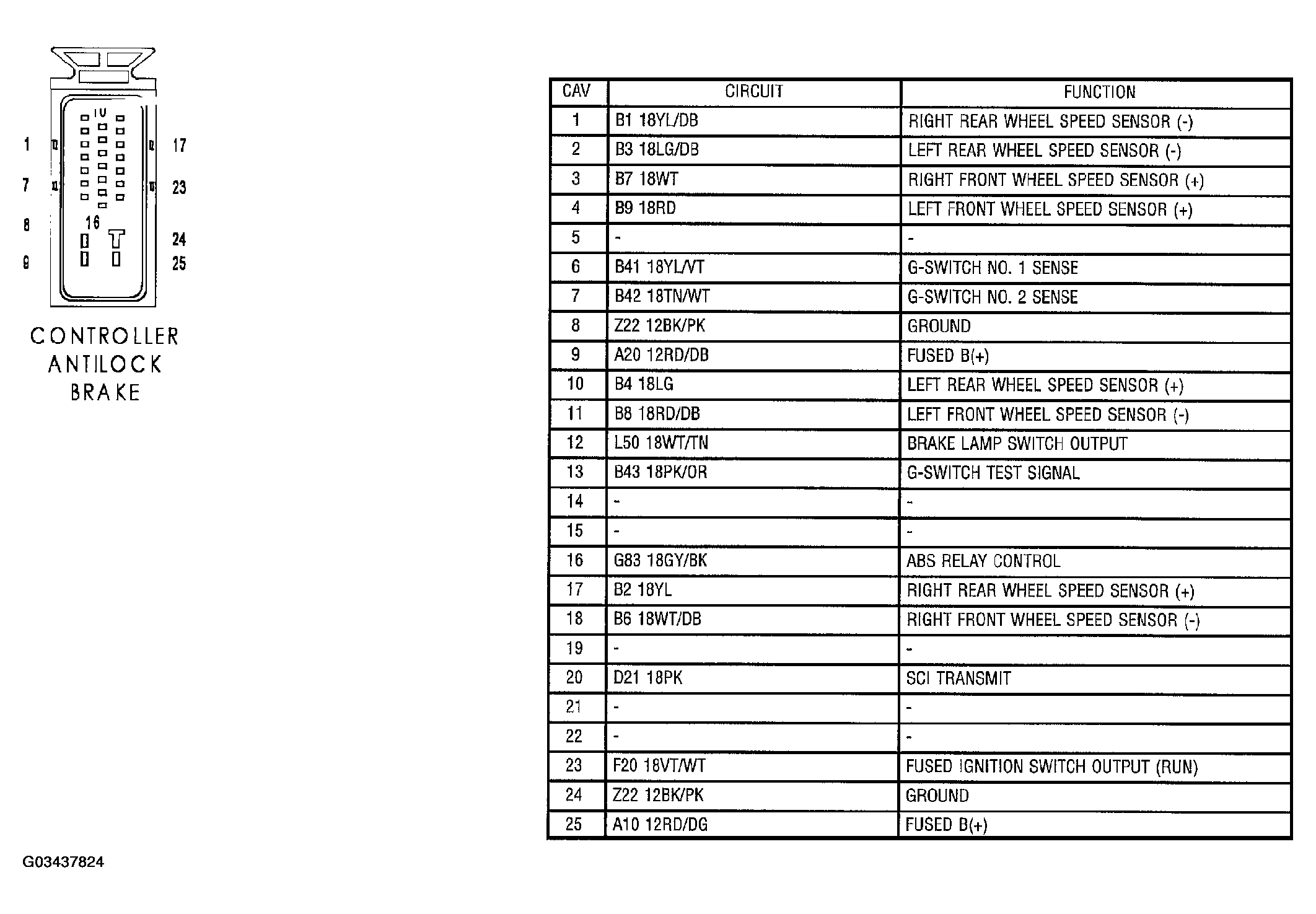

Fig 1: Antilock Brake Controller Connector End View
G03437824Courtesy of DAIMLERCHRYSLER CORP.
