Transmission Range Sensor Connector End View

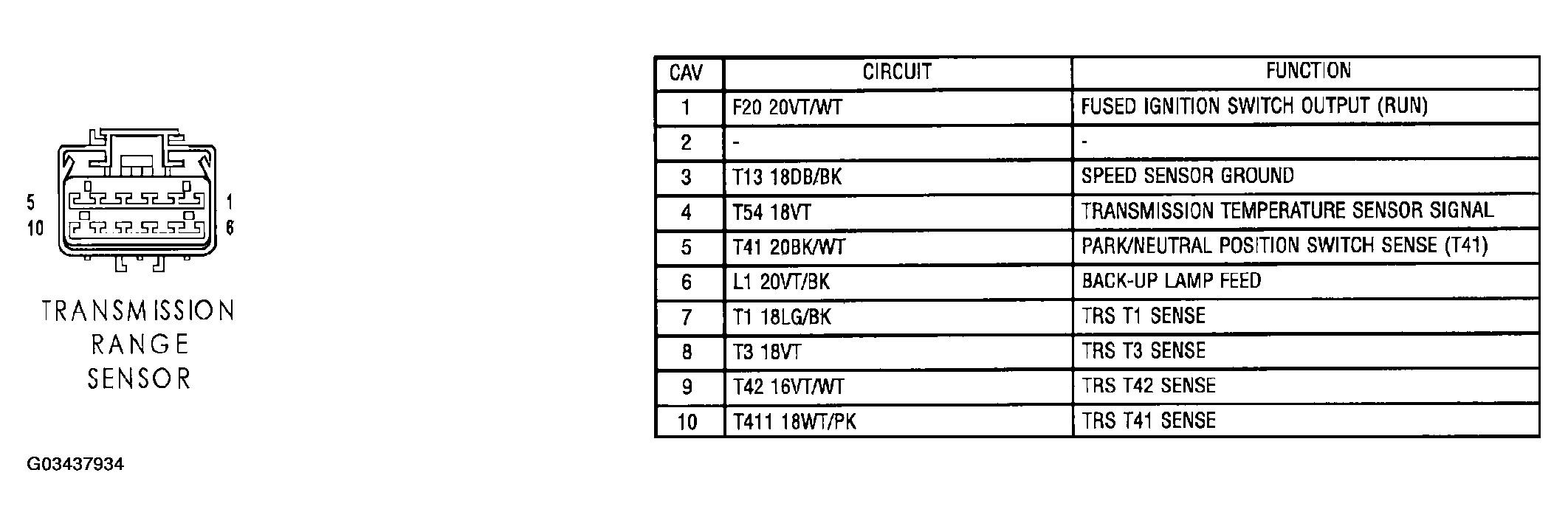

Fig 1: Transmission Range Sensor Connector End View
G03437934Courtesy of DAIMLERCHRYSLER CORP.
