PDC Relay Wedge Removal
- Remove the PDC housing lower cover.
- Remove each of the relays from the PDC relay wedge to be removed.
- From the bottom of the PDC housing, use a small screwdriver or a terminal pick tool (Special Tool Kit 6680) to release the two latches (yellow) that secure the relay wedge to the PDC relay cassette.

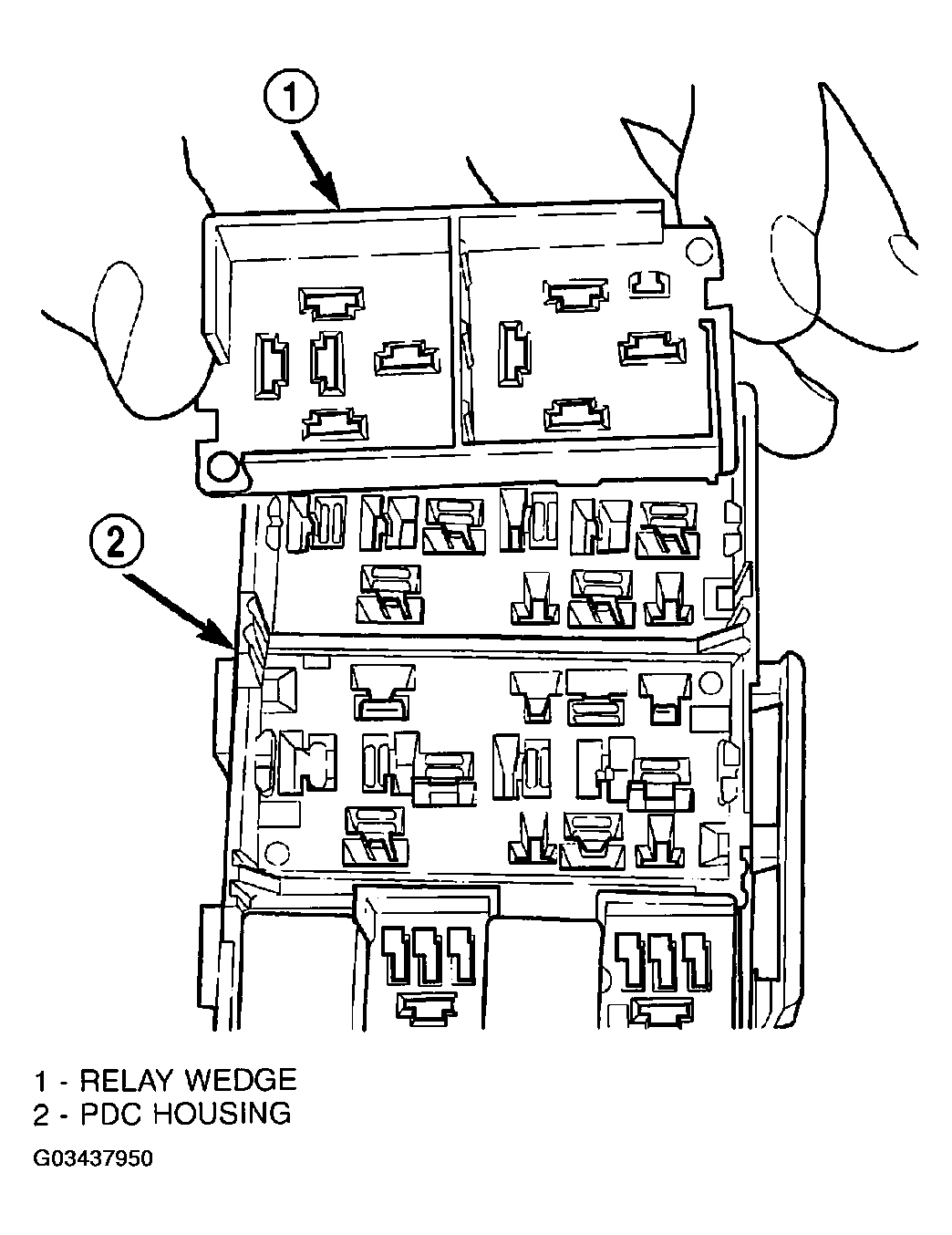

- From the top of the PDC housing, remove the relay wedge from the PDC relay cassette (Figure).
