Compass/Temperature Mirror
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Compass/Temperature Mirror

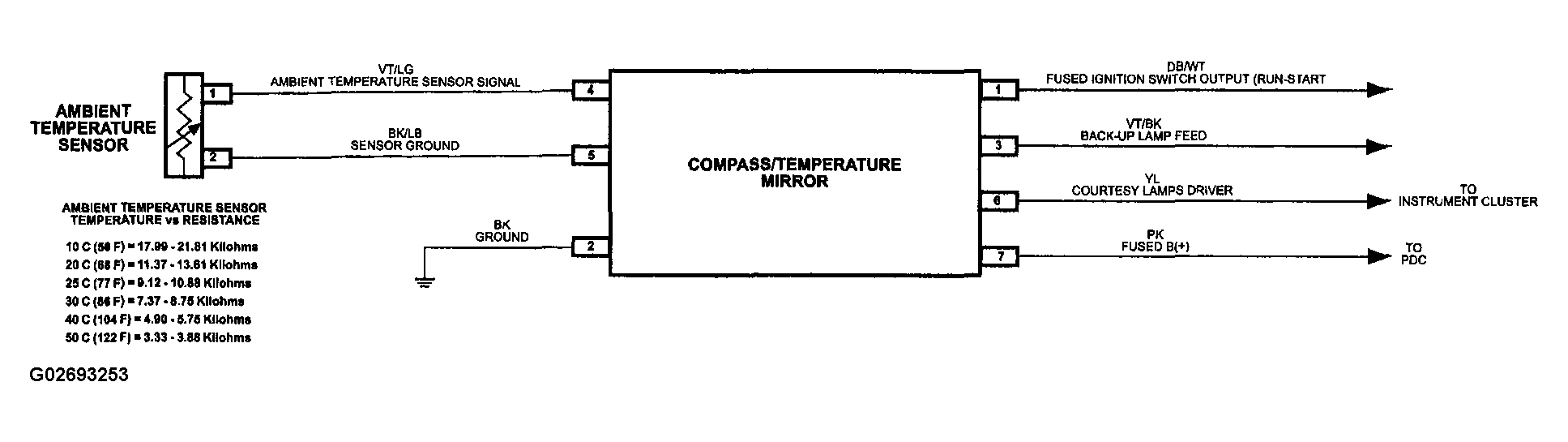

Fig 1: Compass/Temperature Mirror Schematic Diagram
Courtesy of DAIMLERCHRYSLER CORP.
