Heat Shields: Installation

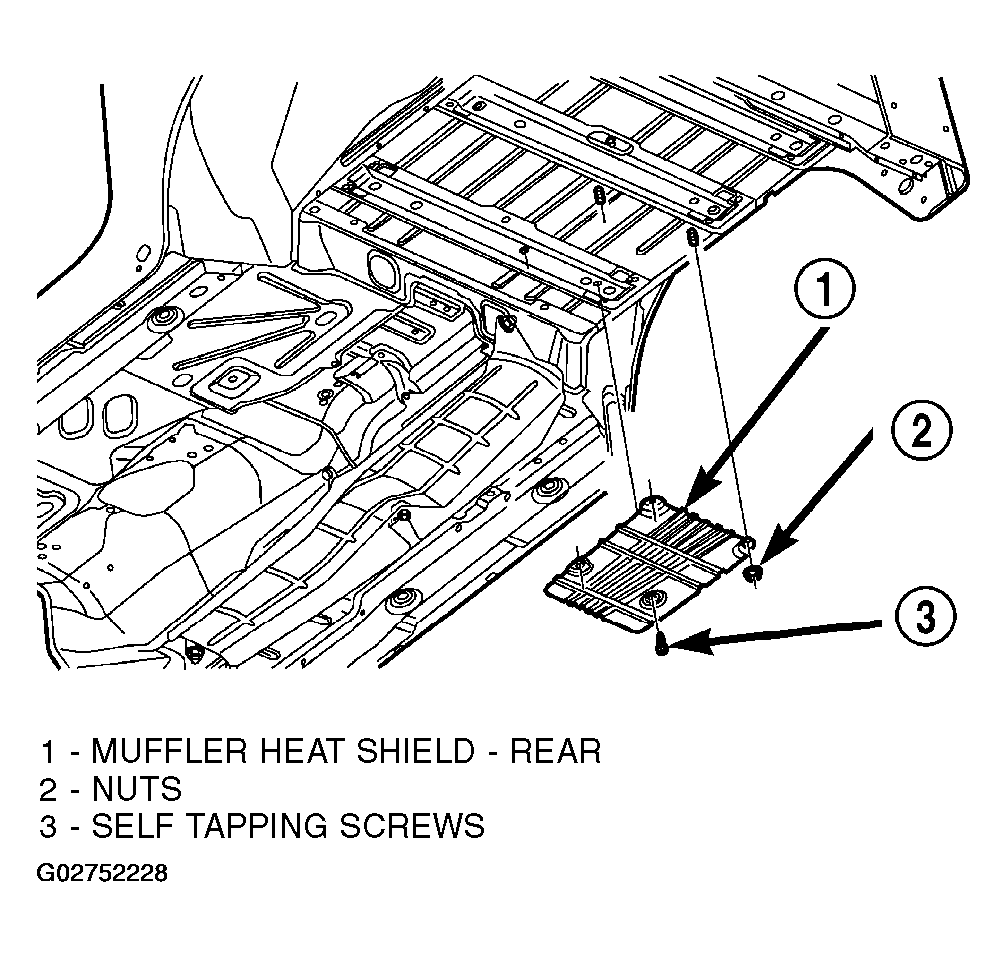

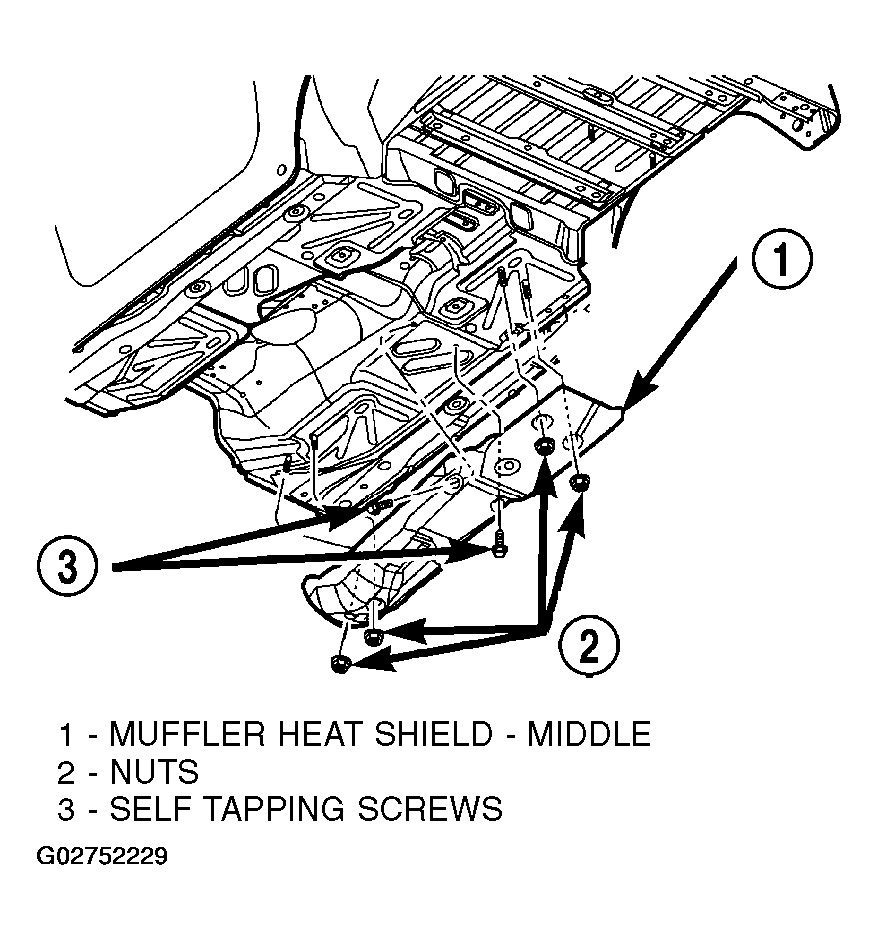

  1. Position the heat shields to the floor pan or the frame and install the screws and/or nuts (Figure ) and (Figure ).
  2. Tighten the nuts and/or screws to 45 N.m (33 ft. lbs.).
  3. Lower the vehicle.
