No Response From PCM (PCI Bus)

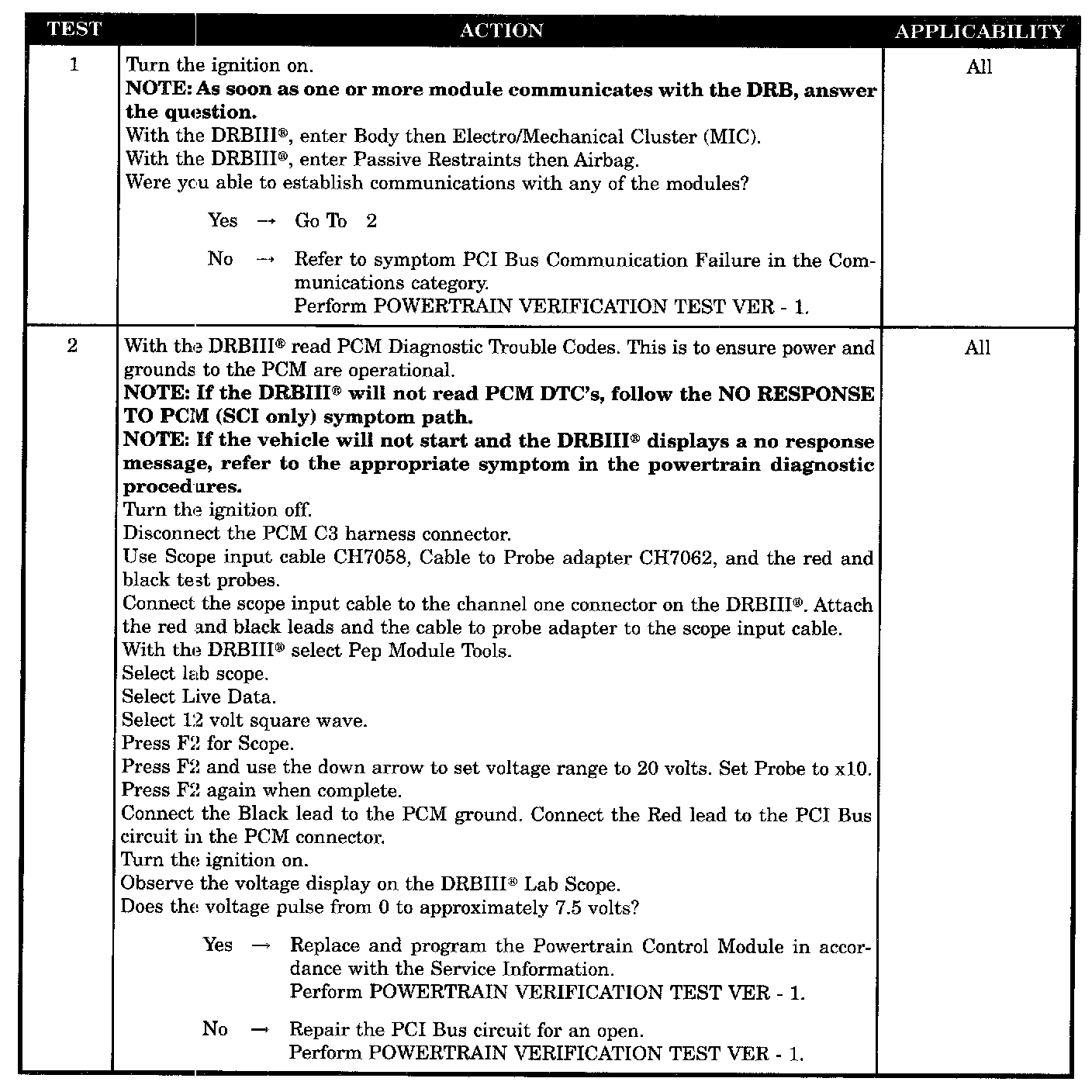

Test 1 - 2:






SYMPTOM
NO RESPONSE FROM PCM (PCI BUS)

POSSIBLE CAUSES
- PCM PCI no response
- PCI bus circuit open
- Powertrain control module
