Checking the PCM Power and Ground Circuits

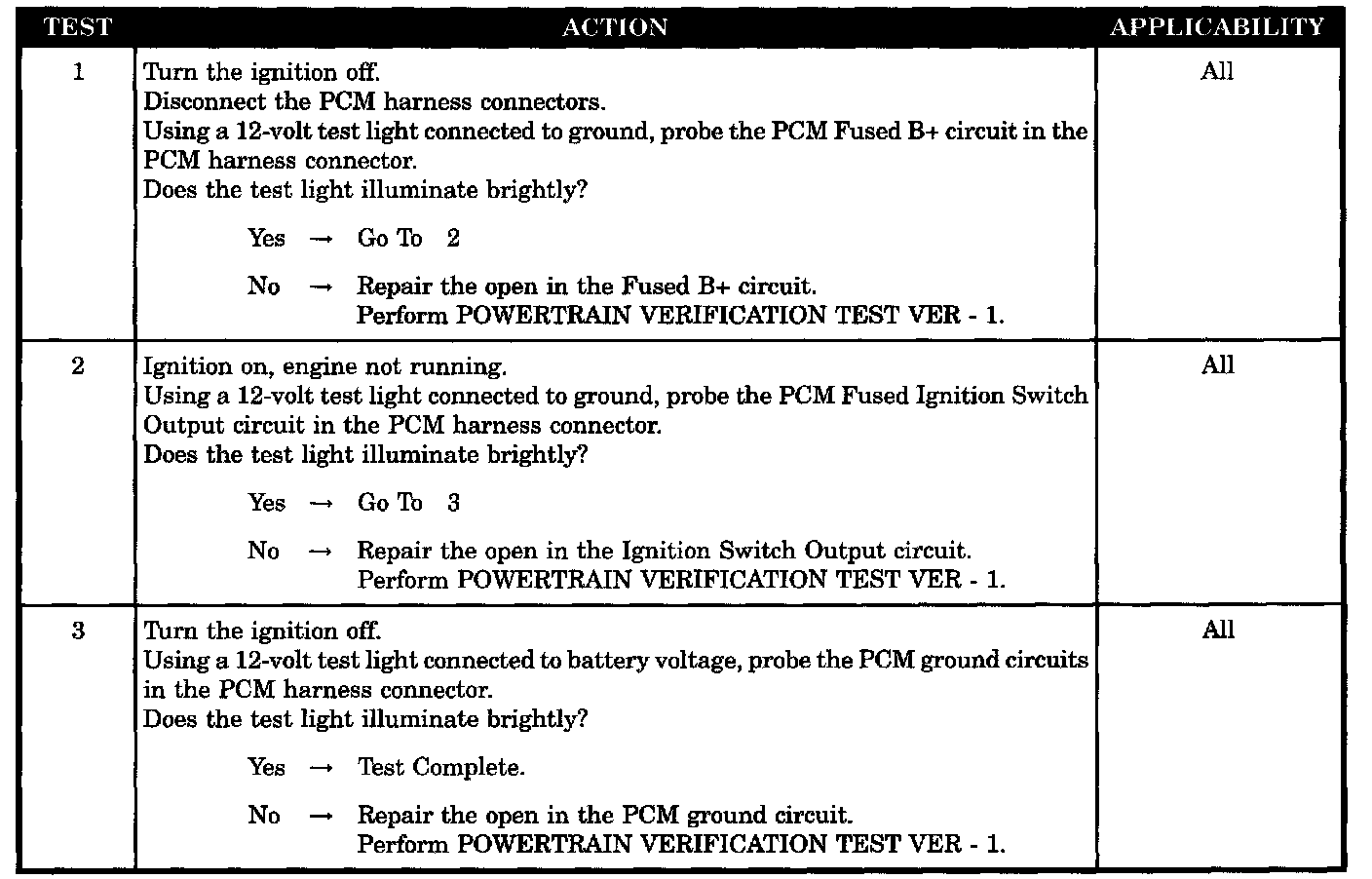

Test 1 - 3:






SYMPTOM
CHECKING THE PCM POWER AND GROUNDS

POSSIBLE CAUSES
- PCM fused B+ circuit
- PCM fused ignition switch output circuit
- PCM ground circuits
