Liberty Renegade, 4WD, Part Time, Standard
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Connector End Views
>>
Connector Pin-Outs
>>
Instrument Cluster Connector End View
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Instrument Cluster Connector End View

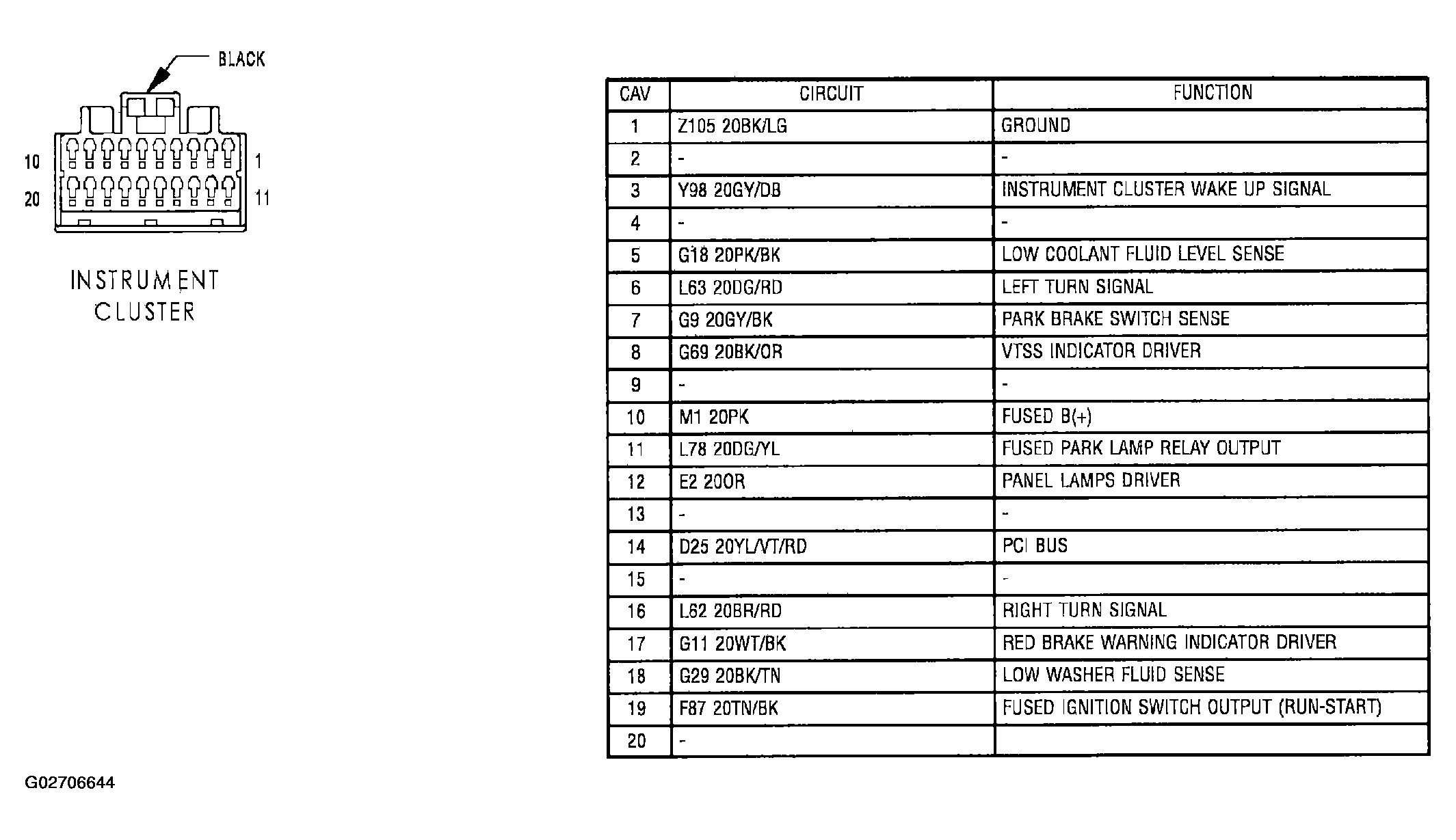

Fig 1: Instrument Cluster Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
