Remote Keyless Entry Module: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Remove the Junction Block (JB) (Refer to POWER DISTRIBUTION ).
  3. Remove Remote Keyless Entry module from Body Control Module (Fig 1 ).

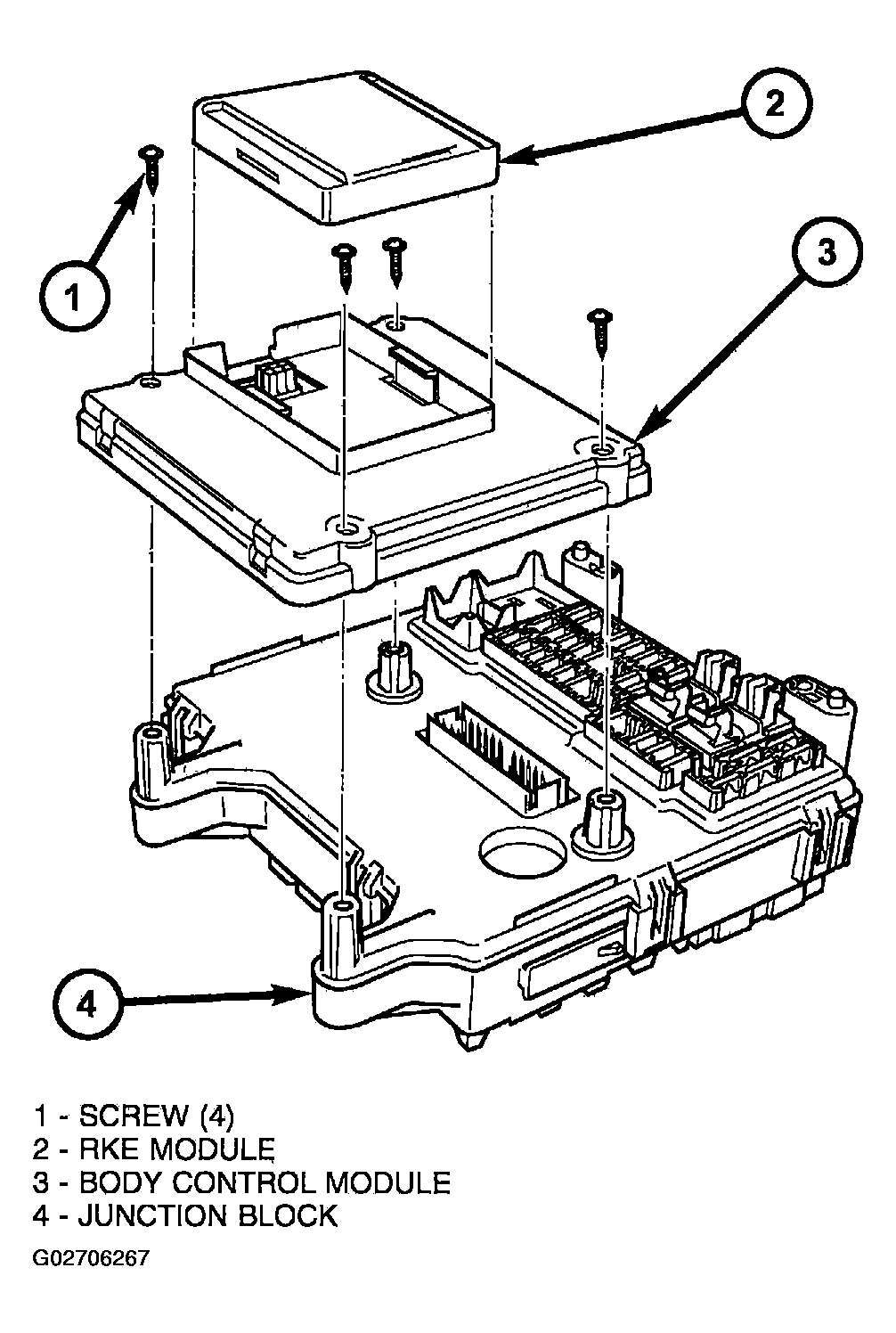

    Fig 1: Installing RKE Module
    G02706267Courtesy of DAIMLERCHRYSLER CORP.
