Verification Tests

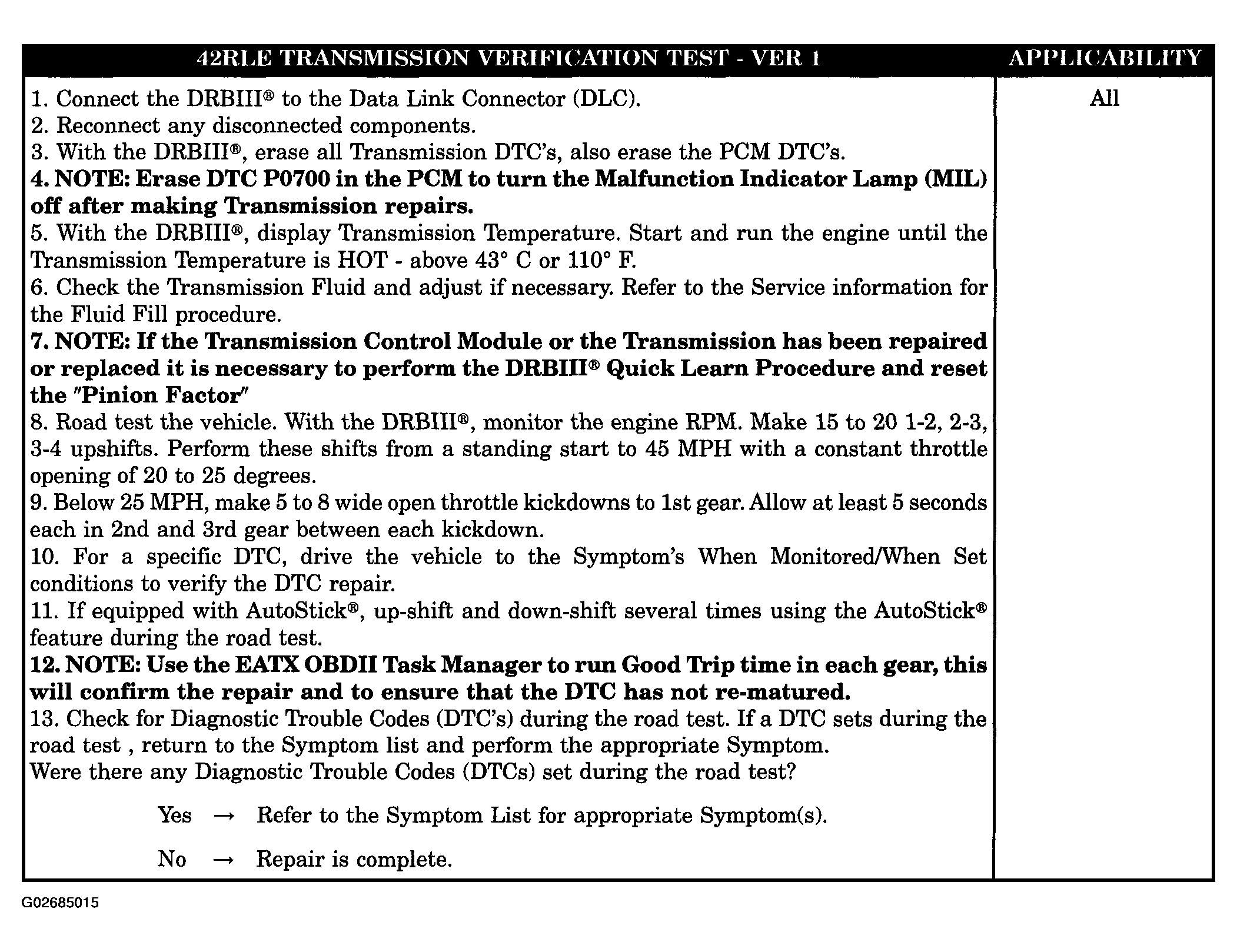

Fig 1: Transmission Verification Test - VER 1 - 42RLE

Courtesy of DAIMLERCHRYSLER CORP.

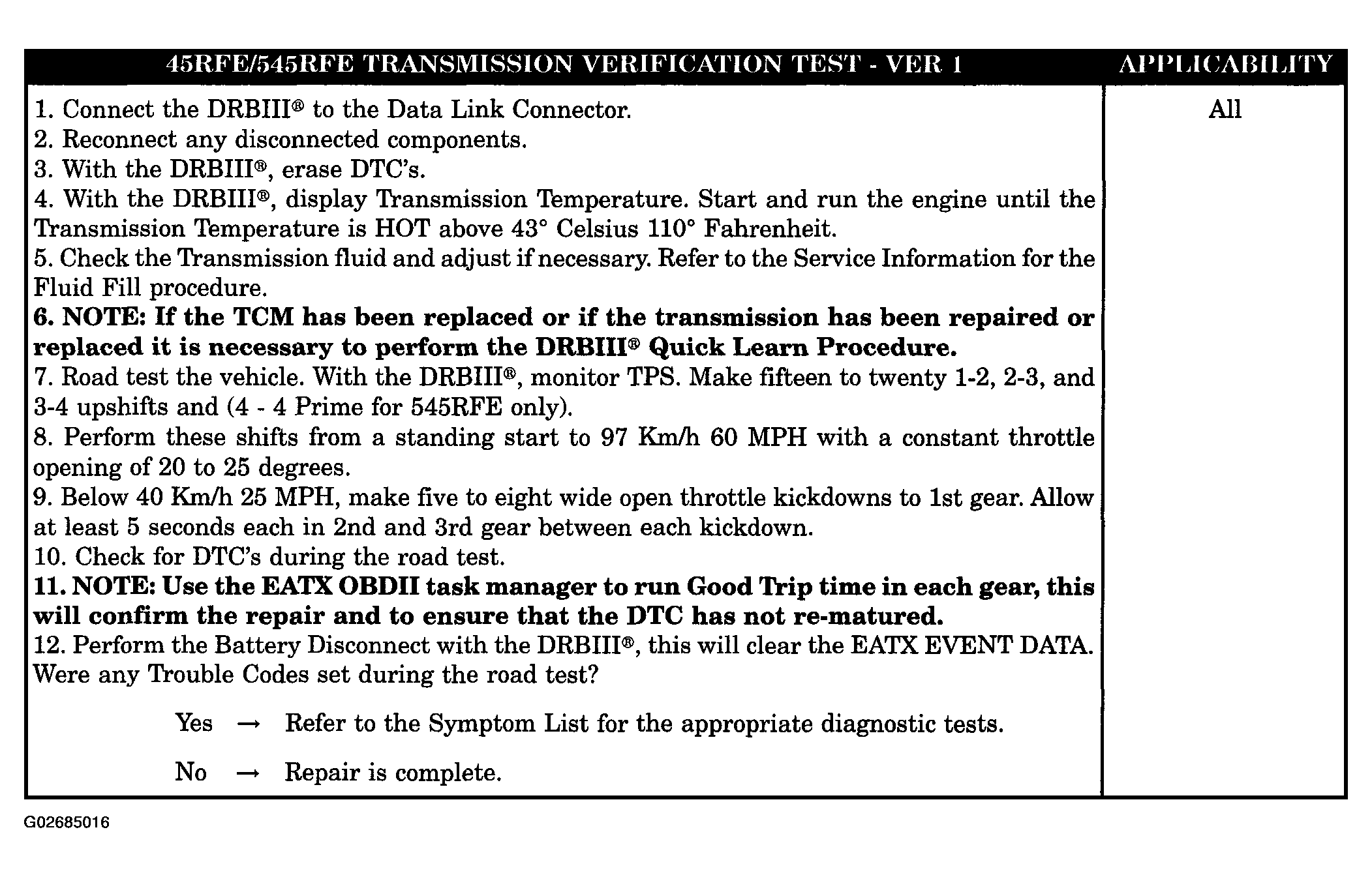

Fig 2: Transmission Verification Test - VER 1 - 45RFE/545RFE

Courtesy of DAIMLERCHRYSLER CORP.

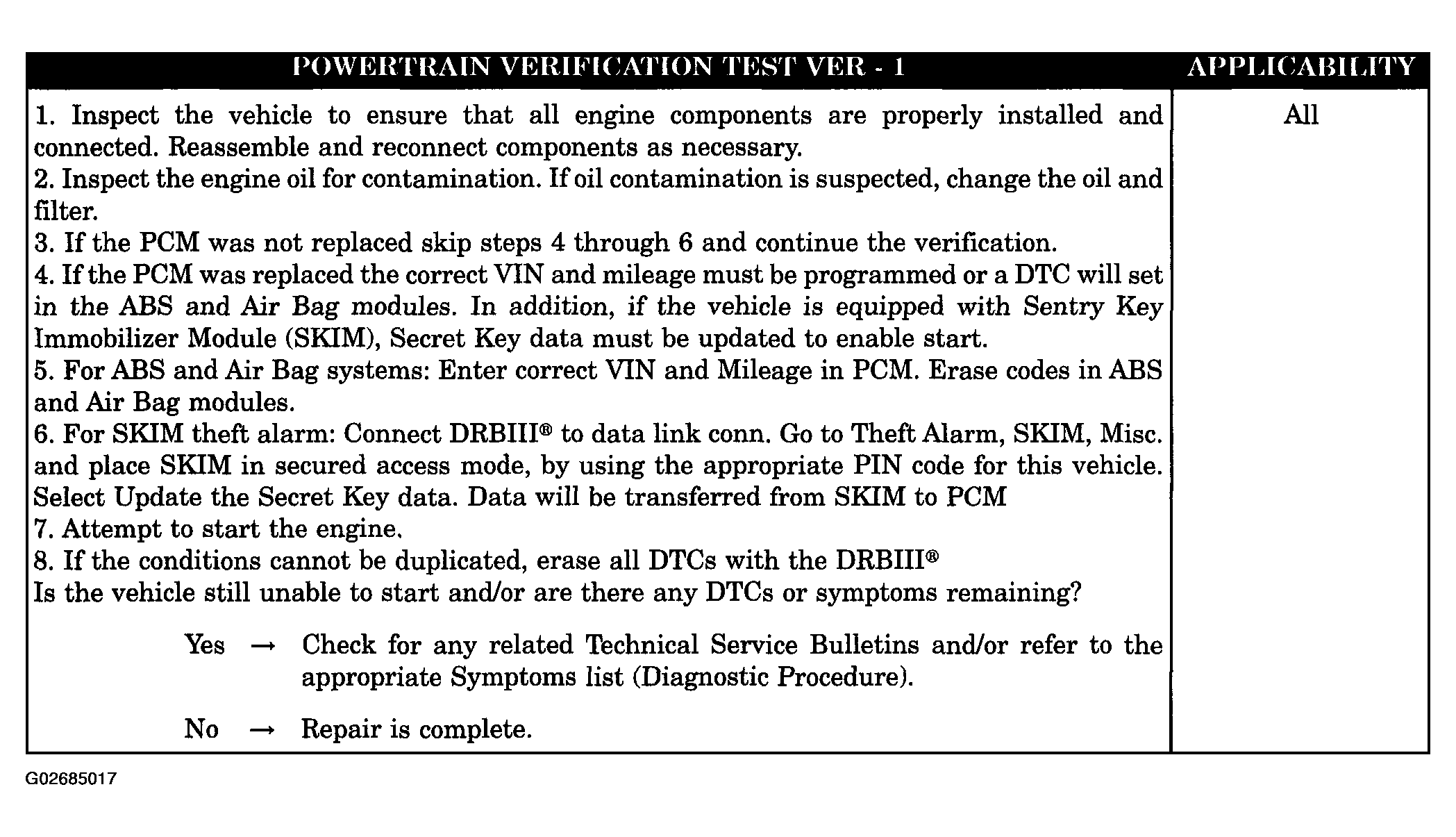

Fig 3: Powertrain Verification Test - VER 1

Courtesy of DAIMLERCHRYSLER CORP.

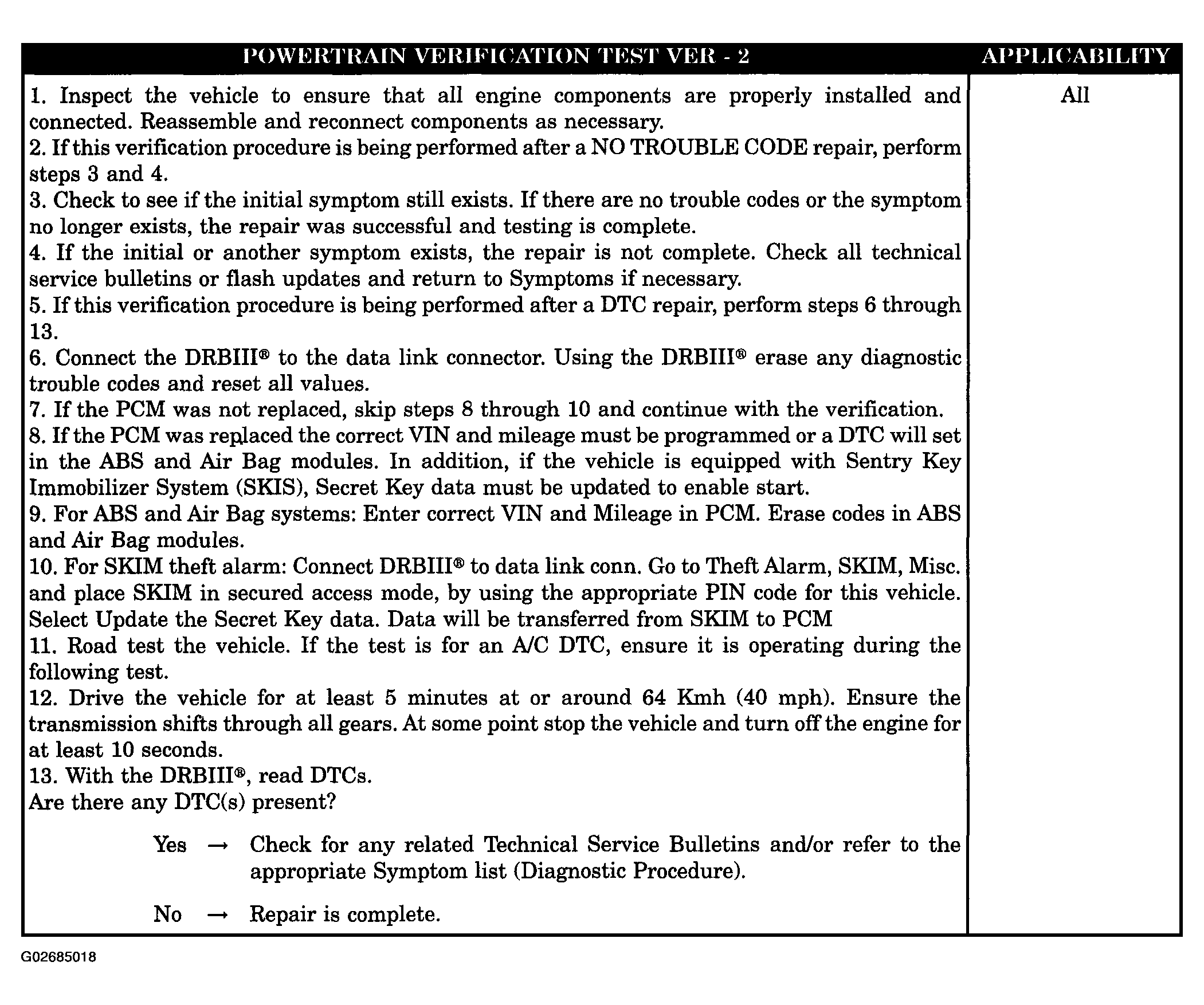

Fig 4: Powertrain Verification Test - VER 2

Courtesy of DAIMLERCHRYSLER CORP.

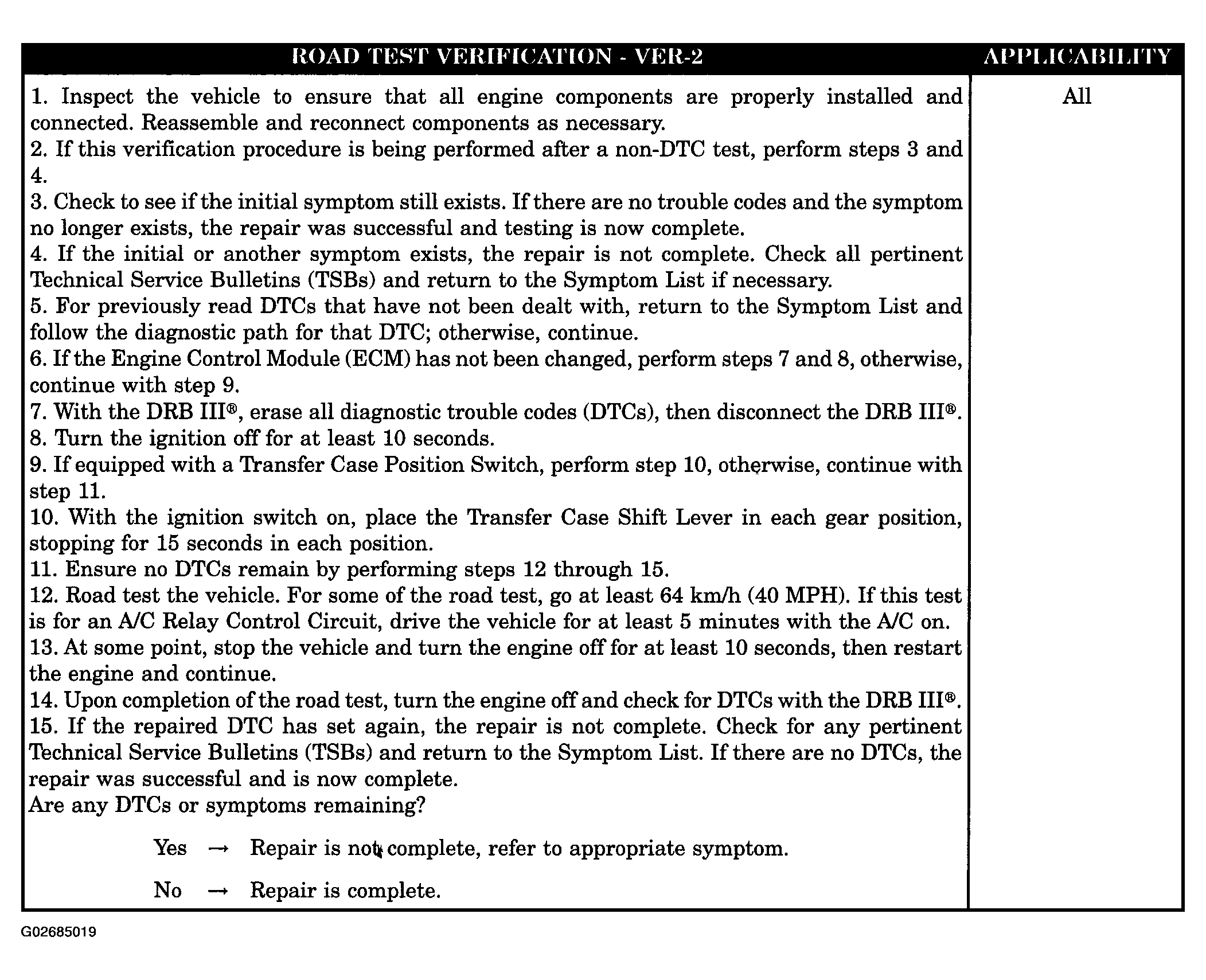

Fig 5: Road Test Verification Test - VER 2

Courtesy of DAIMLERCHRYSLER CORP.

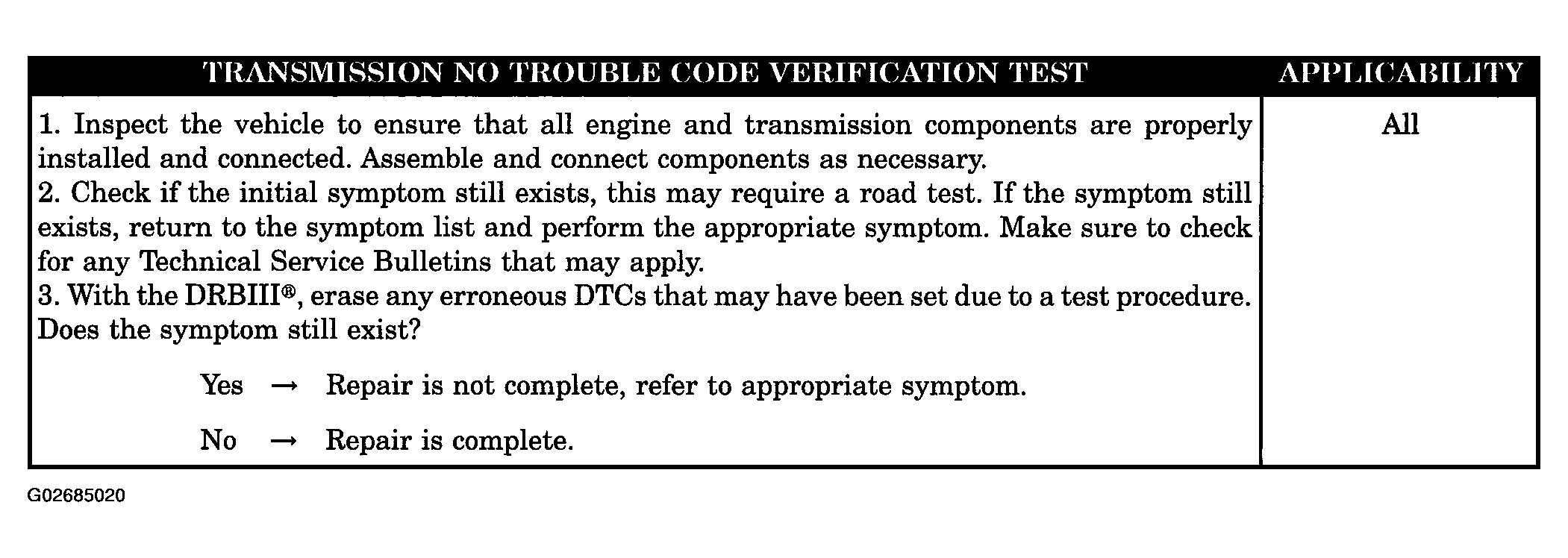

Fig 6: Transmission No Trouble Code Verification Test (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

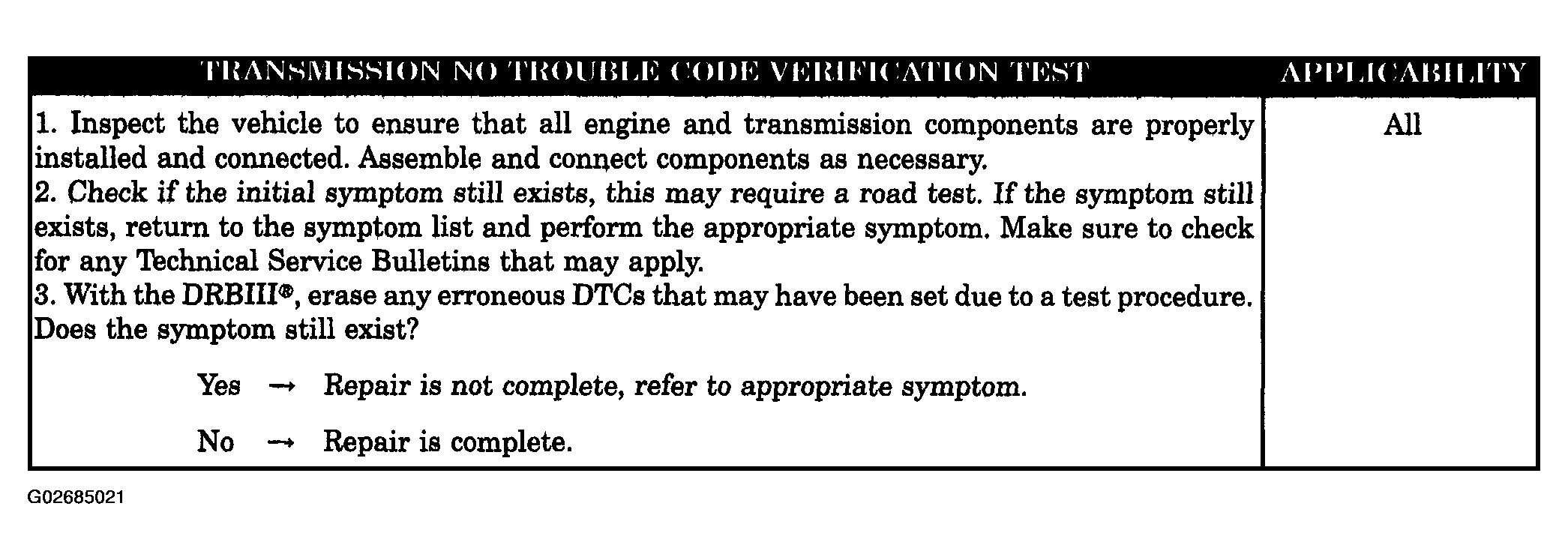

Fig 7: Transmission No Trouble Code Verification Test (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.
