Tailgate Cylinder Lock Switch Inoperative

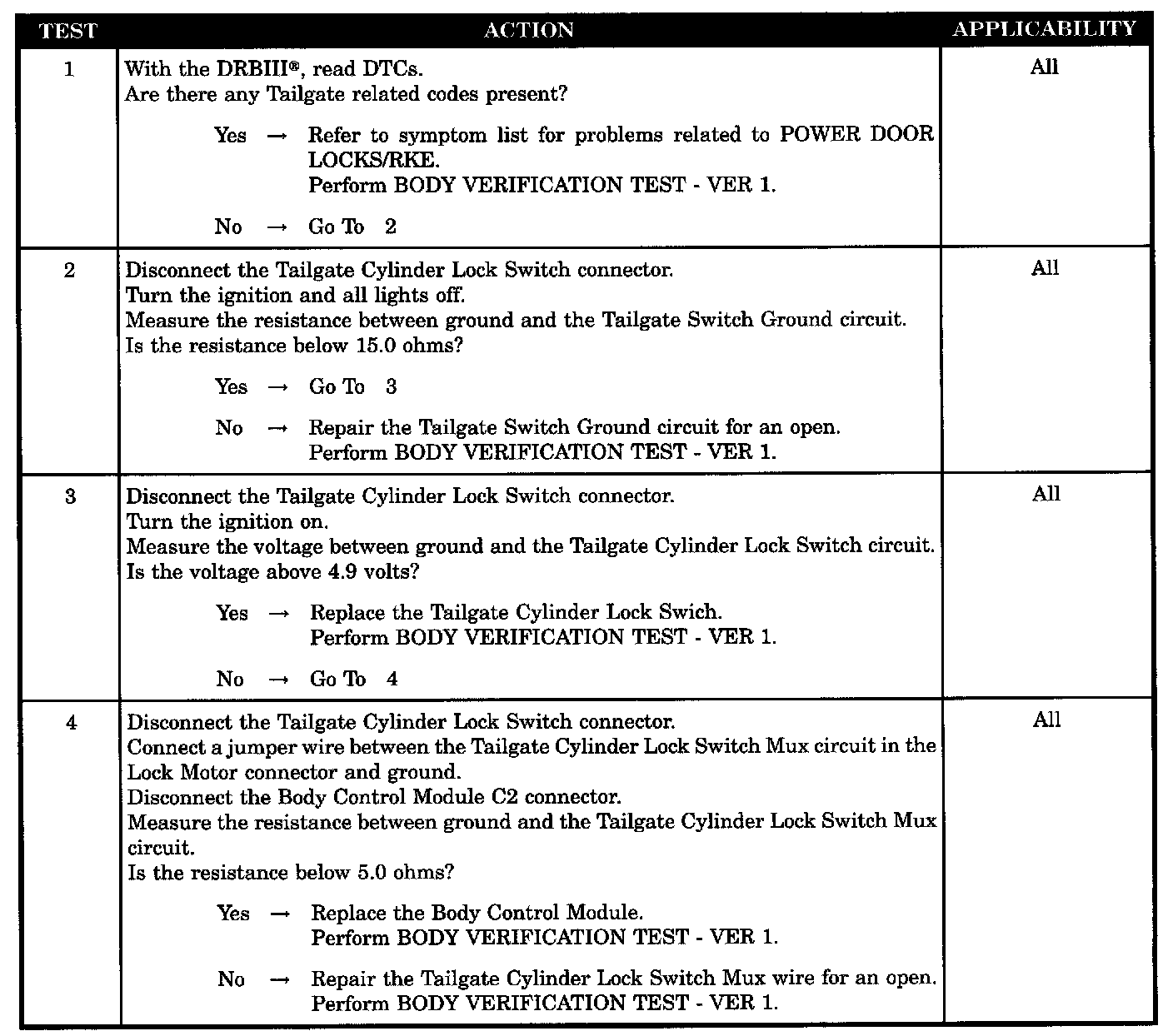

Test 1 - 4:






SYMPTOM
TAILGATE CYLINDER LOCK SWITCH INOPERATIVE

POSSIBLE CAUSES
- DTC's present
- Tailgate switch ground circuit open
- Tailgate cylinder lock switch MUX wire open
- Tailgate cylinder lock switch open
- Body control module - tailgate cylinder lock switch open
