Courtesy Lamps Inoperative - All Lamps

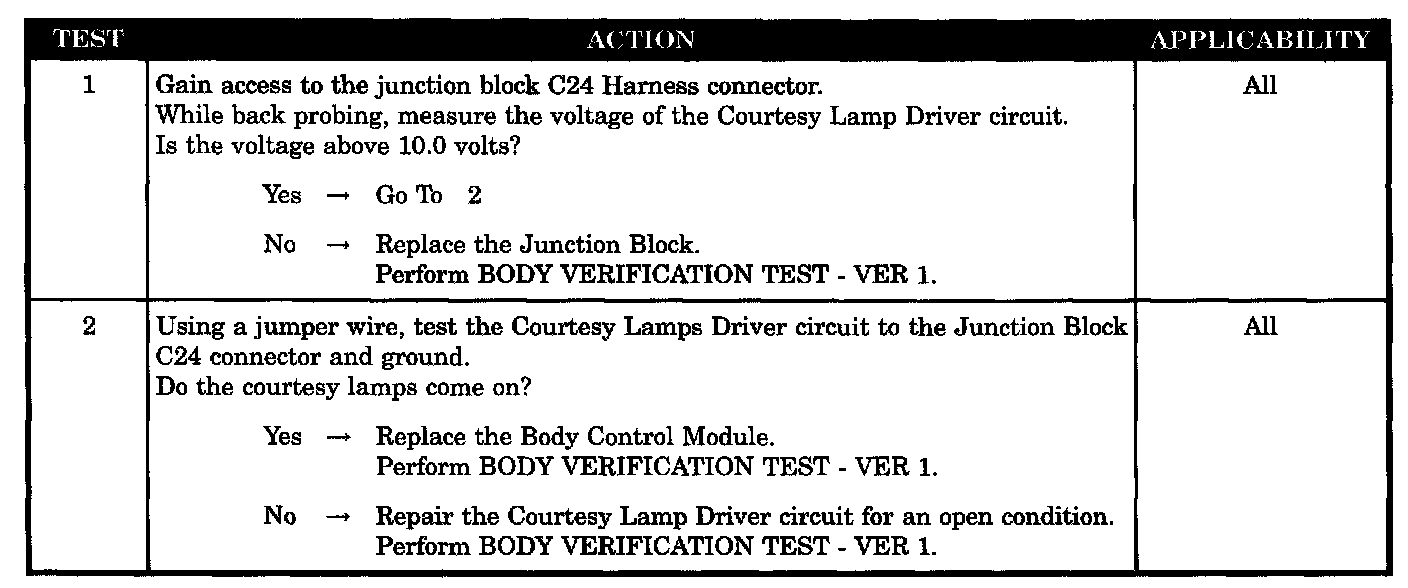

Test 1 - 2:






SYMPTOM
COURTESY LAMPS INOPERATIVE-ALL LAMPS

POSSIBLE CAUSES
- Junction block
- Courtesy lamps driver circuit open
- Body control module
