Intake Manifold

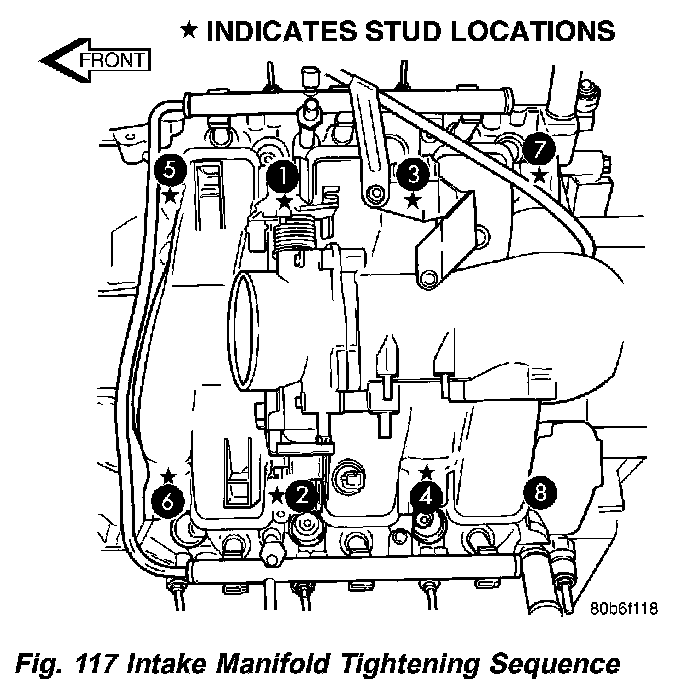

Intake Manifold Tightening Sequence:





Tighten intake manifold retaining bolts in sequence shown to 12 Nm (105 in. lbs.).
