Connector Locations

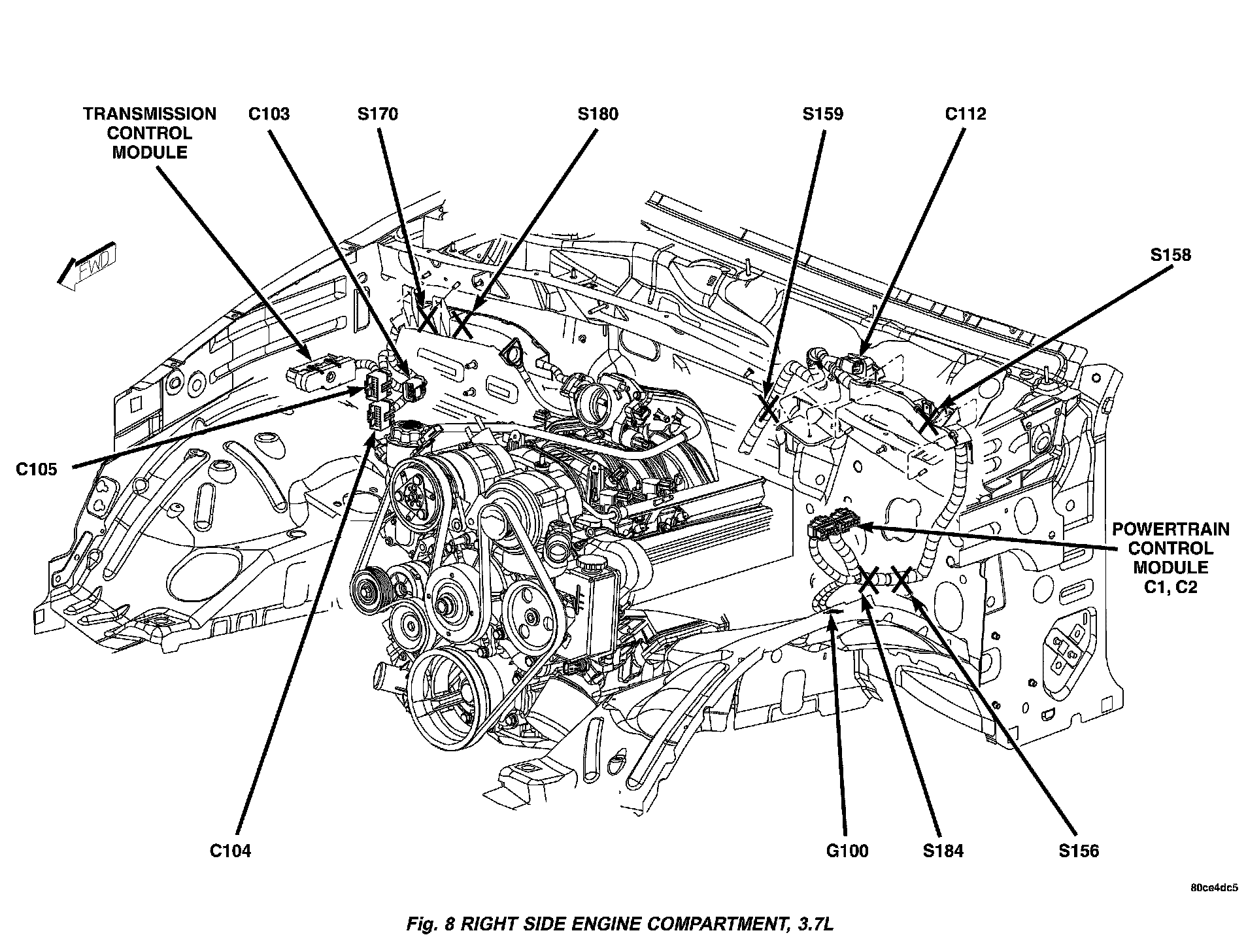

Fig. 8 Right Side Engine Compartment, 3.7L:

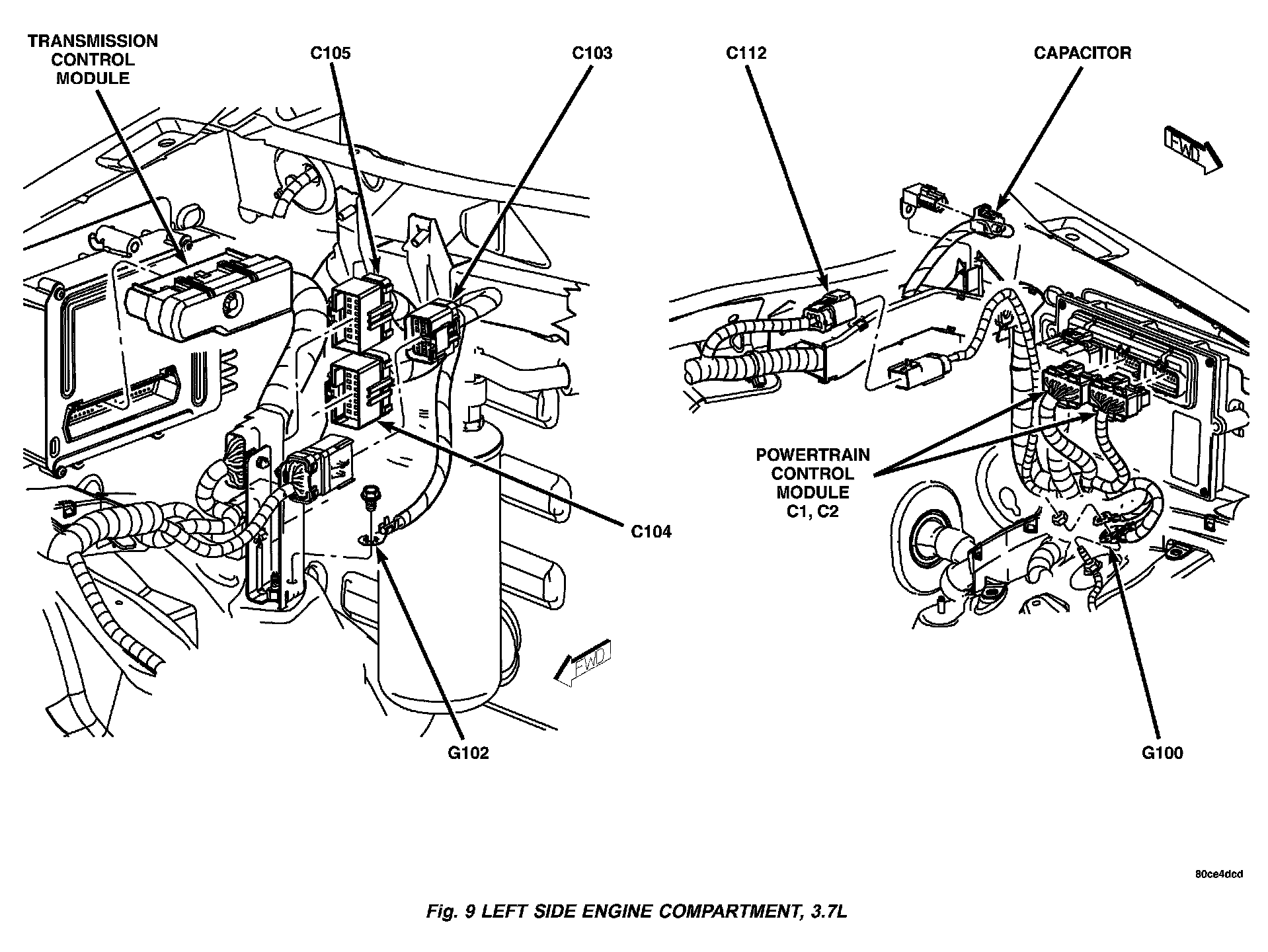

Fig. 9 Left Side Engine Compartment, 3.7L:

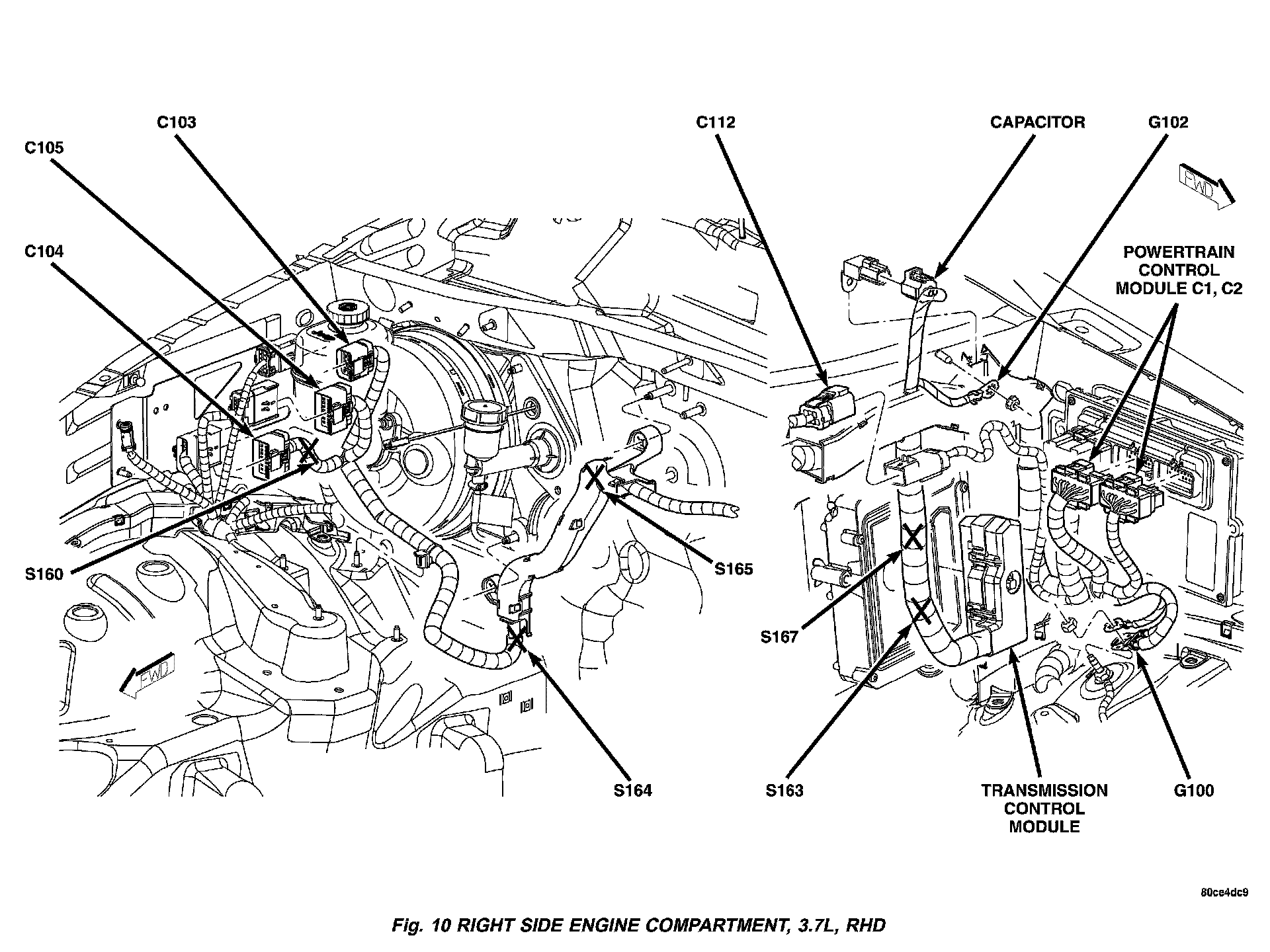

Fig. 10 Right Side Engine Compartment, 3.7L, RHD:






Fig. 31 Rear Engine Compartment, RHD:
