Horn Fails to Sound When Alarm Is Tripped

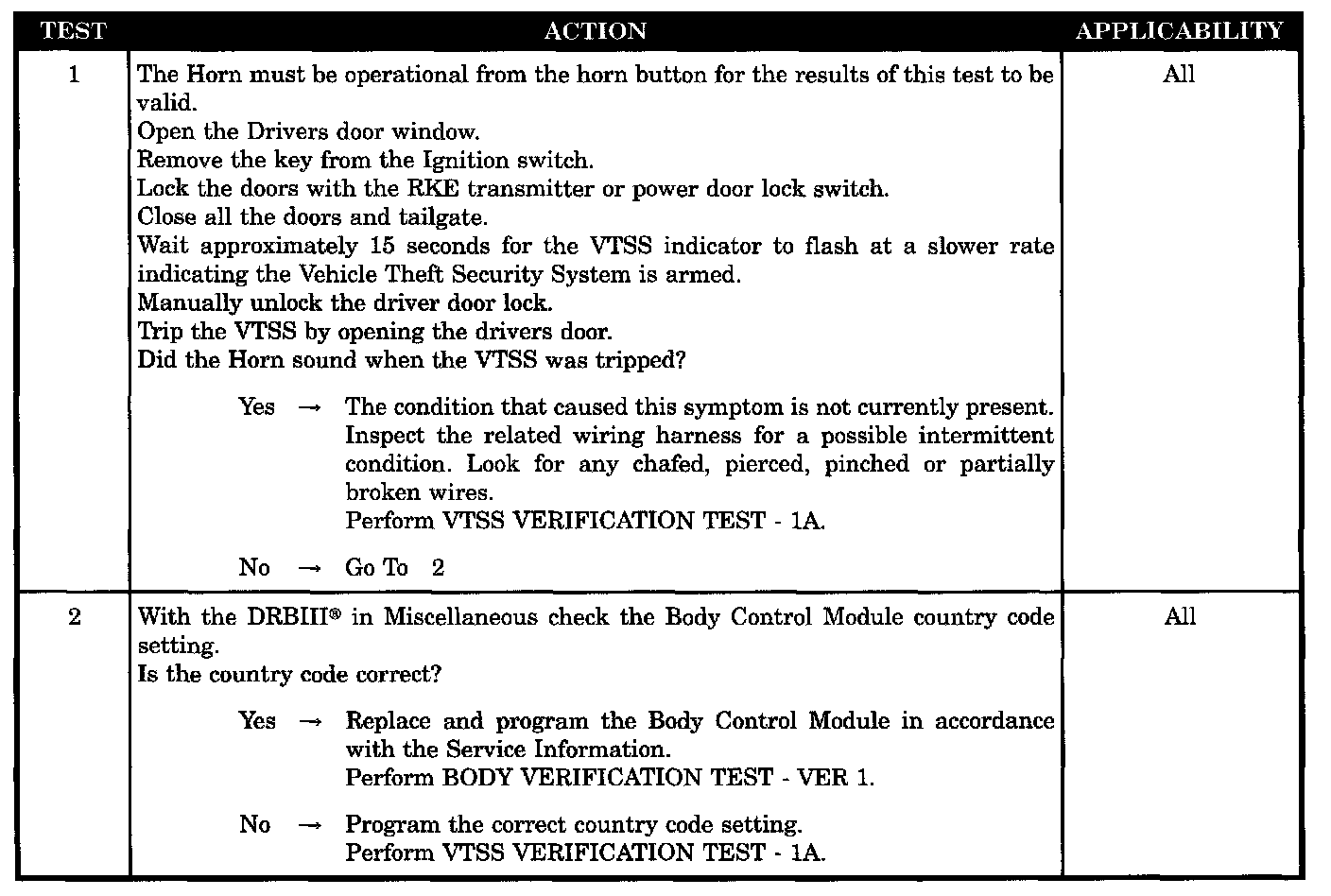

Test 1 - 2:






SYMPTOM
HORN FAILS TO SOUND WITH VTSS

POSSIBLE CAUSES
- Incorrect country code programmed in BCM
- Horn operation
- Body control module
