Right Front Door Ajar Circuit Open

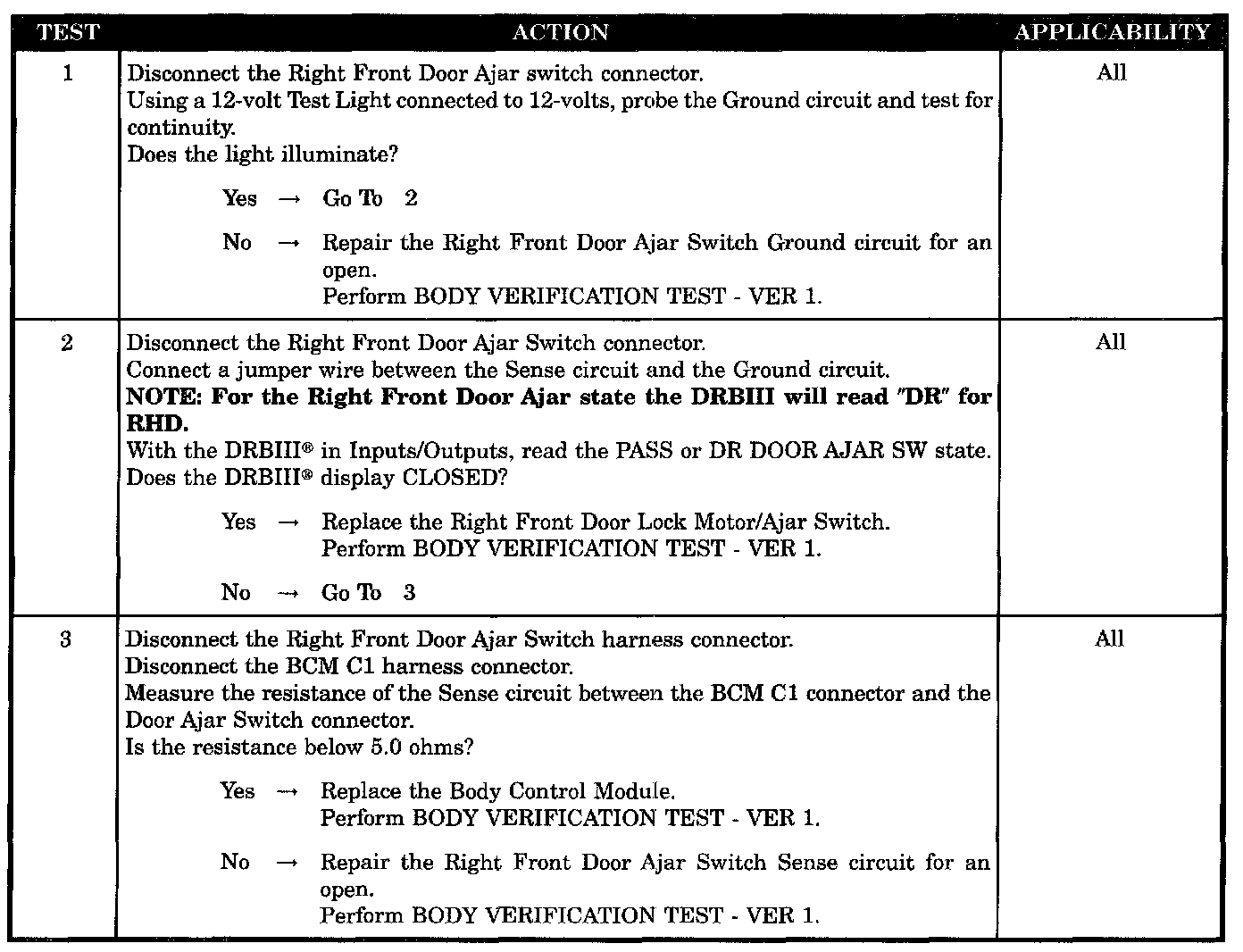

Test 1 - 3:






SYMPTOM
RIGHT FRONT DOOR AJAR CIRCUIT OPEN

POSSIBLE CAUSES
- Right front door ajar switch ground circuit open
- Right front door ajar switch
- Right front door ajar switch sense circuit open
- Body control module - internal malfunction
