Hood Ajar Circuit Open

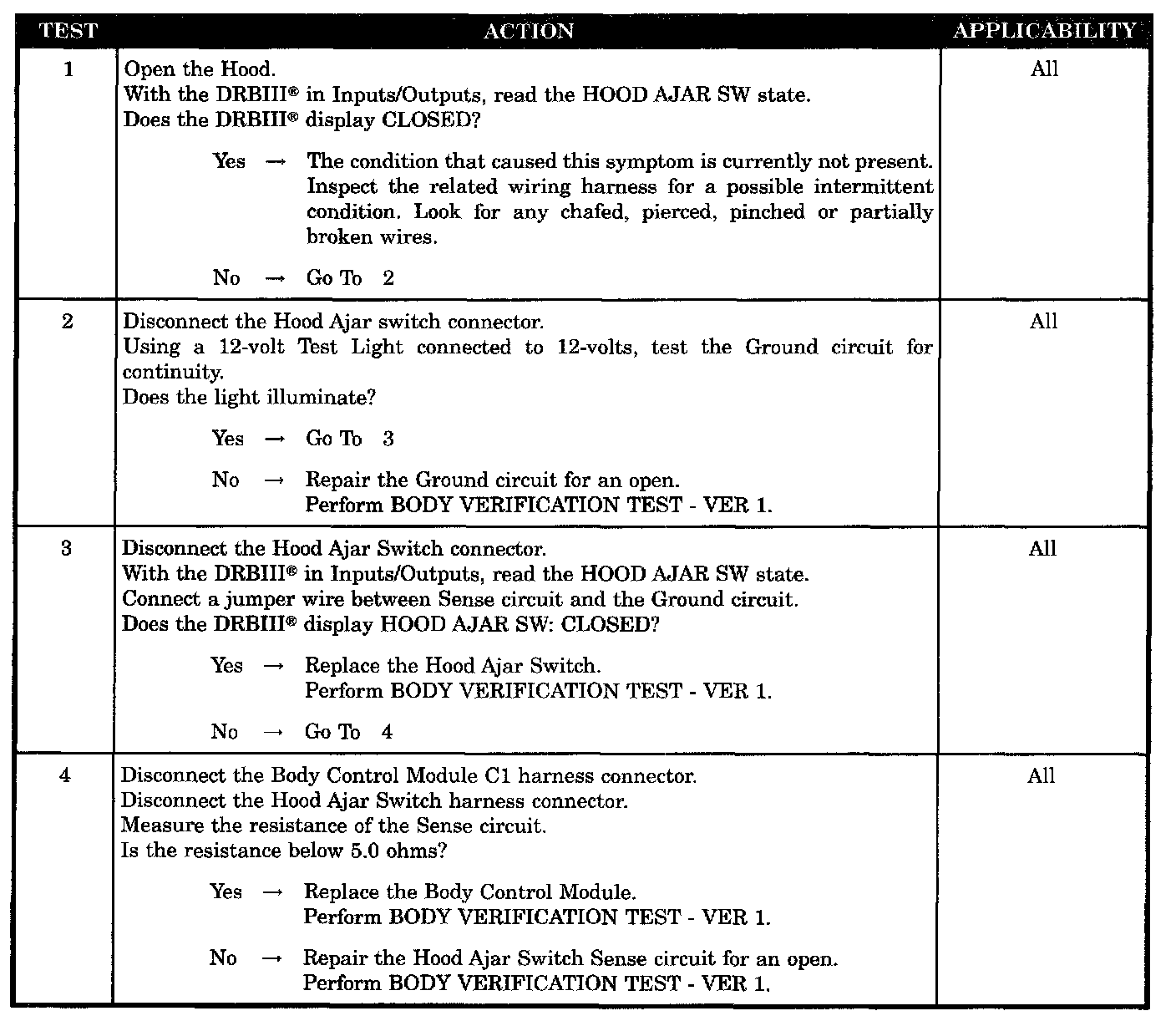

Test 1 - 4:






SYMPTOM
HOOD AJAR CIRCUIT OPEN

POSSIBLE CAUSES
- Hood ajar switch ground circuit open
- Intermittent condition
- Hood ajar switch
- Hood ajar switch sense circuit open
- Body control module internal malfunction
