Junction Block

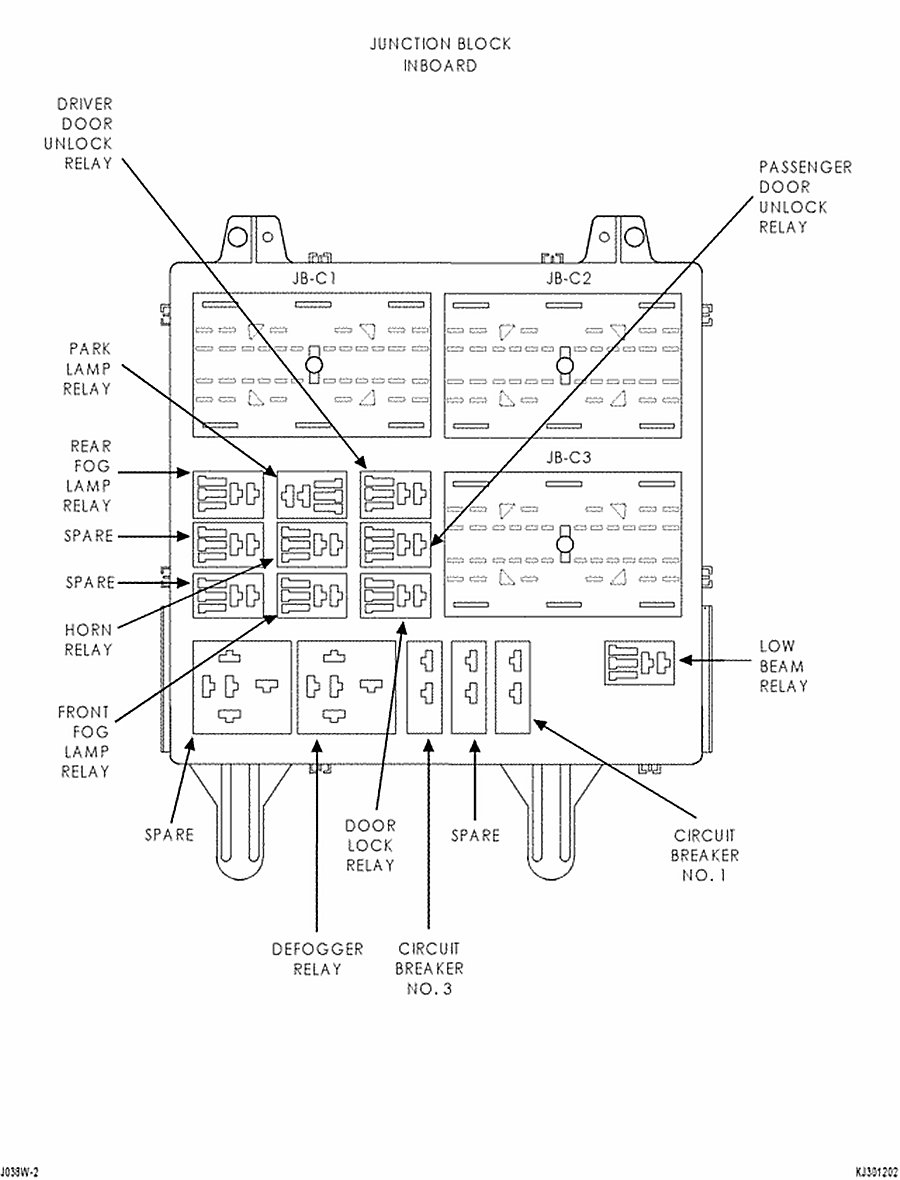

Junction Block Inboard:

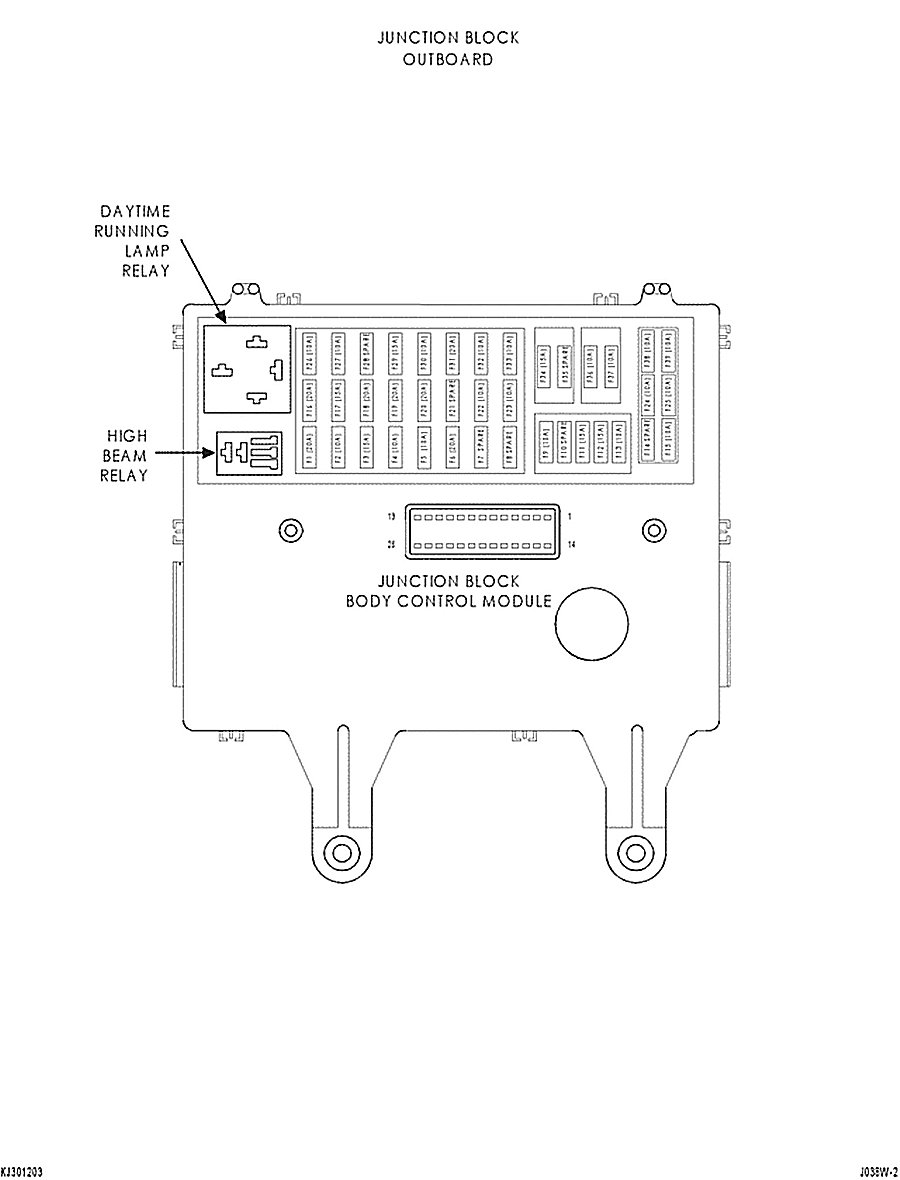

Junction Block Outboard:

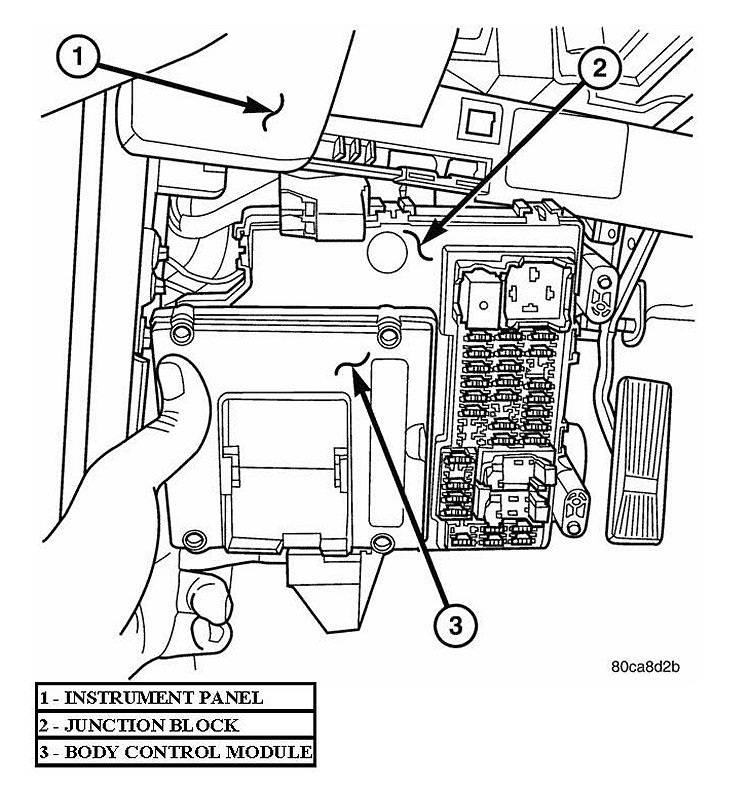

Junction Block (JB) is concealed behind the left outboard end of the instrument panel on left hand drive vehicles.
