Junction Block



Junction Block


Junction Block Inboard:





Junction Block Outboard:

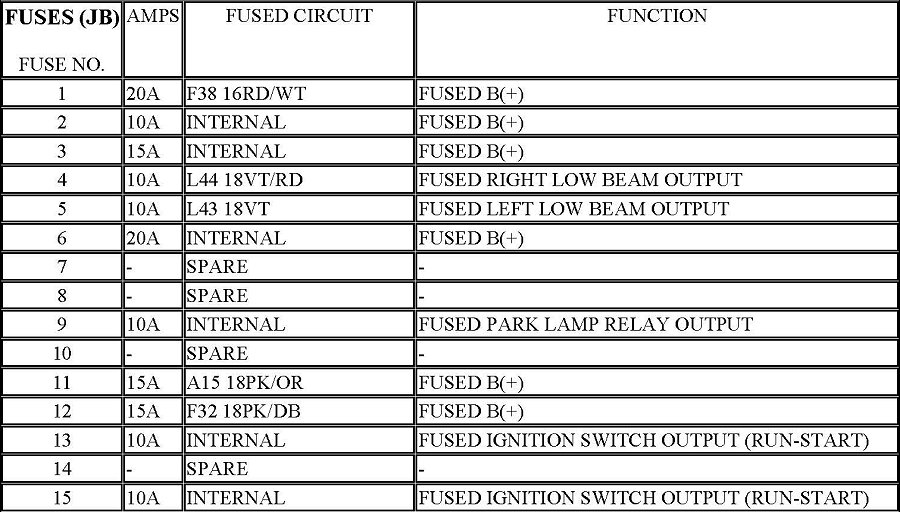

Fuses (1 Of 2):

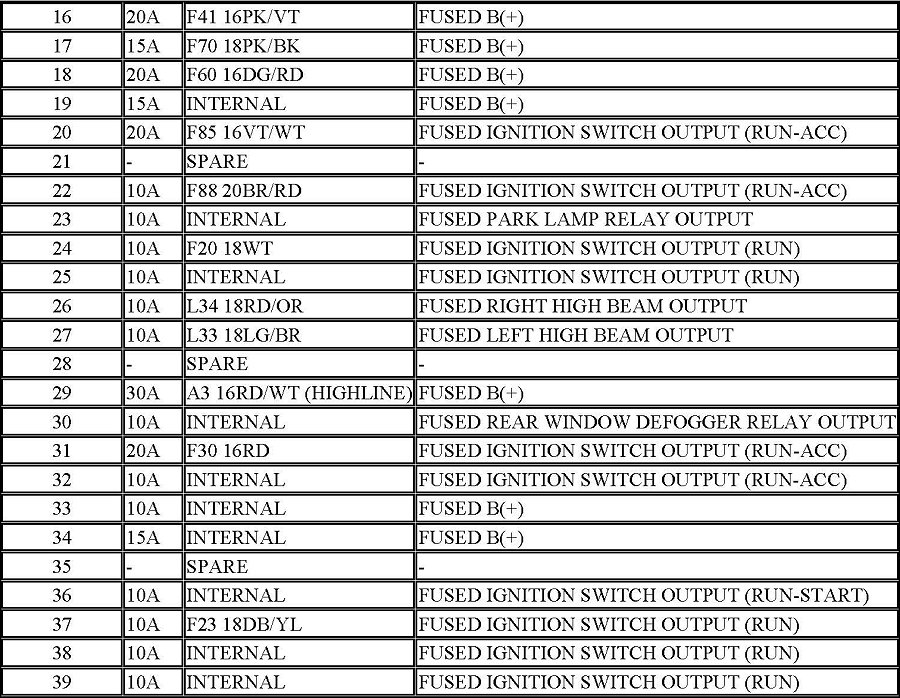

Fuses (2 Of 2):

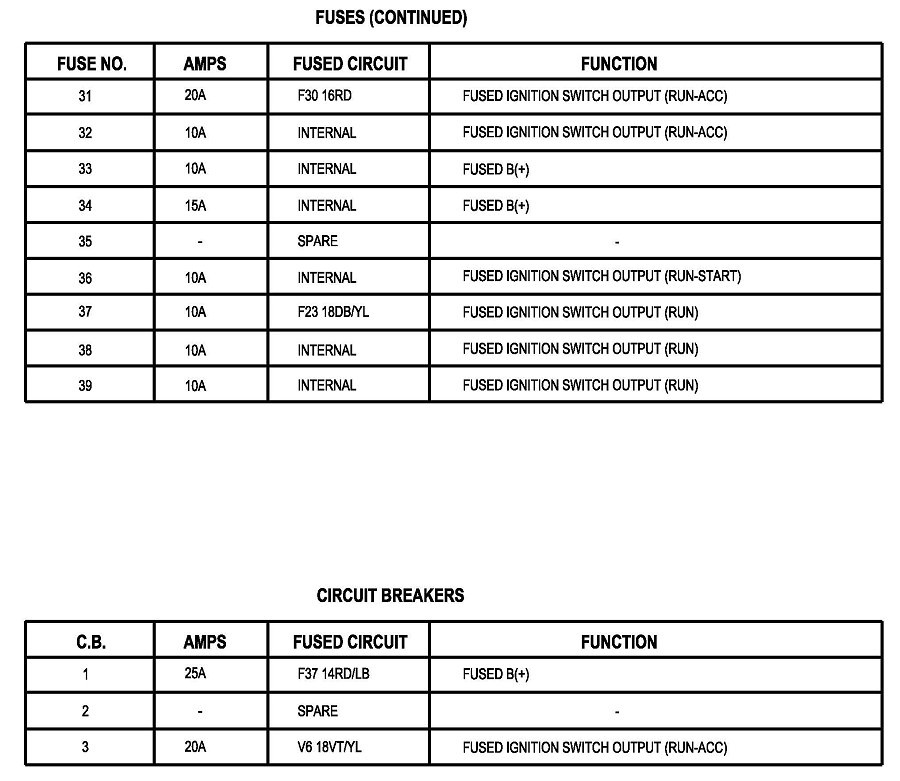

Circuit Breakers:





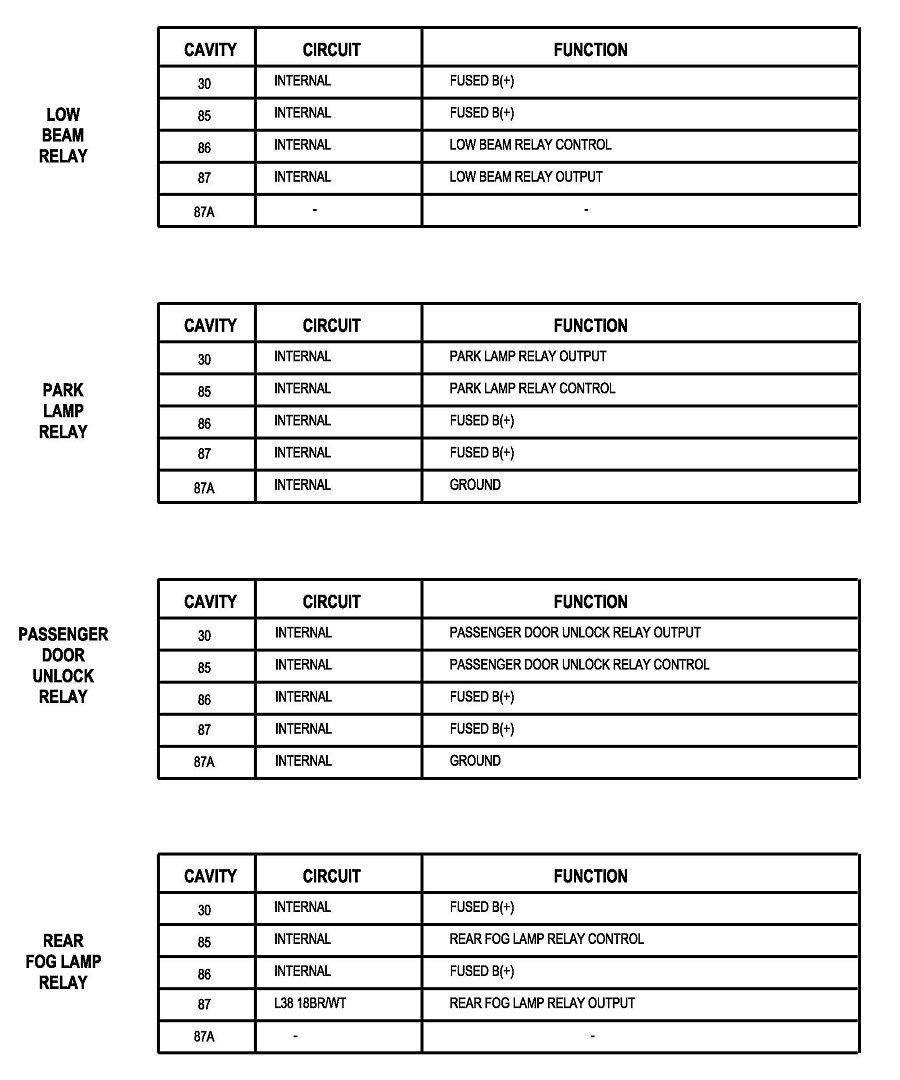

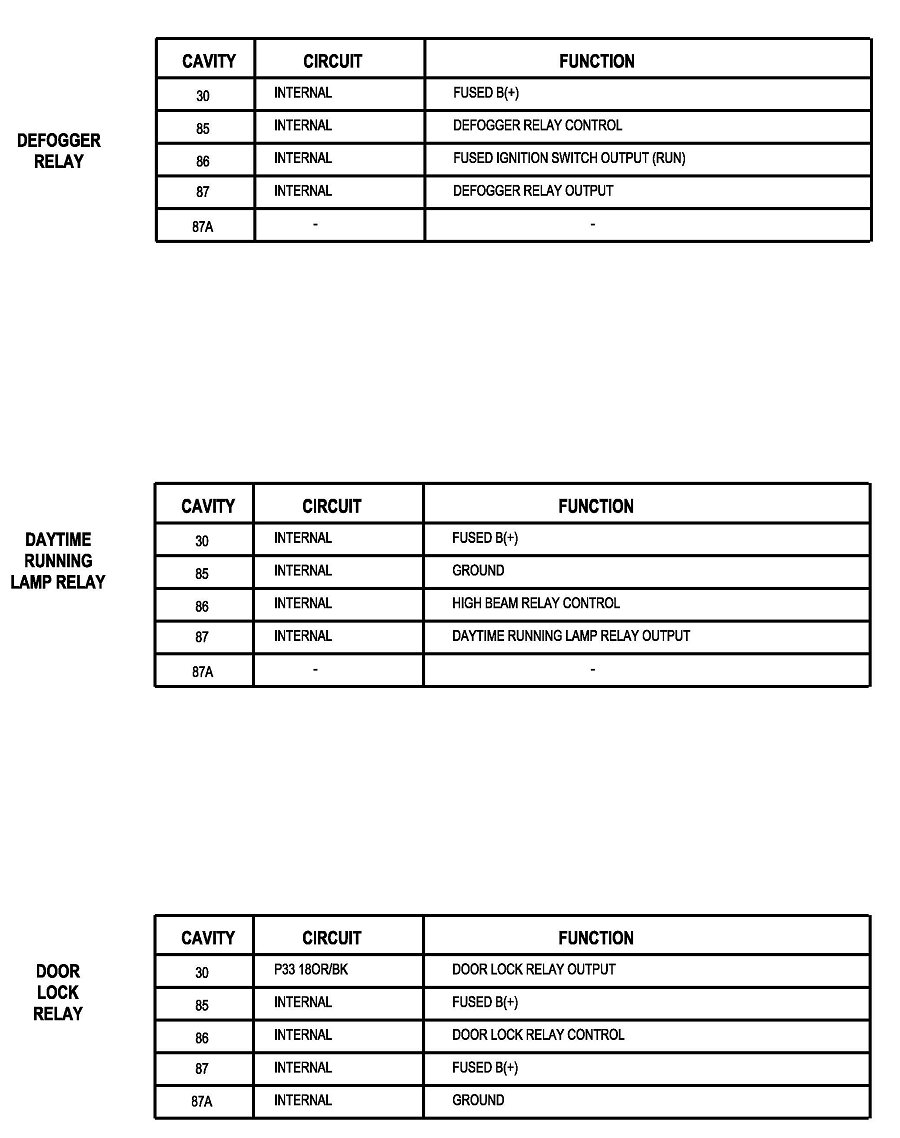

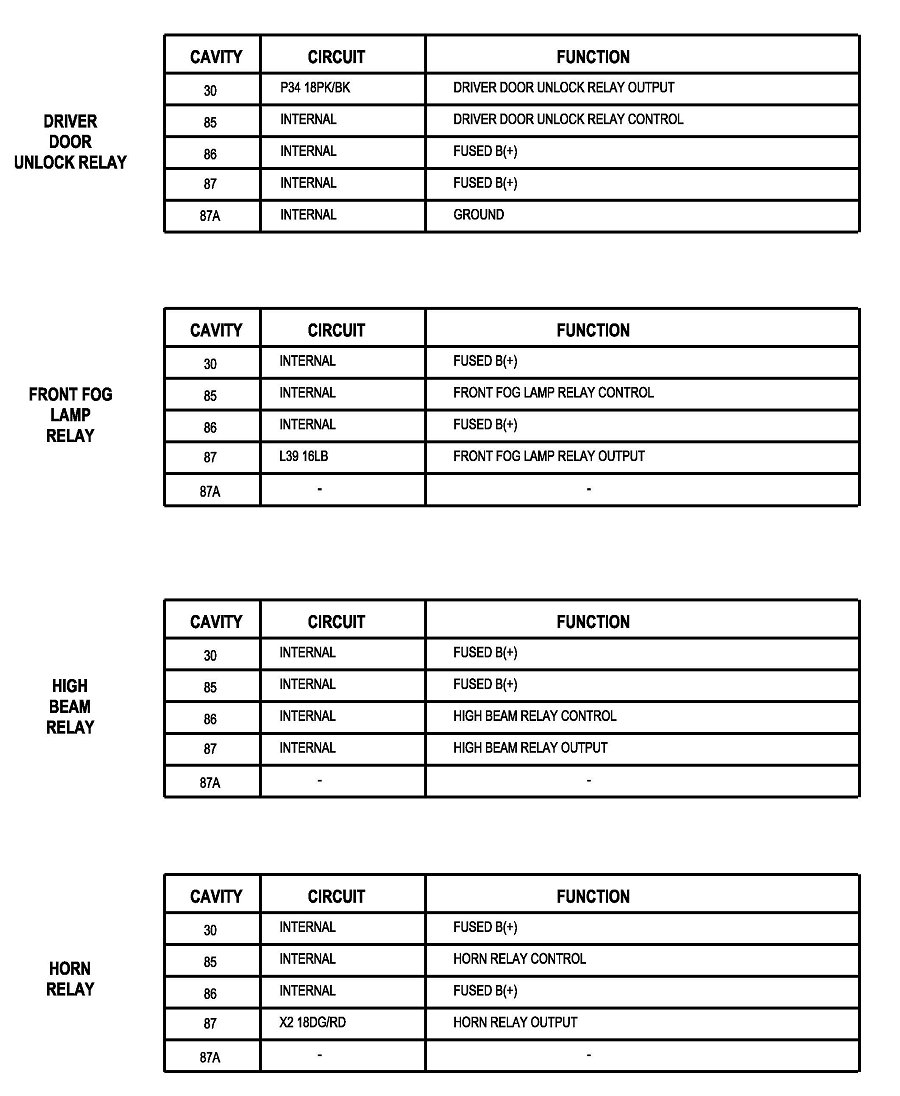

Connectors (1 Of 3):





Connectors (2 Of 3):





Connectors (3 Of 3):
