Sentry Key Immobilizer Module - Black 6 Way Connector End View

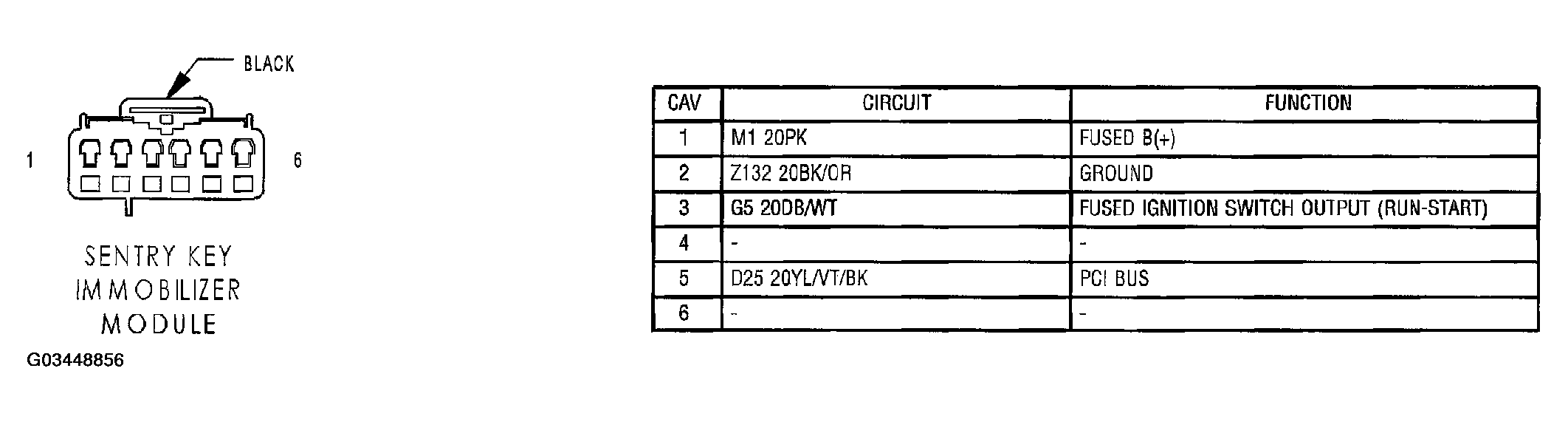

Fig 1: Sentry Key Immobilizer Module Connector End View
G03448856Courtesy of DAIMLERCHRYSLER CORP.
