Transmission Control Module C2 (Diesel) - Black 14 Way Connector End View

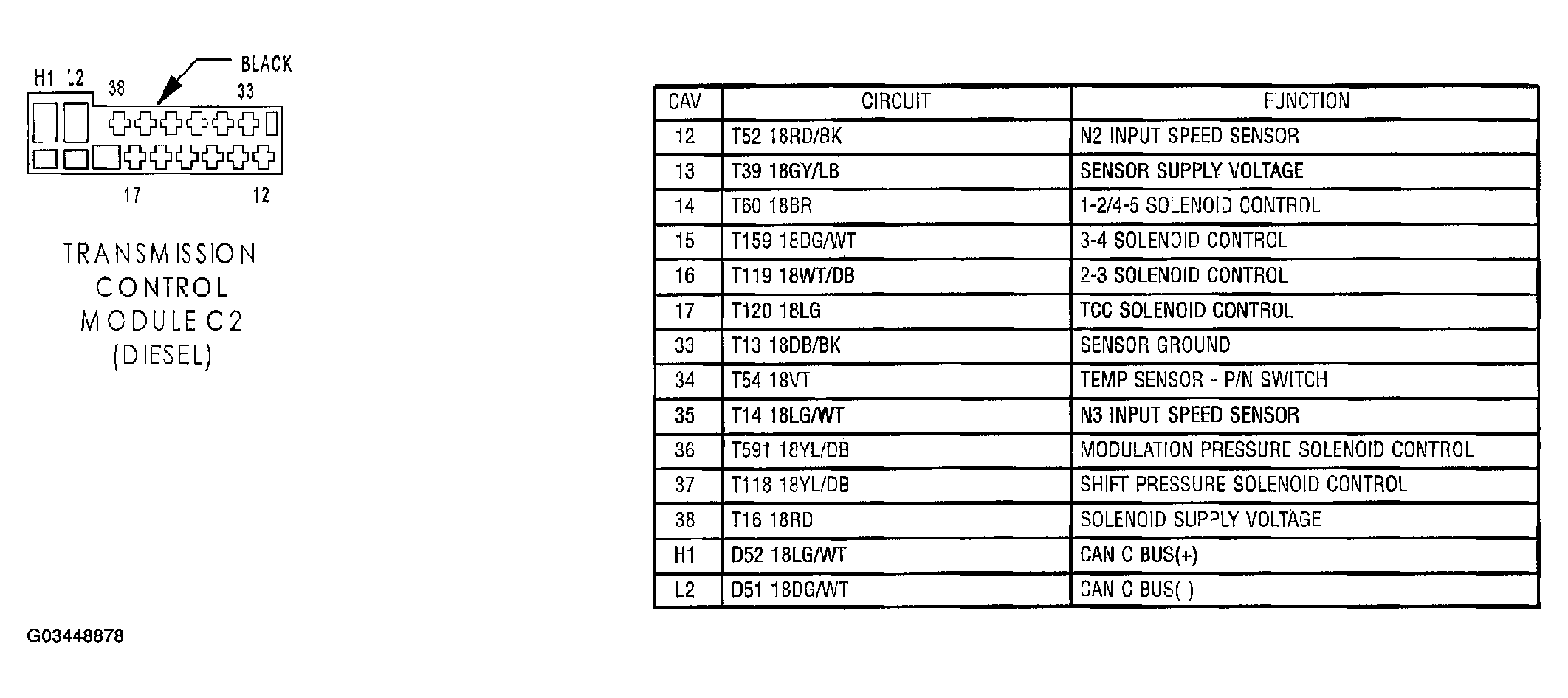

Fig 1: Transmission Control Module (Diesel) Connector End View (C2)
G03448878Courtesy of DAIMLERCHRYSLER CORP.
