Driver Door Module C2 - Black 12 Way Connector End View

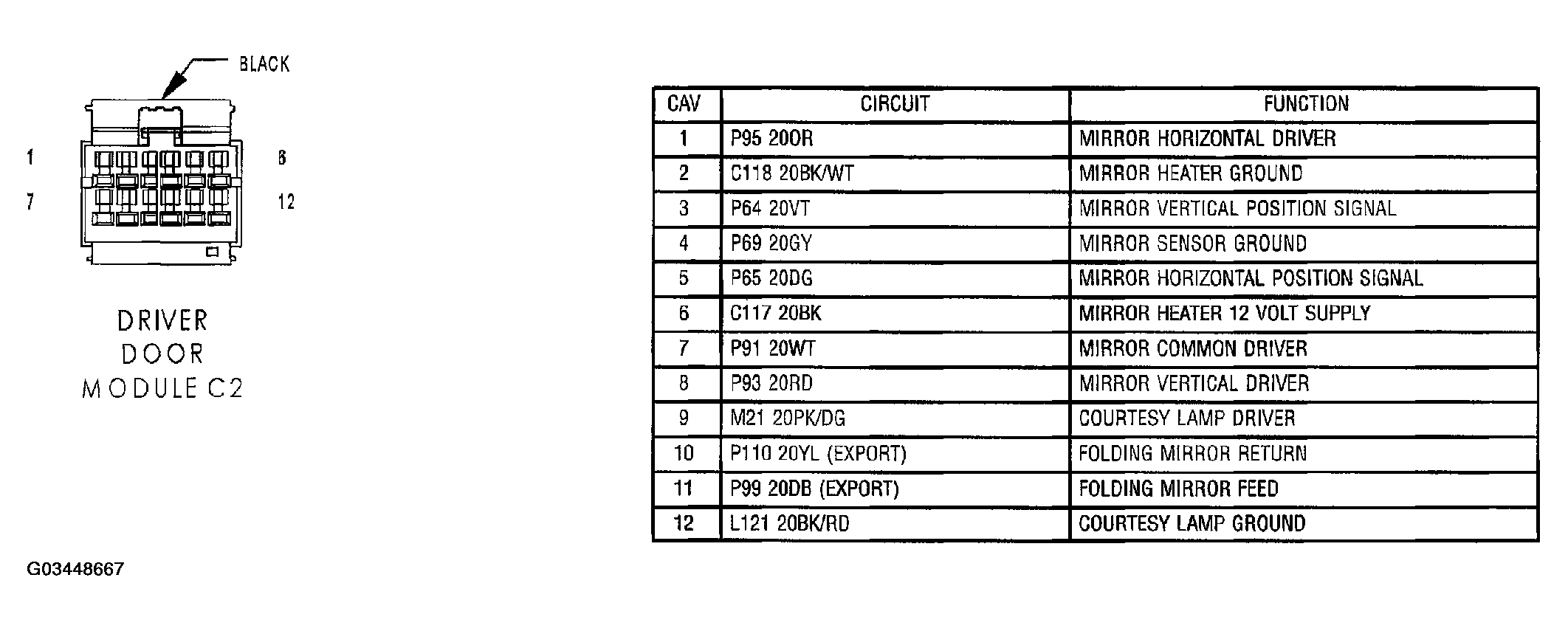

Fig 1: Driver Door Module Connector End View (C2)
G03448667Courtesy of DAIMLERCHRYSLER CORP.
