Intrusion Transceiver Module (Export Only)

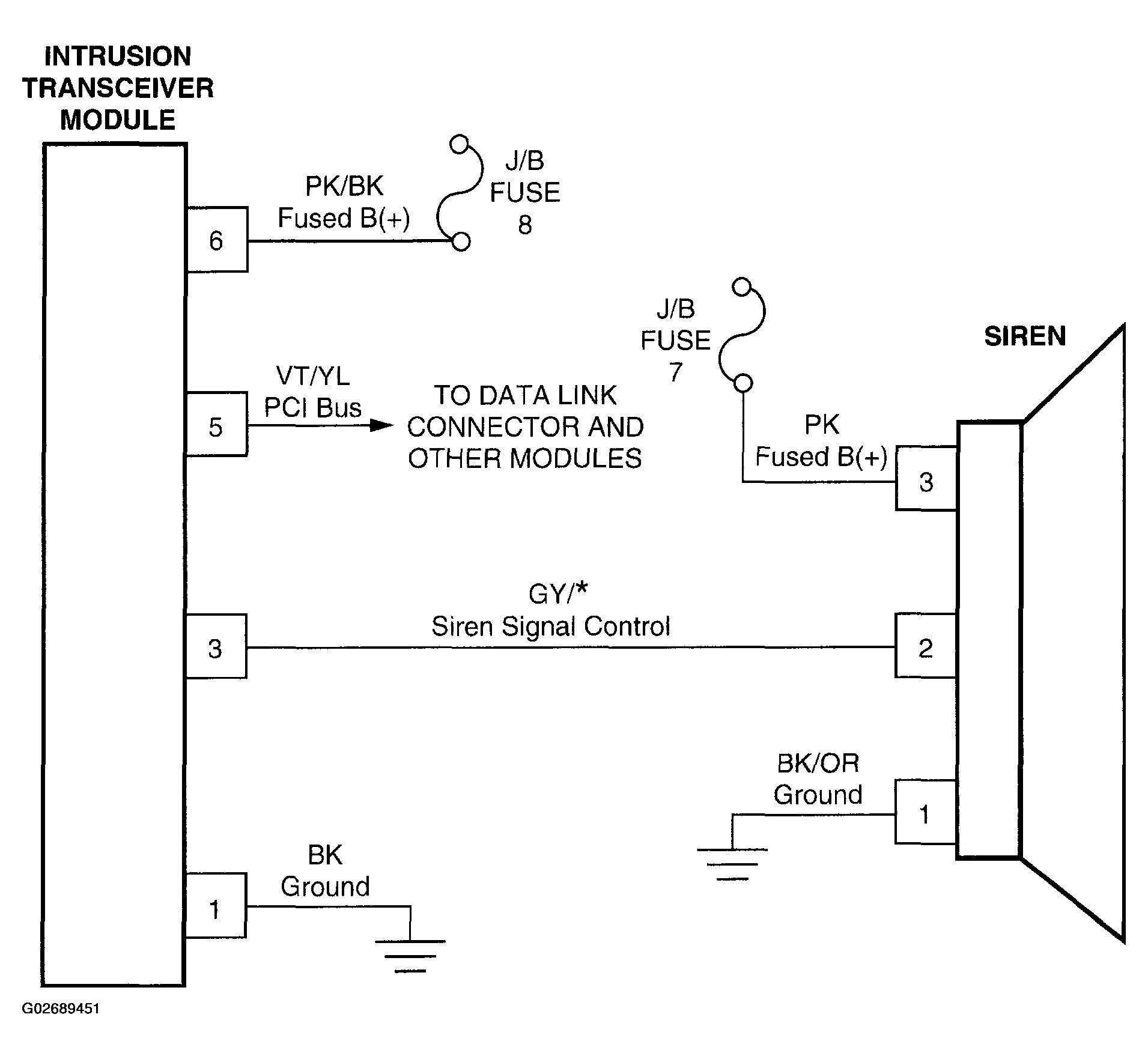

Fig 1: Identifying Intrusion Transceiver Module (Export Only) Schematic Diagram
G02689451Courtesy of DAIMLERCHRYSLER CORP.
