Component Locations

Fig.5 Intrusion Transceiver Module:

The Intrusion Transceiver Module (ITM) is located in the passenger compartment.

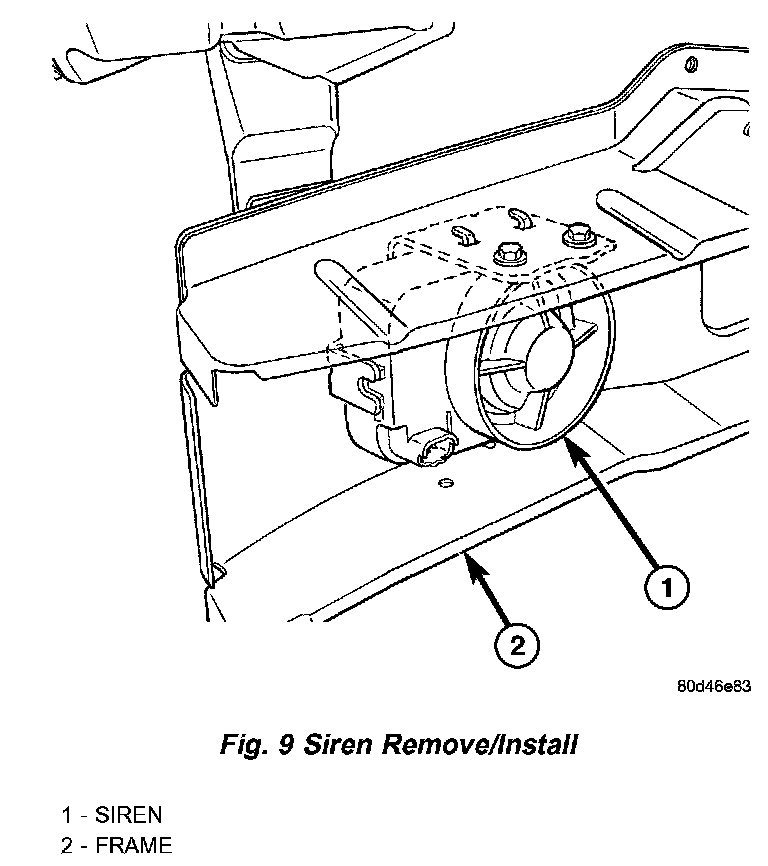

Fig.9 Siren Remove/Install:

The alarm siren module is located in the right front frame rail.







The SKIM is located in the steering column, below the ignition lock cylinder housing.
