Power Seat Switch

Driver Lumbar Switch (Midline/Premium):






Driver Power Seat Switch (Except Midline/Premium):

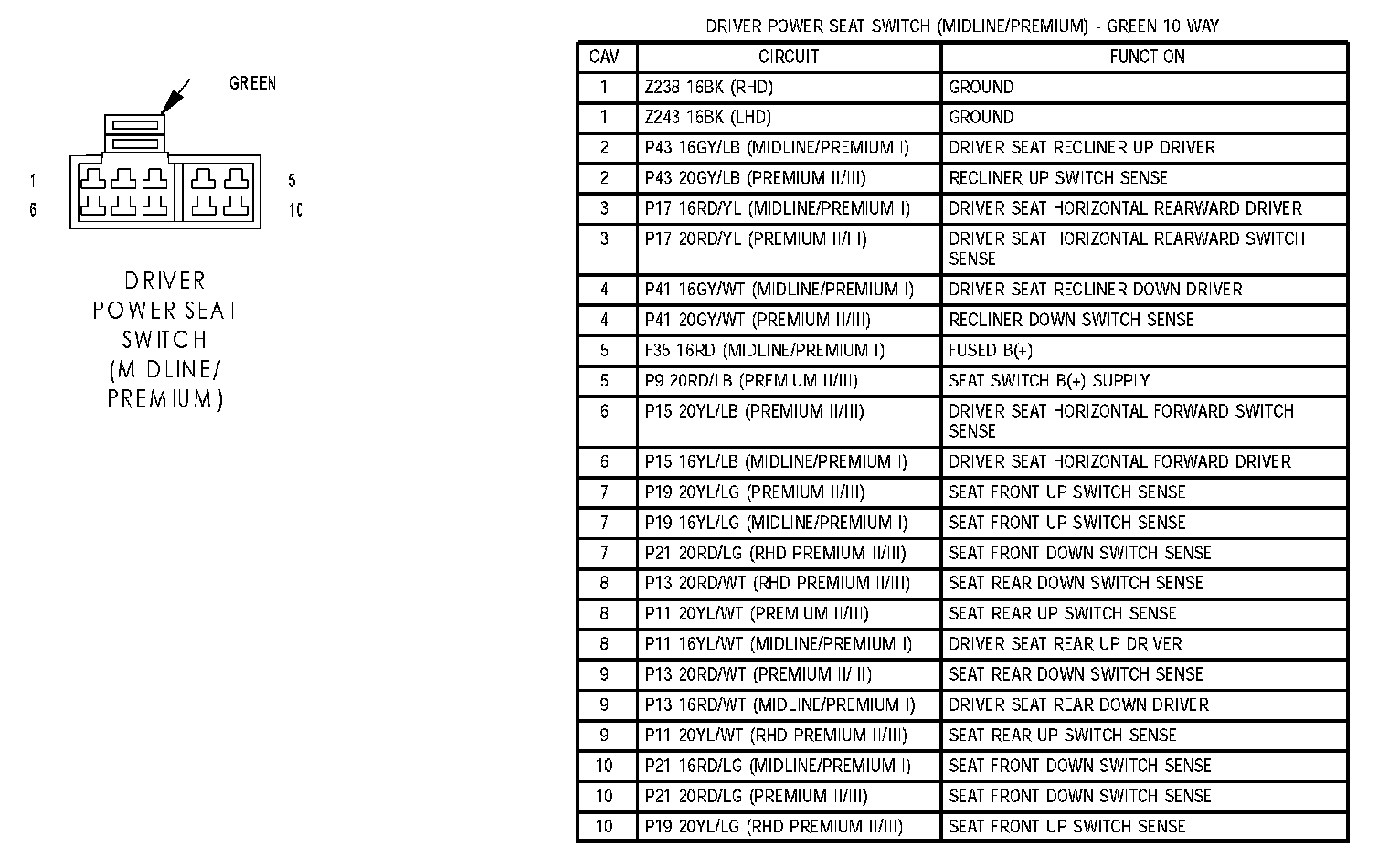

Driver Power Seat Switch (Midline/Premium):






Passenger Lumbar Switch (Midline/Premium):






Passenger Power Seat Switch (Except Midline/Premium):






Passenger Power Seat Switch (Midline/Premium):
