Receiver-Satellite C1 - 12 Way Connector End View

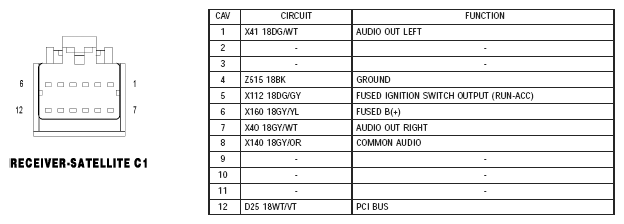

Fig 1: Receiver-Satellite C1 - 12 Way Connector End View
G04764104Courtesy of CHRYSLER GROUP, LLC
