*Brake Lamp Switch: Testing

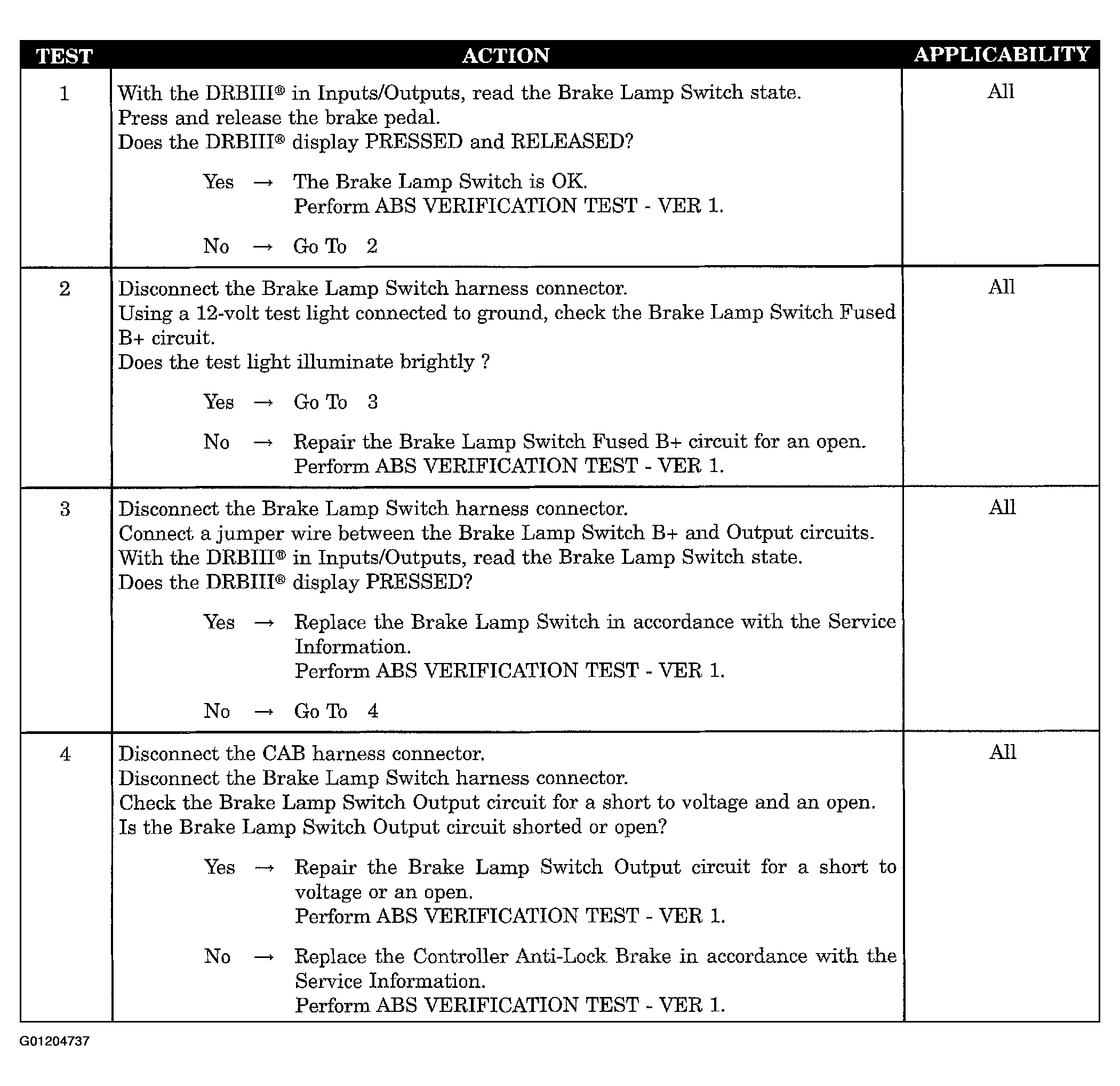

Fig 1: Testing: Brake Lamp Switch

G01204737

Courtesy of DAIMLERCHRYSLER CORP.
