Camshaft Position Sensor: Locations

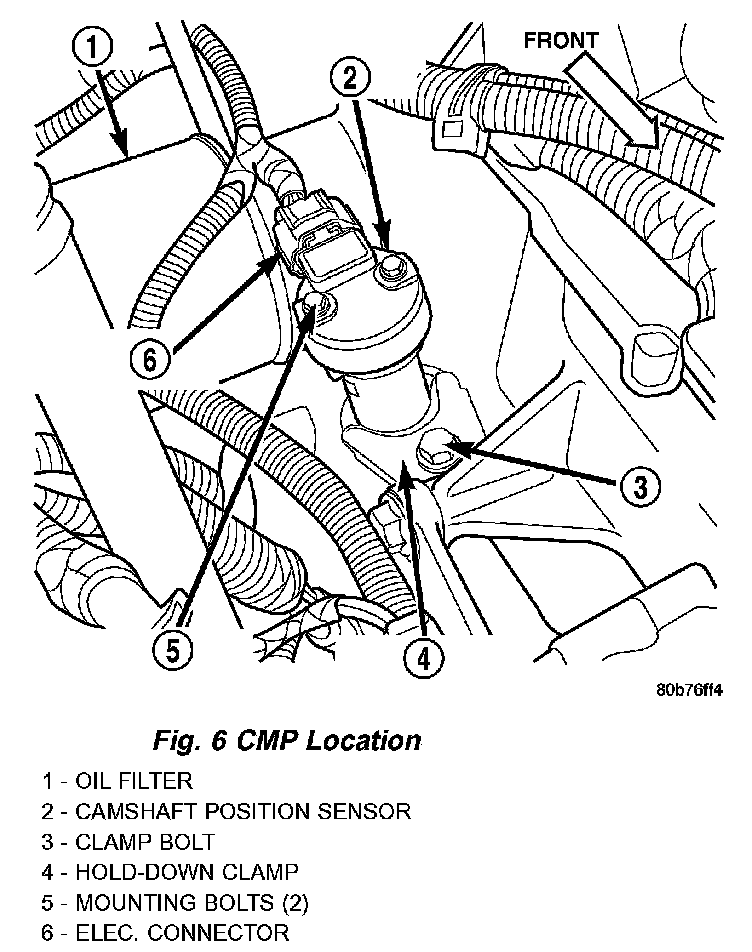

Fig.6 CMP Location - 4.0L Engine:

The Camshaft Position Sensor (CMP) on this engine is bolted to the top of the oil pump drive shaft assembly.
