Chime Sounds With Drivers Door Open and Key Removed From Ignition

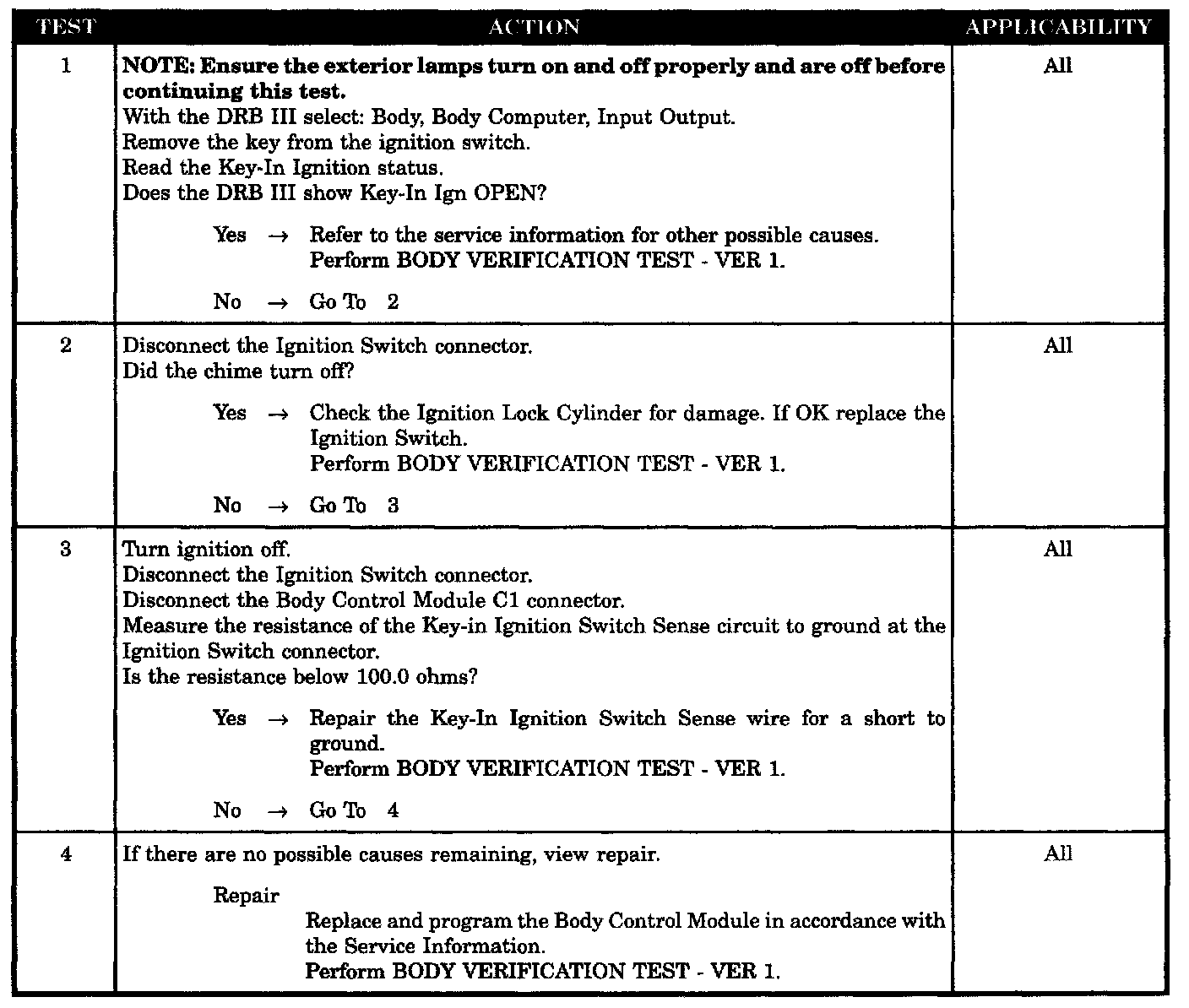

Tests 1 - 4:





SYMPTOM
CHIME SOUNDS WITH DRIVER DOOR OPEN KEY REMOVED

POSSIBLE CAUSES
- Key-in ignition switch status
- Key-in ignition switch shorted
- Key-in ignition switch sense shorted to ground
- Body control module
