Crankshaft Position Sensor: Locations

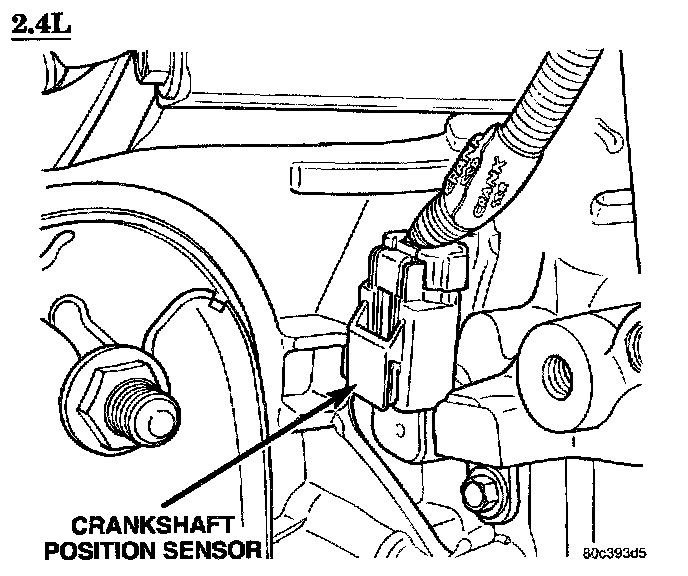

Fig.2 CKP Sensor Location - 2.4L:
2.4L:
The Crankshaft Position (CKP) sensor is mounted into the right front side of the cylinder block.
The Crankshaft Position (CKP) sensor is mounted into the right front side of the cylinder block.
