Powertrain Control Module C1 (2.4L) Connector End View

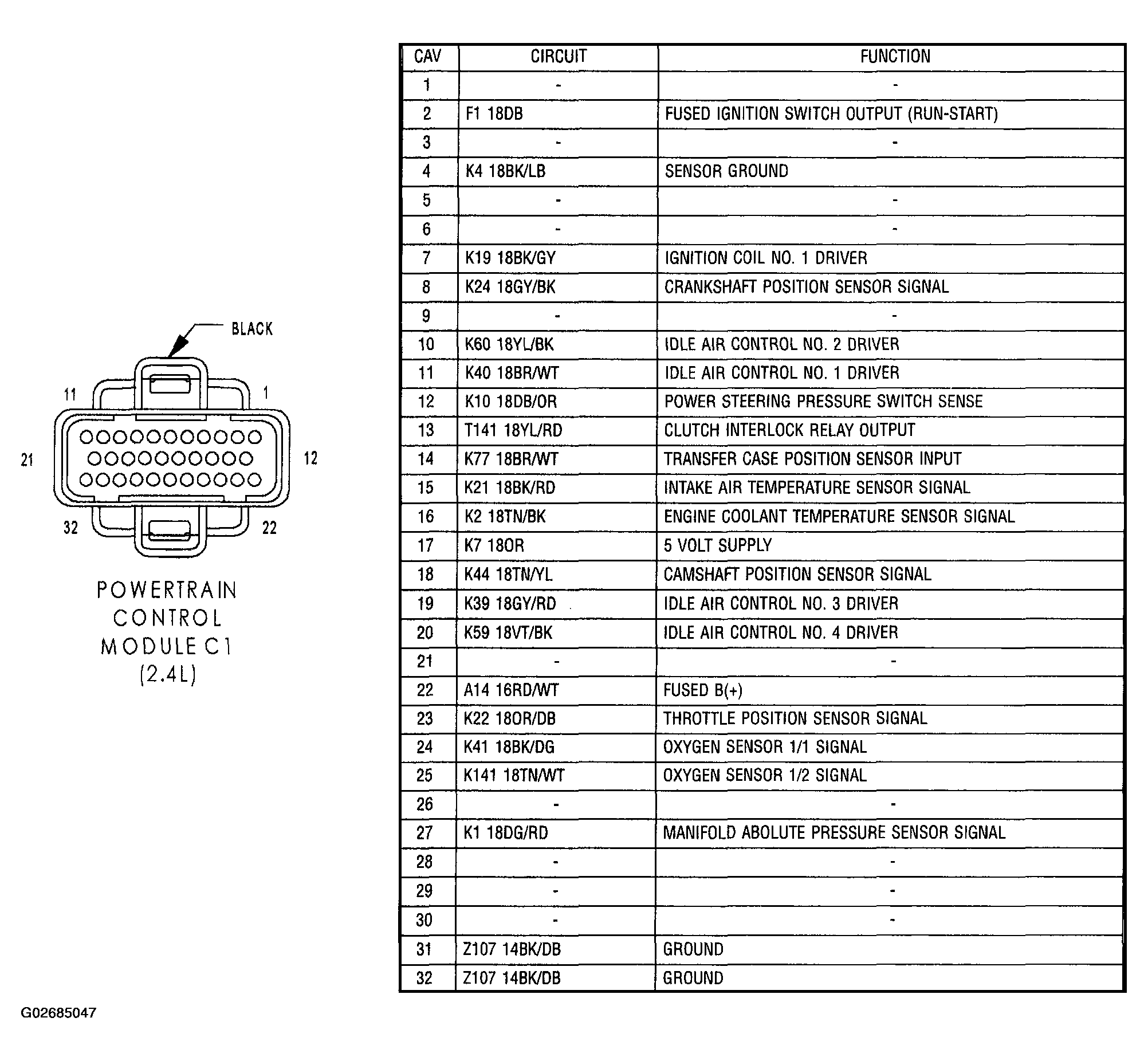

Fig 1: Powertrain Control Module C1 (2.4L) Connector End View
Courtesy of CHRYSLER GROUP, LLC
