Verification Tests

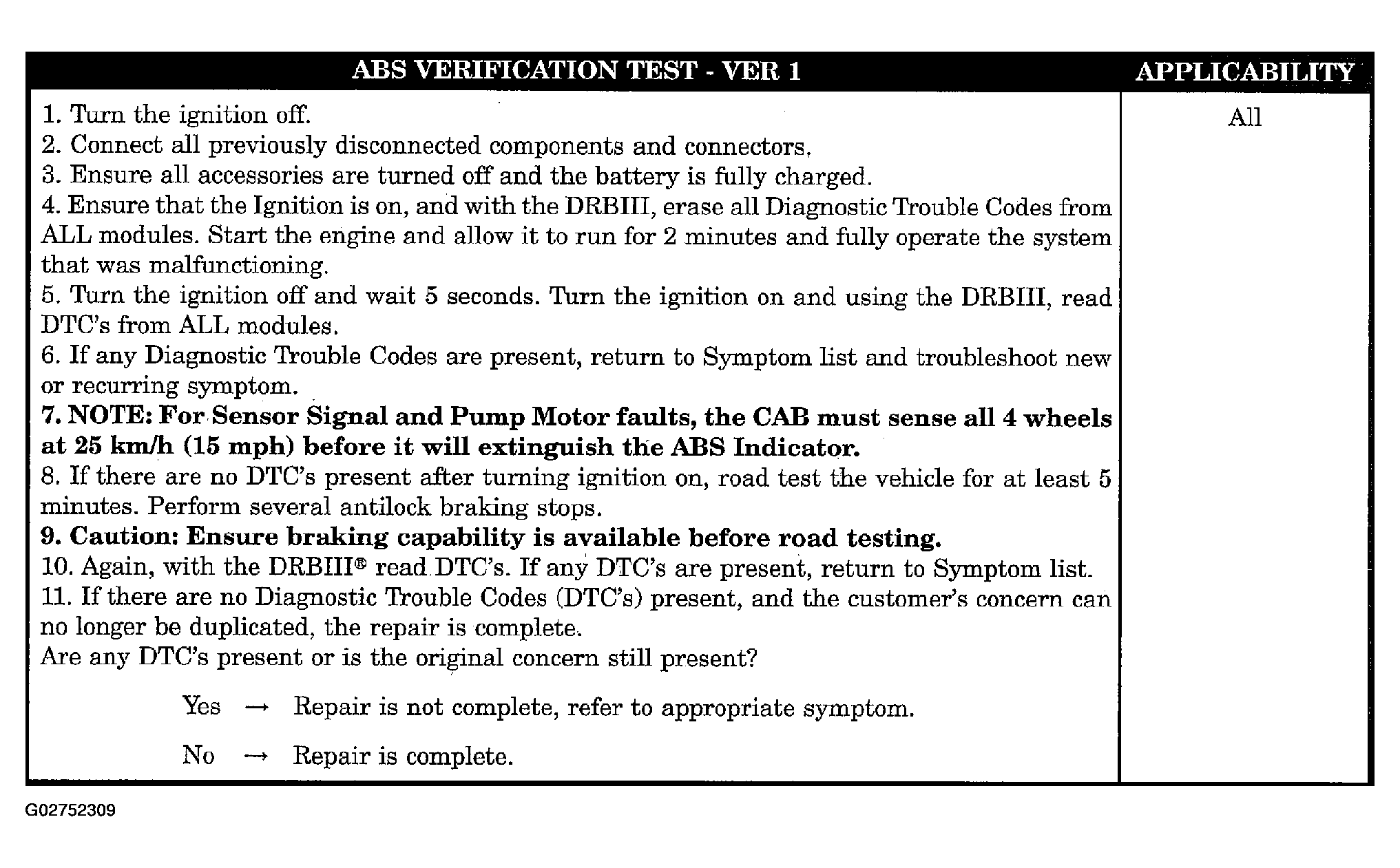

Fig 1: ABS Verification Test- VER 1
G02752309Courtesy of DAIMLERCHRYSLER CORP.

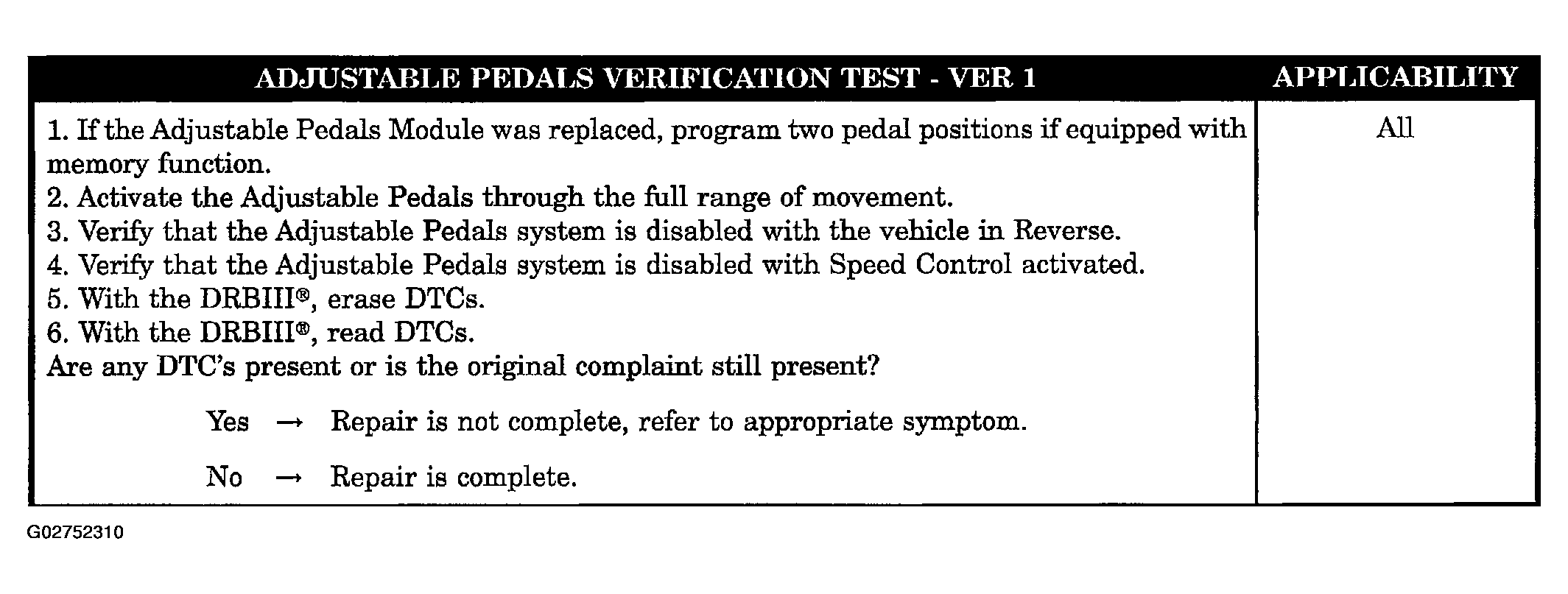

Fig 2: Adjustable Pedals Verification Test- VER 1
G02752310Courtesy of DAIMLERCHRYSLER CORP.
