Adjustable Pedals System

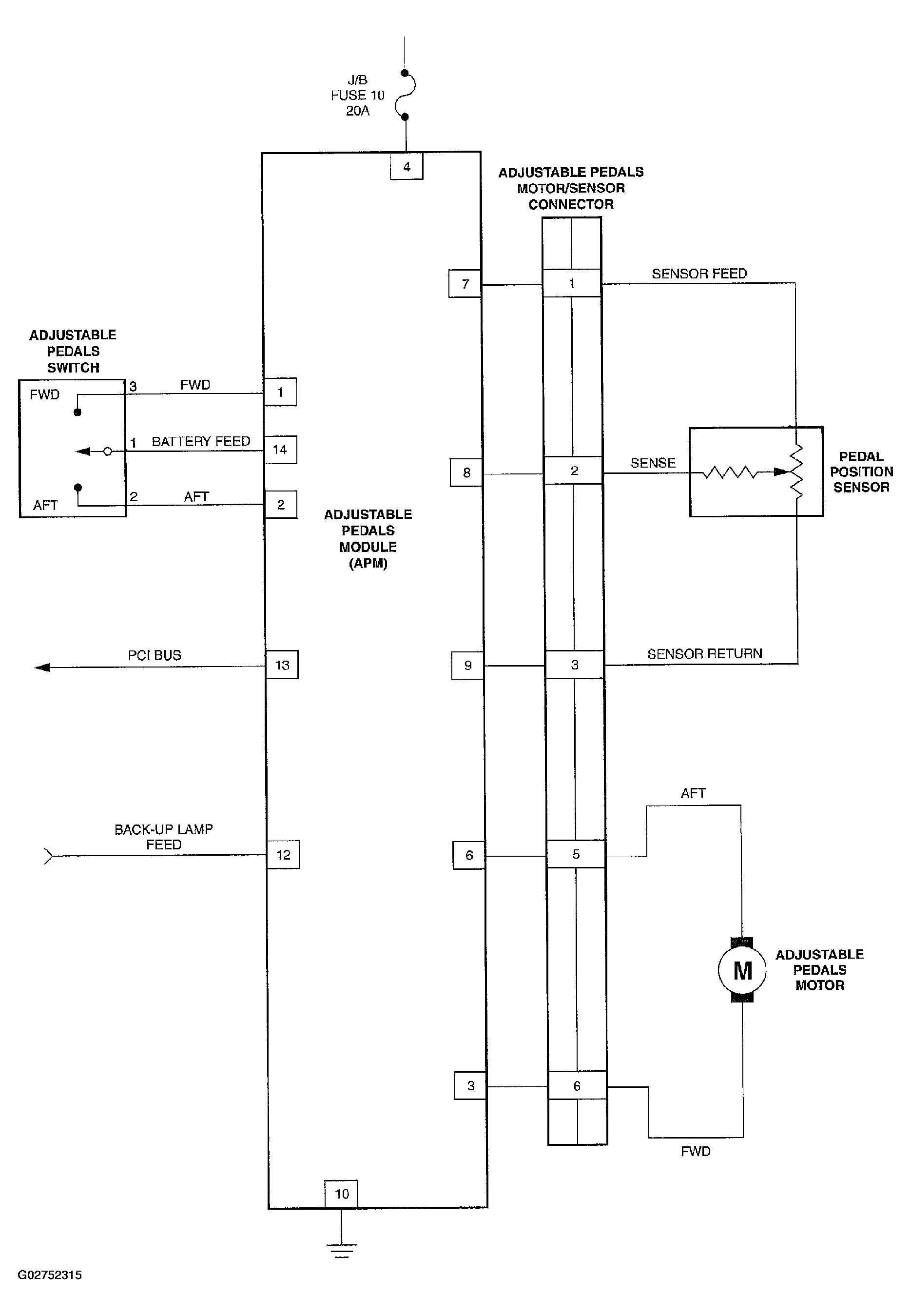

Fig 1: Adjustable Pedals System Schematic
Courtesy of DAIMLERCHRYSLER CORP.
