Anti-Lock Brake System Components: G-Switch: Removal
Fold the rear seat bottom assembly up for access to the switch.
Lift up the carpeting and disconnect the switch harness (Fig 1
).
Remove the switch mounting bolts and remove the switch

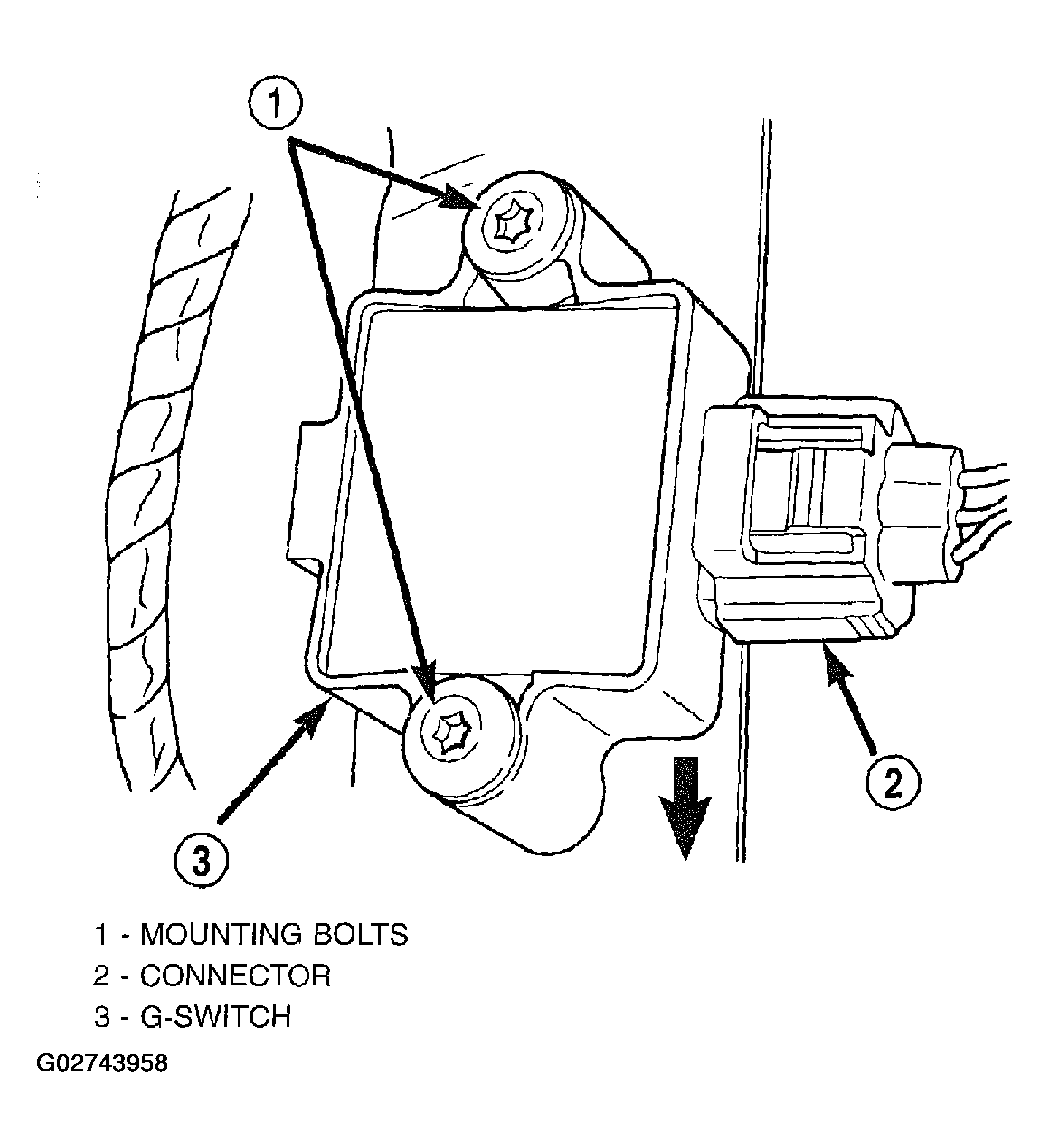

Fig 1: Identifying G-Switch Mounting And Harness Connector
