Front Wheel Speed Sensor: Removal
- Raise and support the vehicle.

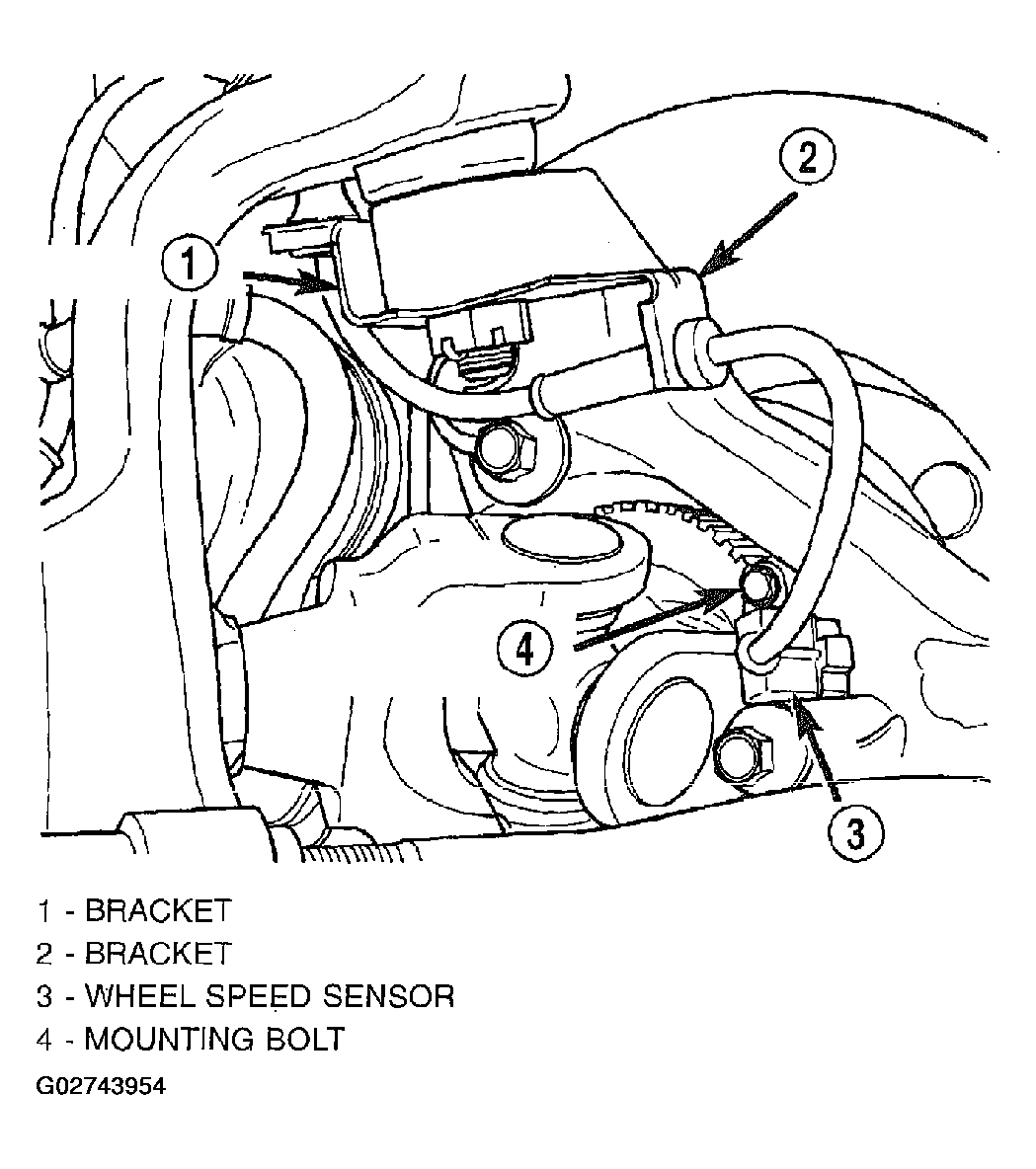

- Remove the front wheel sensor mounting bolt (Fig 1
).
Courtesy of DAIMLERCHRYSLER CORP.
- Remove the sensor from the steering knuckle.
- Disengage the sensor wire from the brackets (Fig 1
) on the steering knuckle.

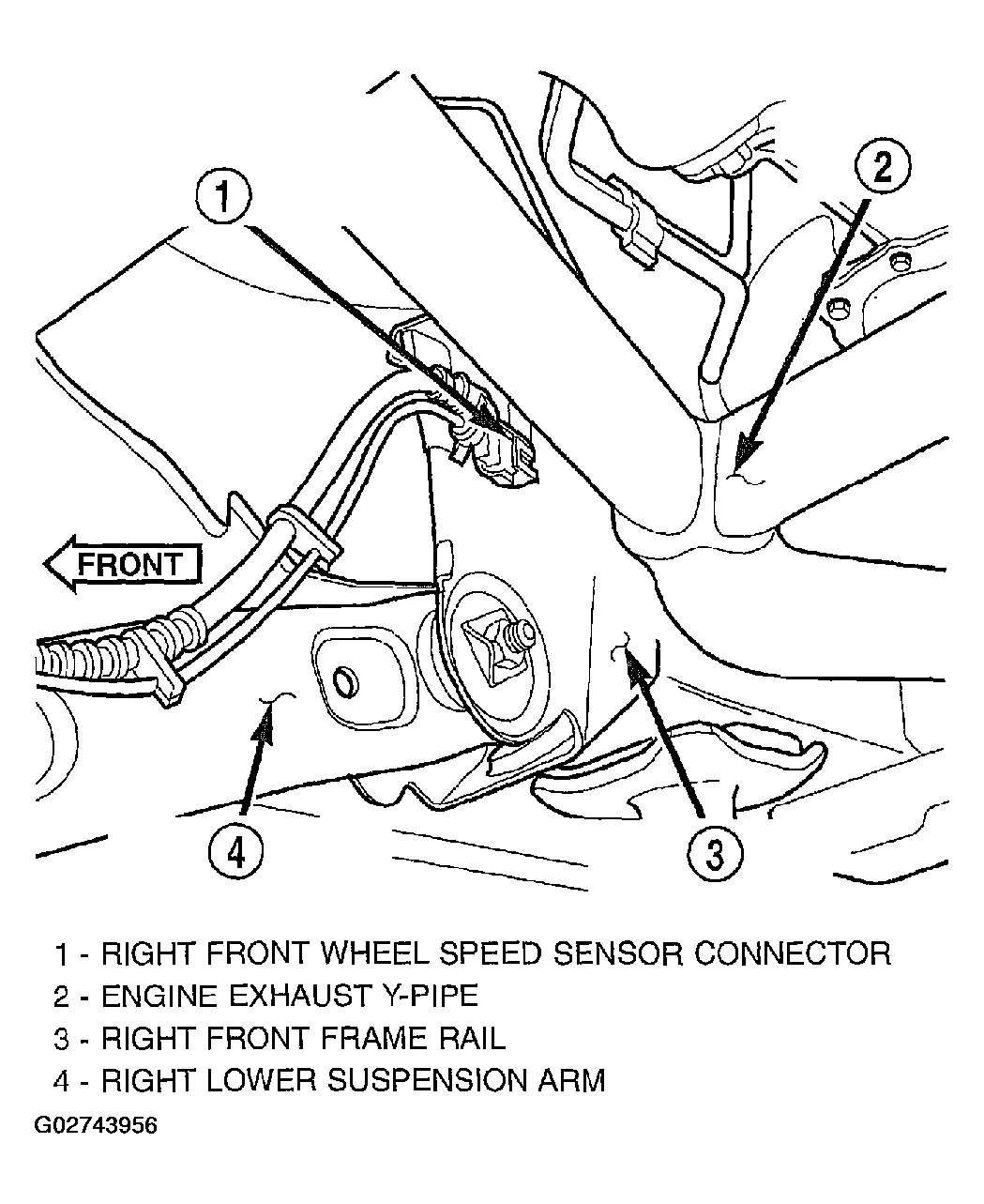

- Disconnect the sensor from the sensor harness (Fig 2

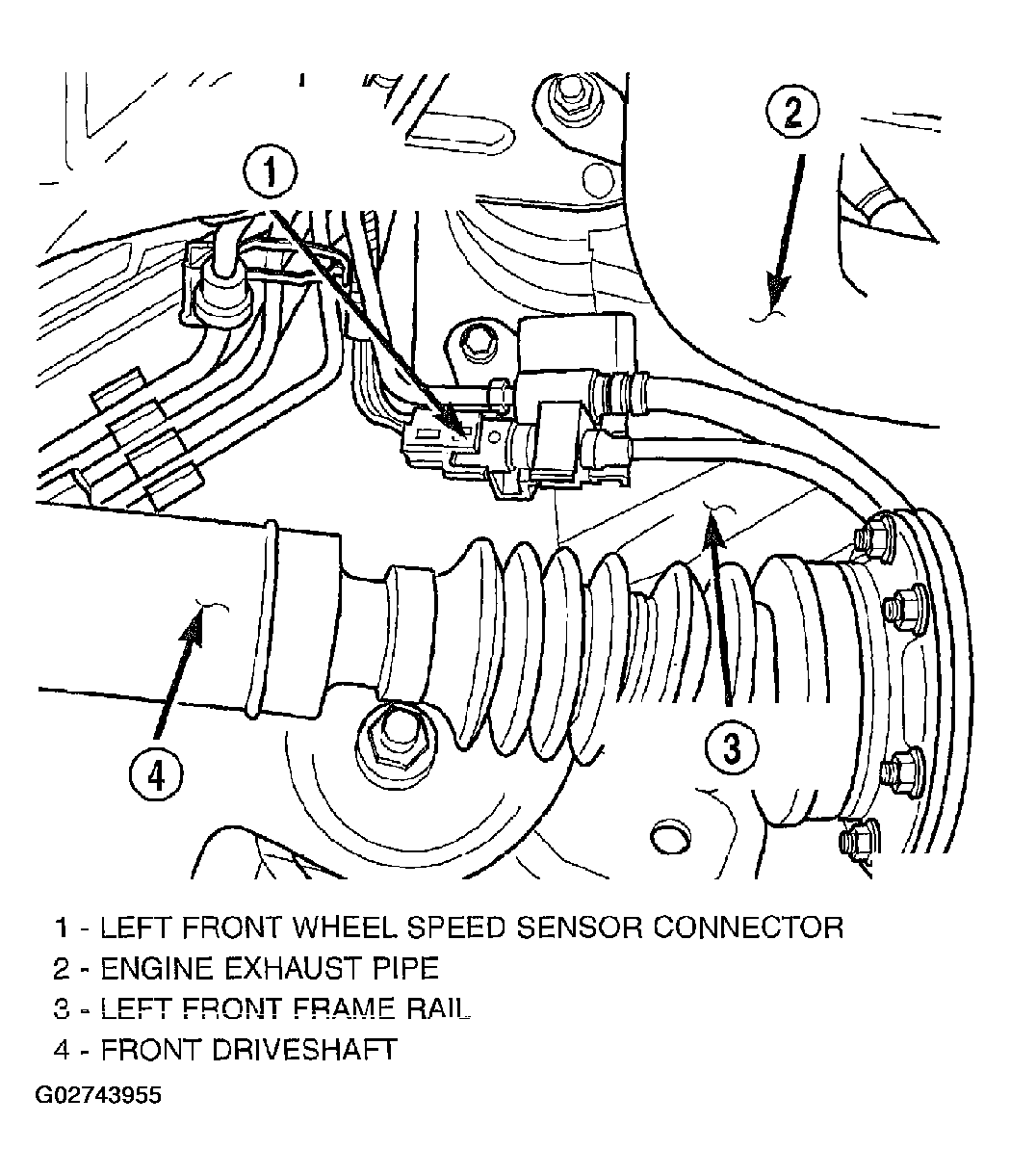

) and (Fig 3
).
- Remove the sensor and wire.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
