Removal & Installation

Transmission Control Module is located at right rear of engine compartment. See Fig 1 . Turn ignition off and disconnect negative battery cable. Remove bolts attaching TCM to bracket. Disconnect electrical connectors. Remove TCM. To install, reverse removal procedure.

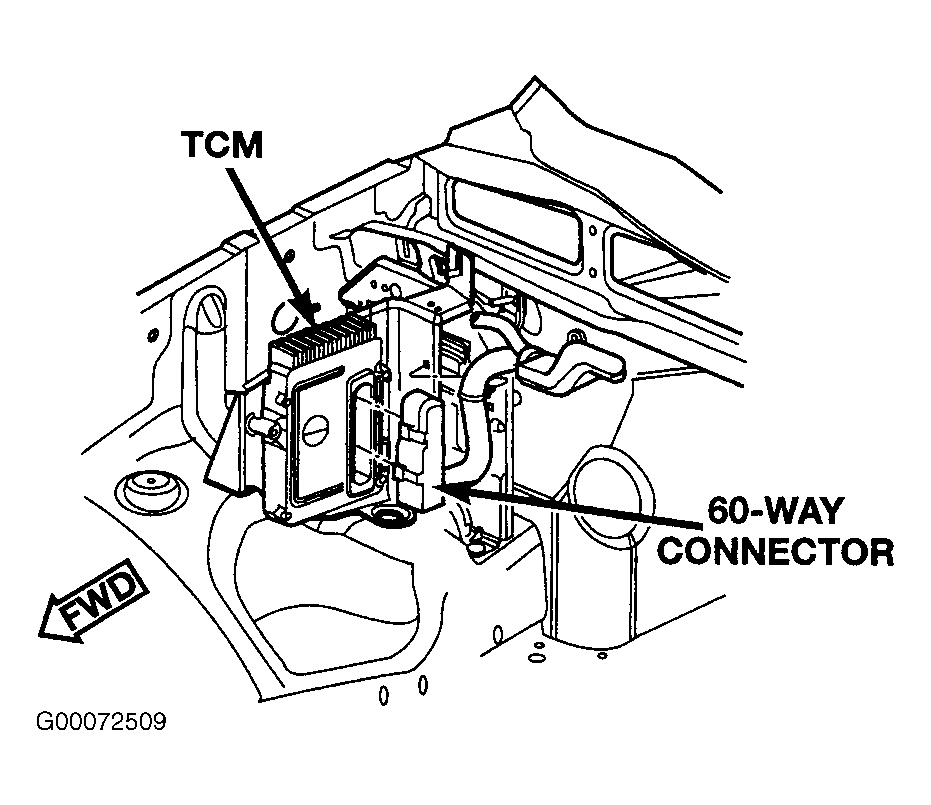

Fig 1: Locating TCM (Jeep Grand Cherokee)

Courtesy of DAIMLERCHRYSLER CORPORATION
