Adjustable Pedals Module: Removal

Disconnect the negative battery cable.
Remove the cluster.
Remove the steering column opening cover.
Remove the adjustable pedal motor for accessibility.
Remove the two mounting clips from the module. See Fig 1 .
Disconnect the electrical connector.
Remove the adjustable pedal module.

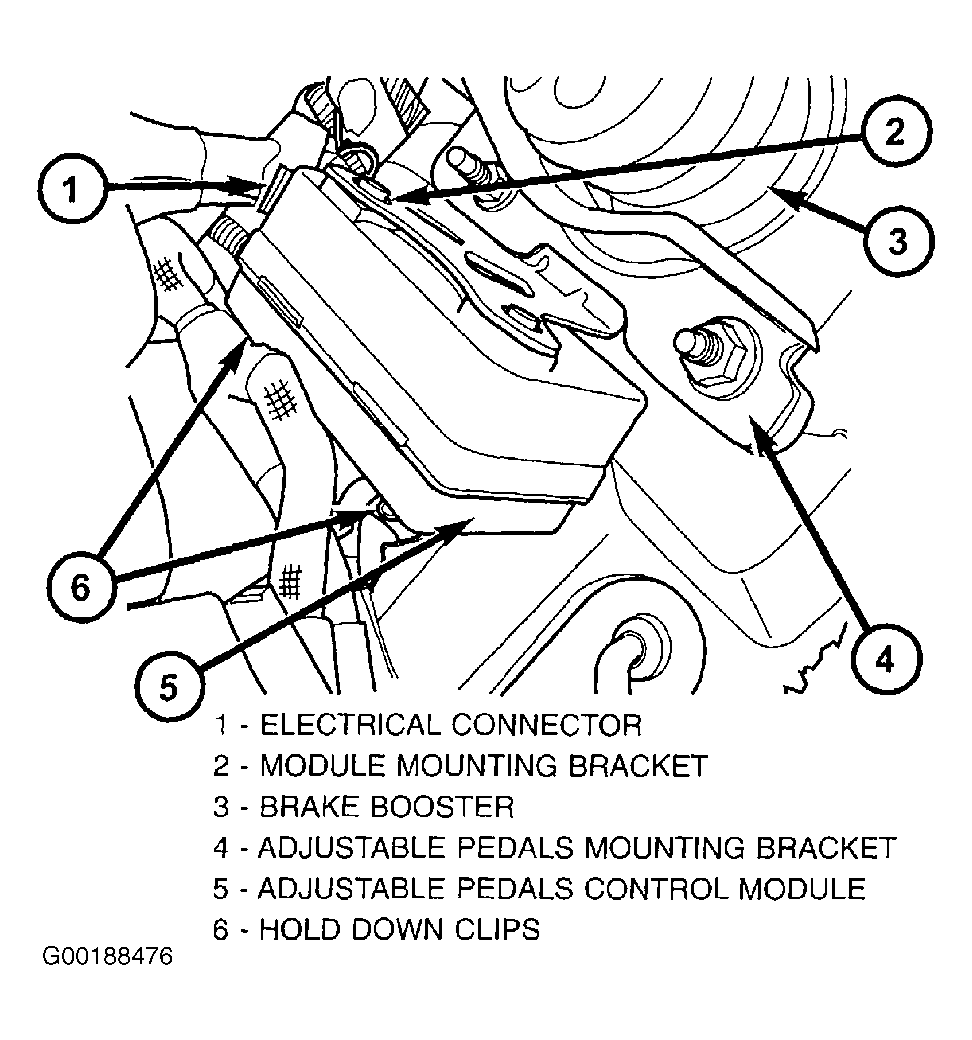

Fig 1: Removing & Installing Adjustable Pedals Module

Courtesy of DAIMLERCHRYSLER CORPORATION
