Heated Glass Element Relay
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Heated Glass Element Relay

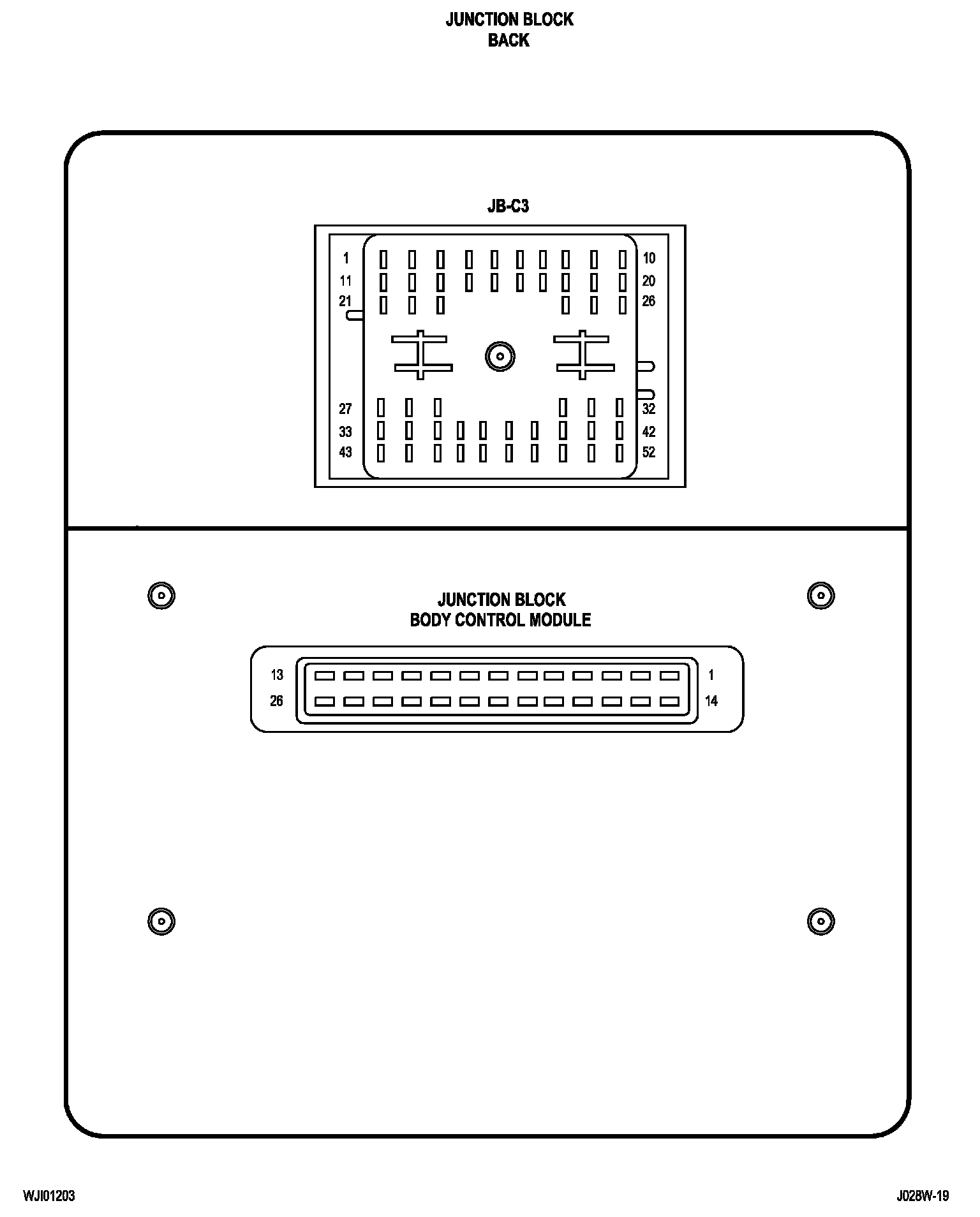

8w-12-2:

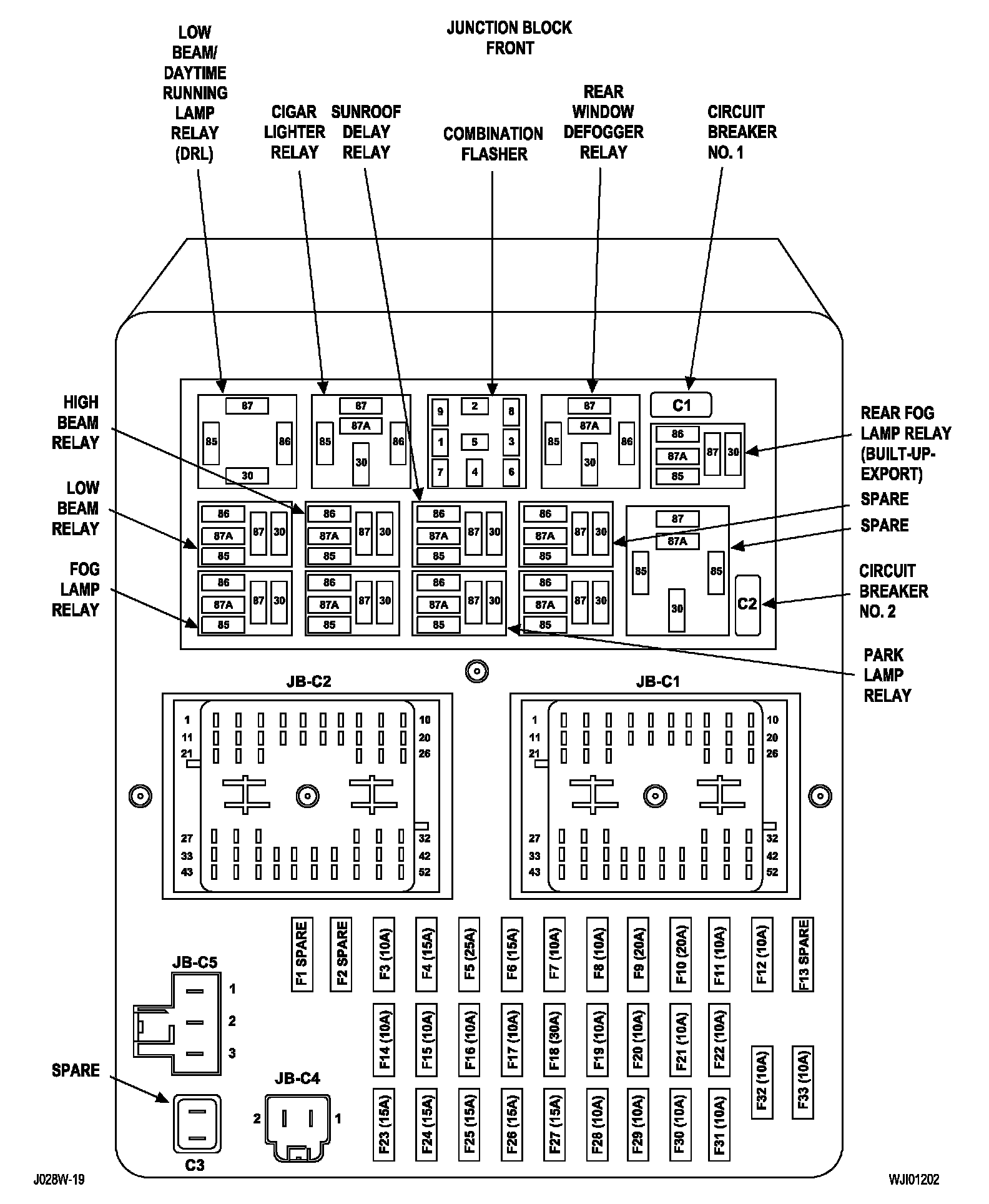

8w-12-3:

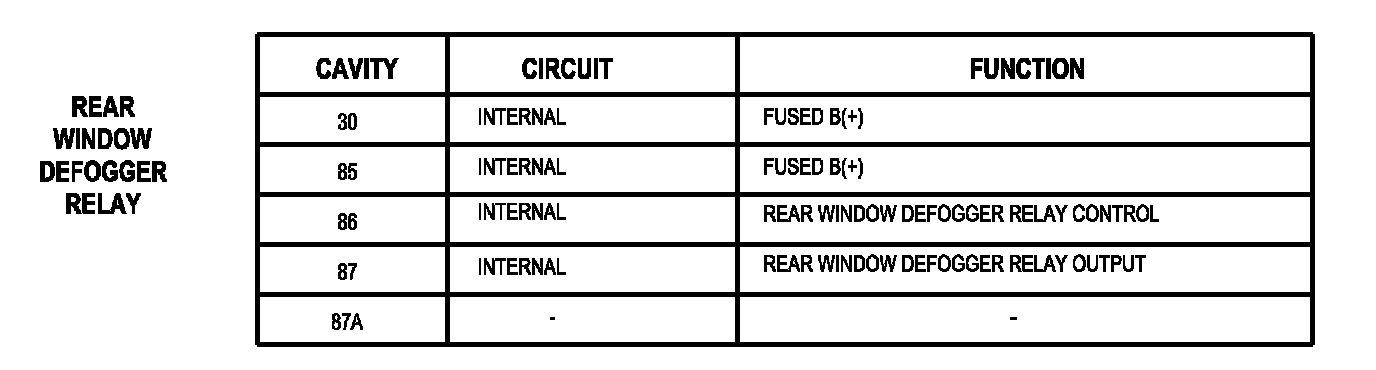

Rear Window Defogger Relay:
