Procedures

REMOVAL
1. Remove front door glass.

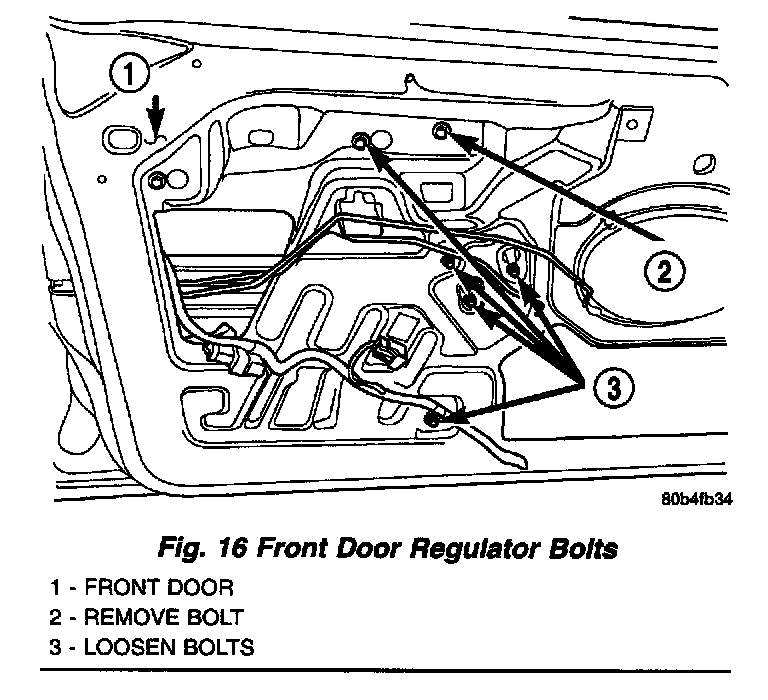

Front Door Regulator Bolts:

2. Loosen bolts attaching regulator to inner door panel.

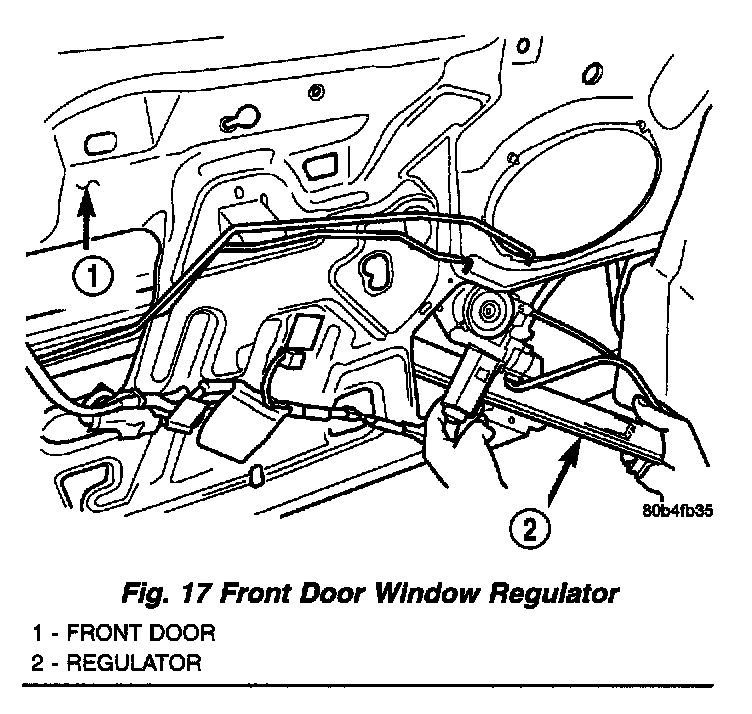

Front Door Window Regulator:

3. Remove bolt attaching regulator to inner door panel.
4. Lift regulator upward to disengage bolts from door inner panel.
5. Disengage power window regulator harness connector, if equipped.
6. Remove regulator through access hole in door.

INSTALLATION
1. Position regulator in door through access hole.
2. Engage power window regulator harness connector, if equipped.
3. Lift regulator upward and engage bolts in door inner panel key hole slots.
4. Install bolt attaching regulator to inner door panel.
5. Tighten bolts attaching regulator to inner door panel.
6. Install front door glass.
