Malfunction Indicator Lamp: Locations

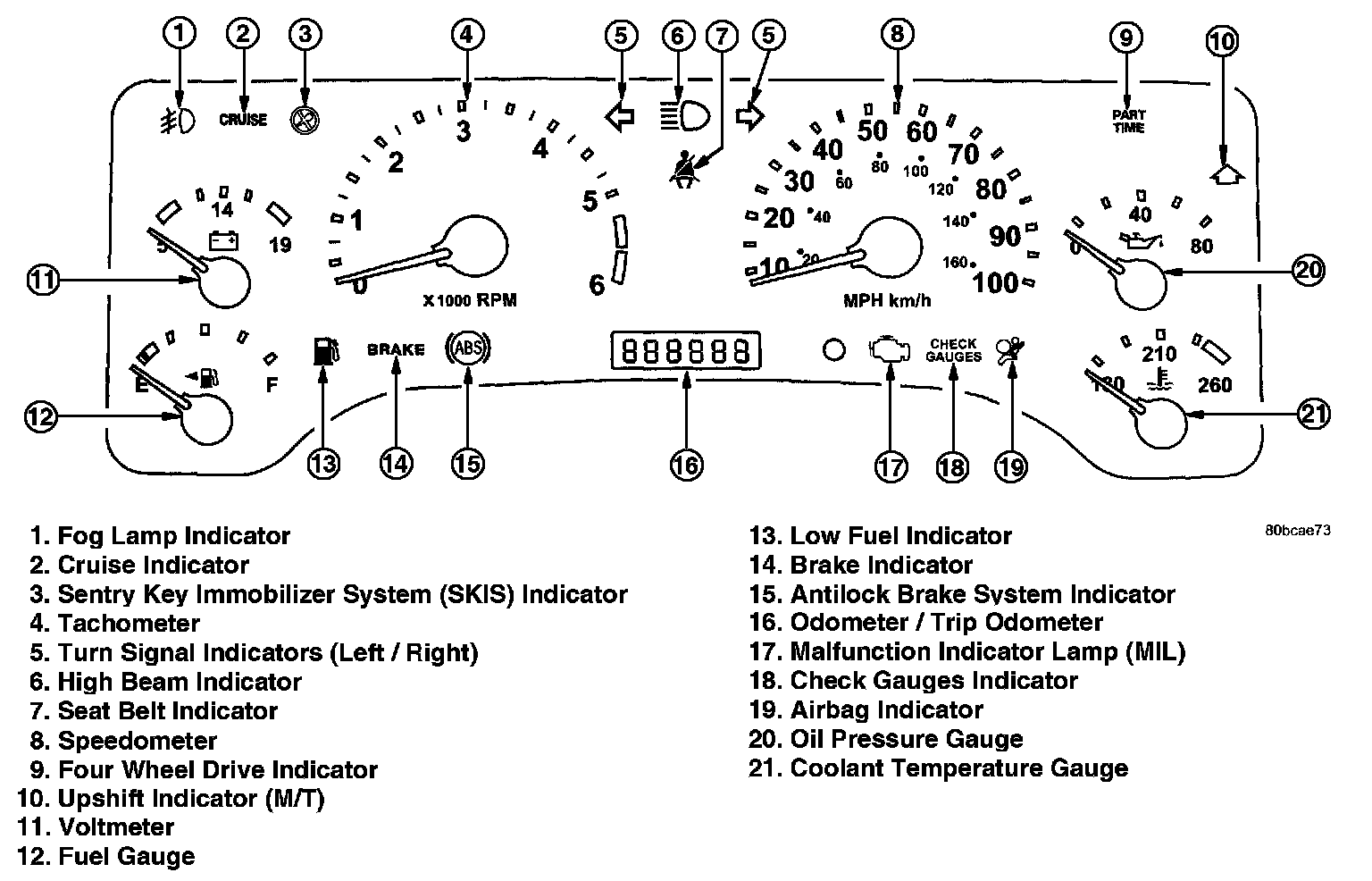

Electro-Mechanical Instrument Cluster (EMIC):

The MIL is located near the lower edge of the instrument cluster overlay, to the right of the odometer/trip odometer Vacuum-Fluorescent Display (VFD).
