Chime Sounds With Driver Seat Belt Fastened

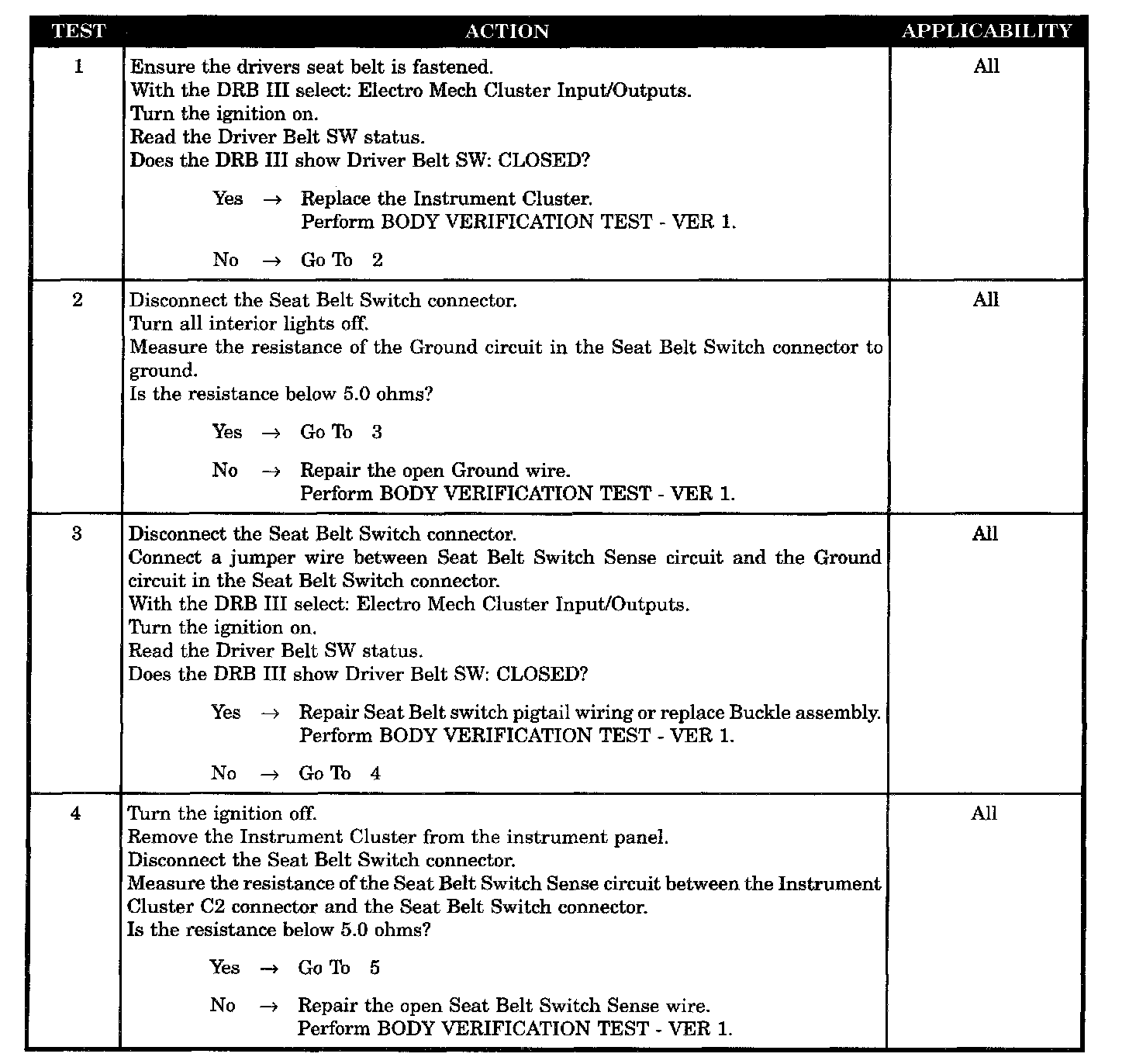

Tests 1 - 4:




Test 5:




SYMPTOM
CHIME SOUNDS WITH DRIVER SEAT BELT FASTENED

POSSIBLE CAUSES
- Seat belt switch status wrong
- Seat belt switch open
- Ground wire open
- Seat belt switch sense open
- Instrument cluster - seat belt sense open
