Checking Speed Control Resume/Accel Switch

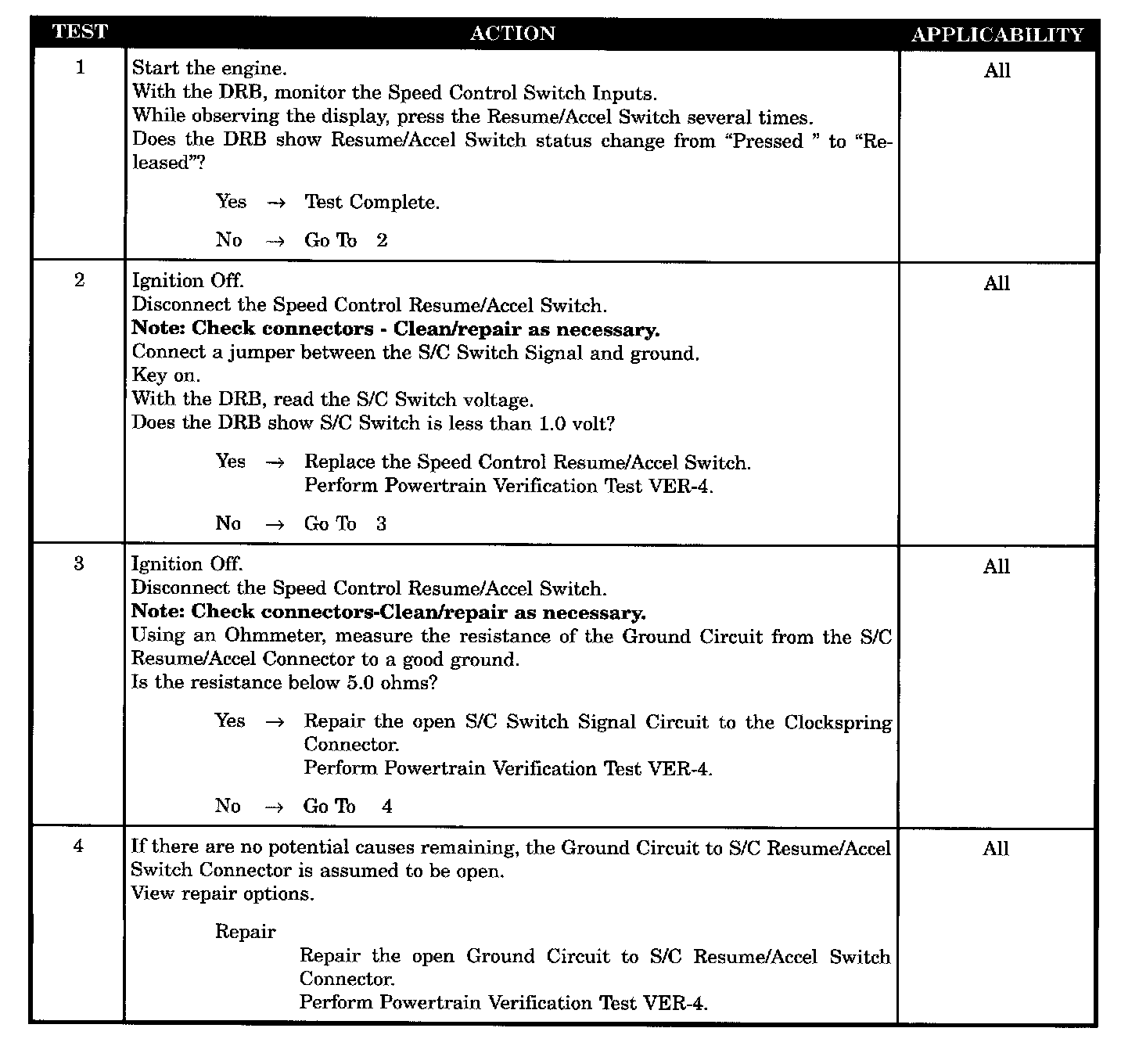

Tests 1 - 4:
SYMPTOM
CHECKING SPEED CONTROL RESUME/ACCEL SWITCH
POSSIBLE CAUSES
-
Ground circuit open
-
RESUME/ACCEL switch
-
S/C switch signal circuit open
