Checking the PCM Power and Ground Circuits

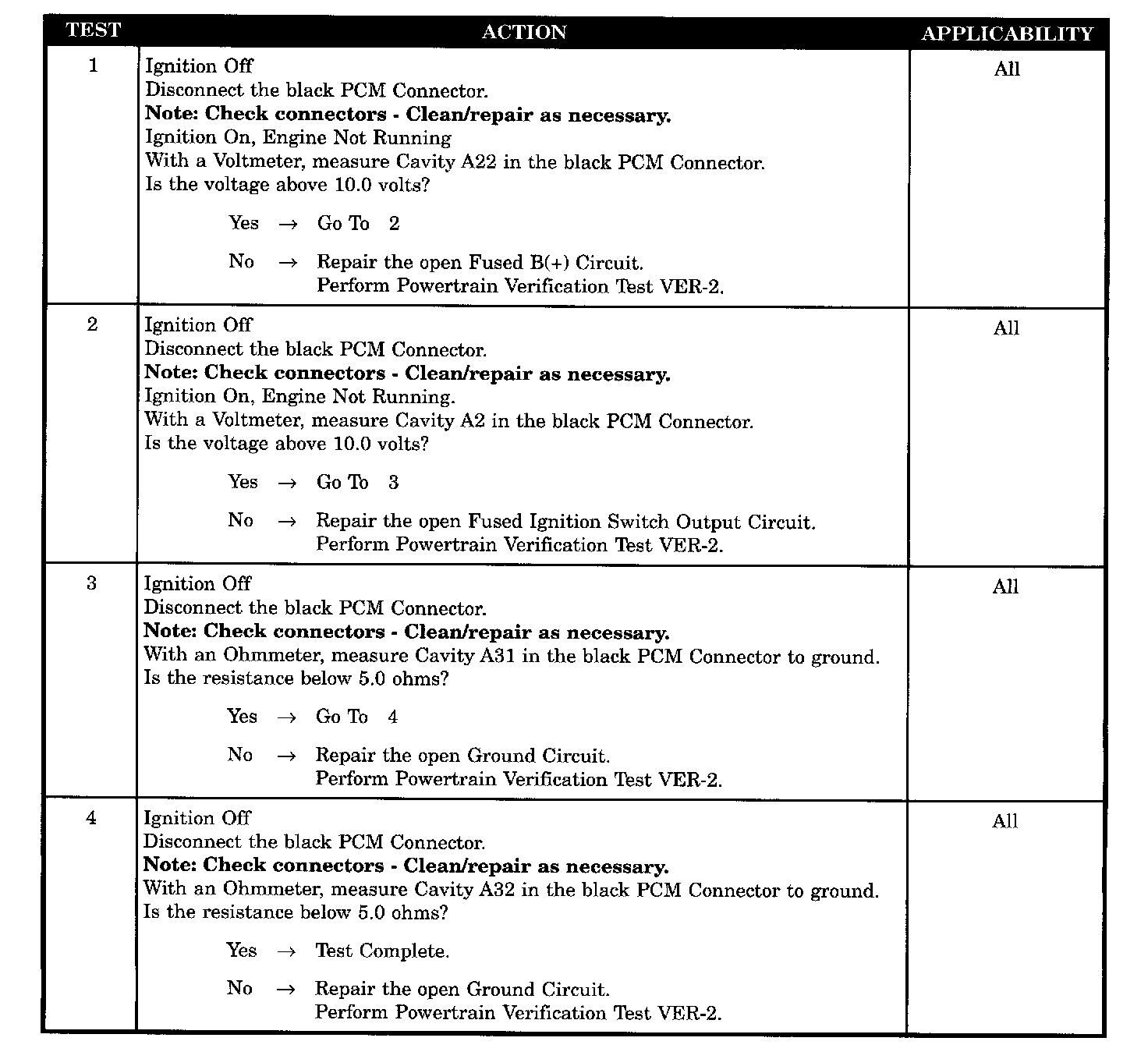

Tests 1 - 4:

SYMPTOM
CHECKING THE PCM POWER AND GROUND CIRCUITS

POSSIBLE CAUSES
- Fused B(+) circuit open
- Fused ignition switch output circuit open
- PCM ground circuit open at cavity A31
- PCM ground circuit open at cavity A32
