Checking Park/Neutral Position Switch Operation

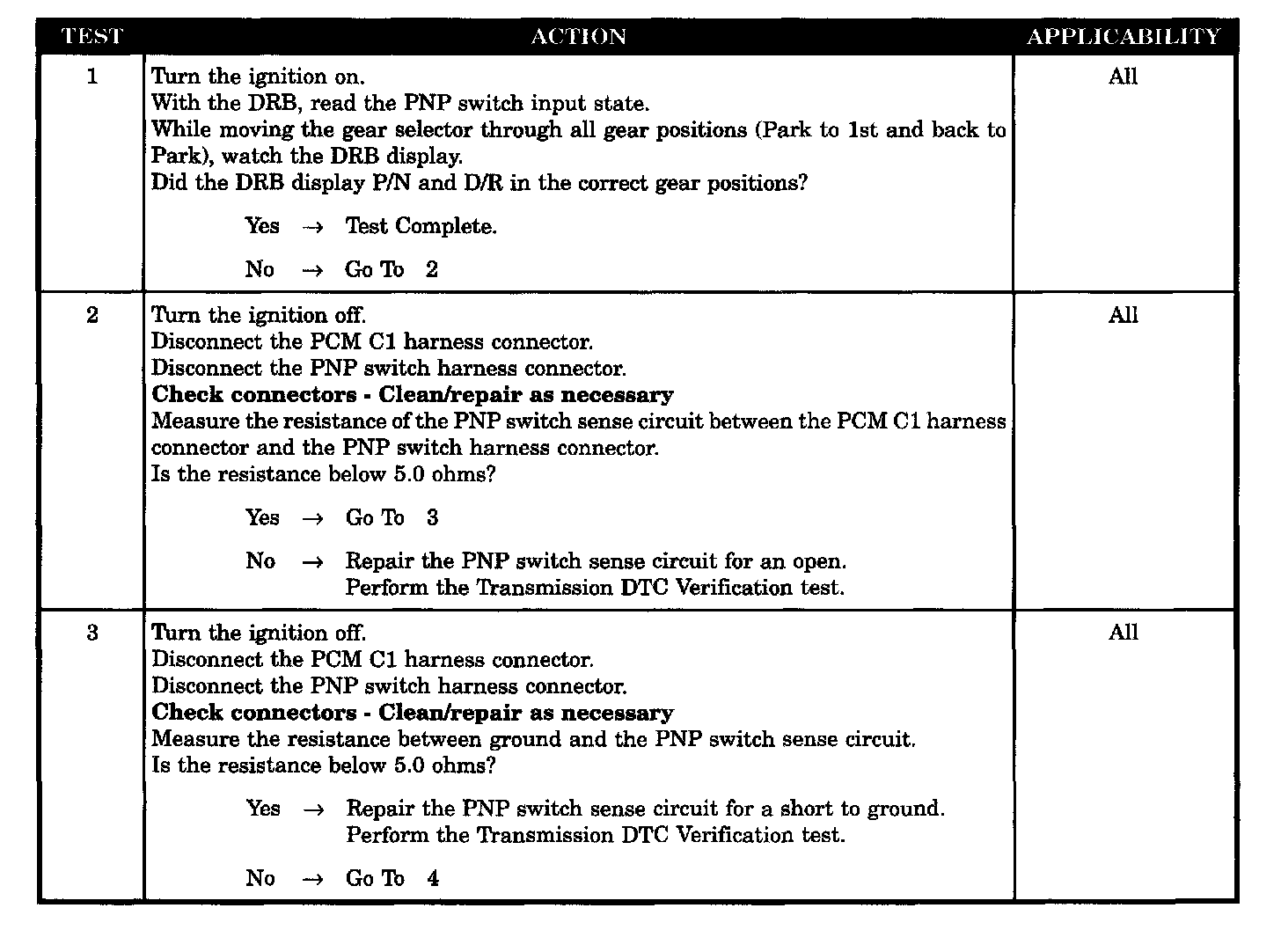

Tests 1 - 3:

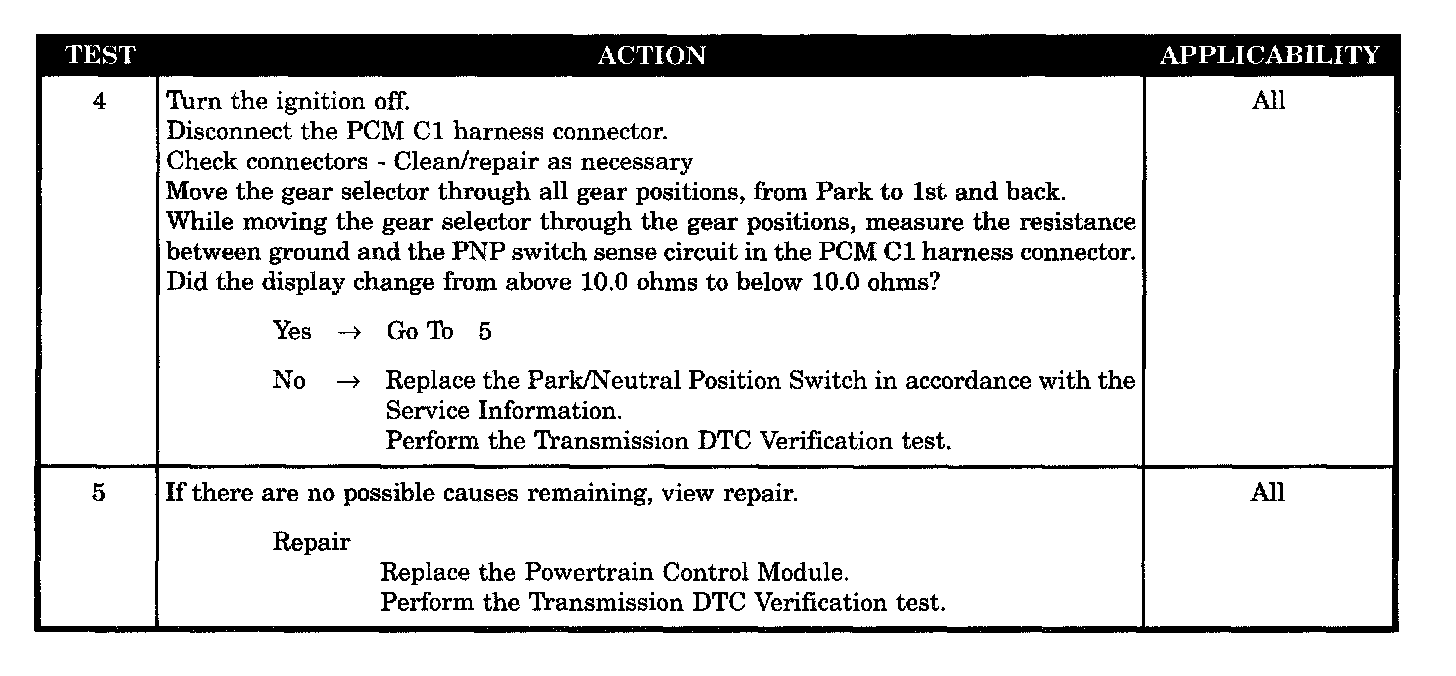

Tests 4 - 5:





SYMPTOM
CHECKING PARK/NEUTRAL SWITCH OPERATION

POSSIBLE CAUSES
- [1][2]Park/neutral position switch
- Park/neutral switch sense circuit open
- Park/neutral switch sense circuit shorted to ground
- Powertrain control module
