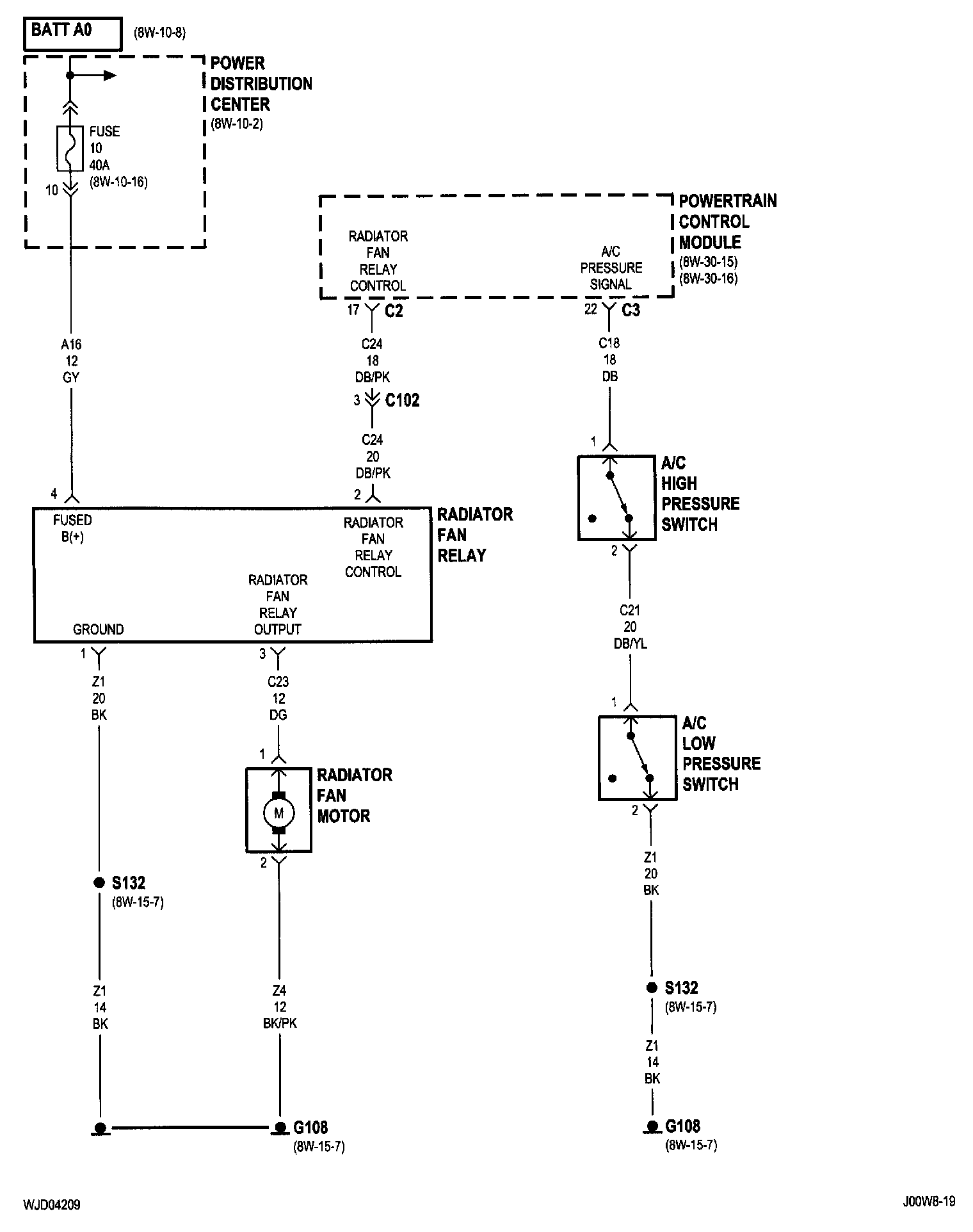

Radiator Cooling Fan Control Module



8w-42-9:






For additional wiring diagrams, refer to Diagrams/Electrical. Electrical Diagrams
